Mini PC DataBase

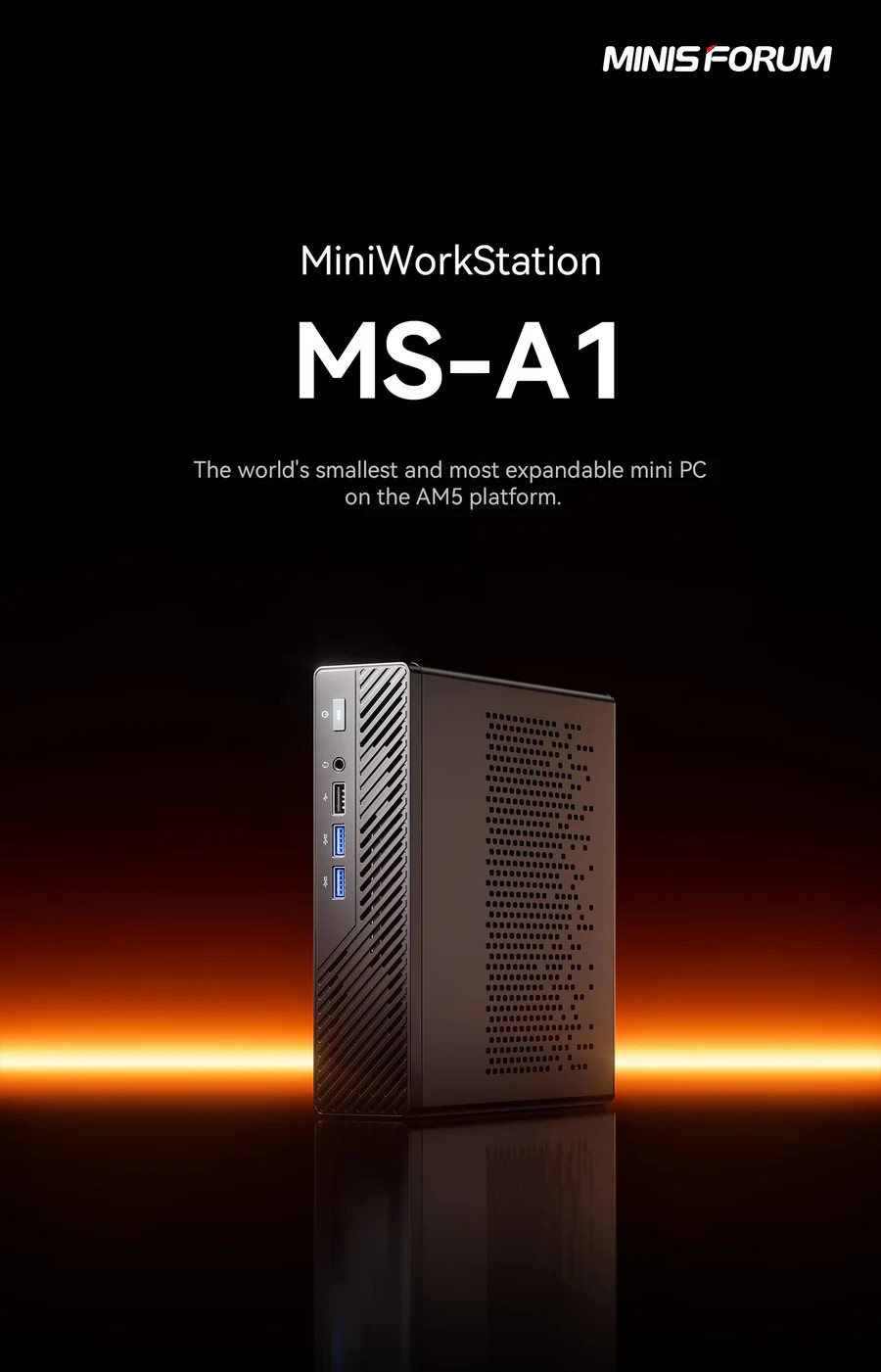

Minisforum MS-A1 9600X

Minisforum

MS-A1 9600X

CPU r5 9600X

GPU Radeon Graphics (Ryzen 9000)

Max RAM 96GB

Drives 4

From $547

Seller Amazon

The Minisforum MS-A1 9600X is a mini PC powered by the AMD r5 9600X (Zen 5 gen). It features 6 performance cores and 12 threads and a AM5 socket. Graphics are handled by the integrated AMD Radeon Graphics (Ryzen 9000). Supports up to 96GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 4 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 189 × 187 × 48mm (1.70L). Uses a Brick PSU (240W).

CPU & Performance

CPUr5 9600X

GenerationZen 5

P-Cores6

Threads12

Single-core95

Multi-core42

SocketAM5

GPU

GPURadeon Graphics (Ryzen 9000)

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM96GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots4

Gen4 x42

Gen3 x41

SD cardNo

Ports & Connectivity

HDMI 2.11

DP 1.41

USB4 40Gbps1

OCuLinkYes

Max displays3

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions189 × 187 × 48 mm

Volume1.7L

Fan size90mm

Warranty2 yr

Power

PSU typeBrick

PSU240W

Discover More

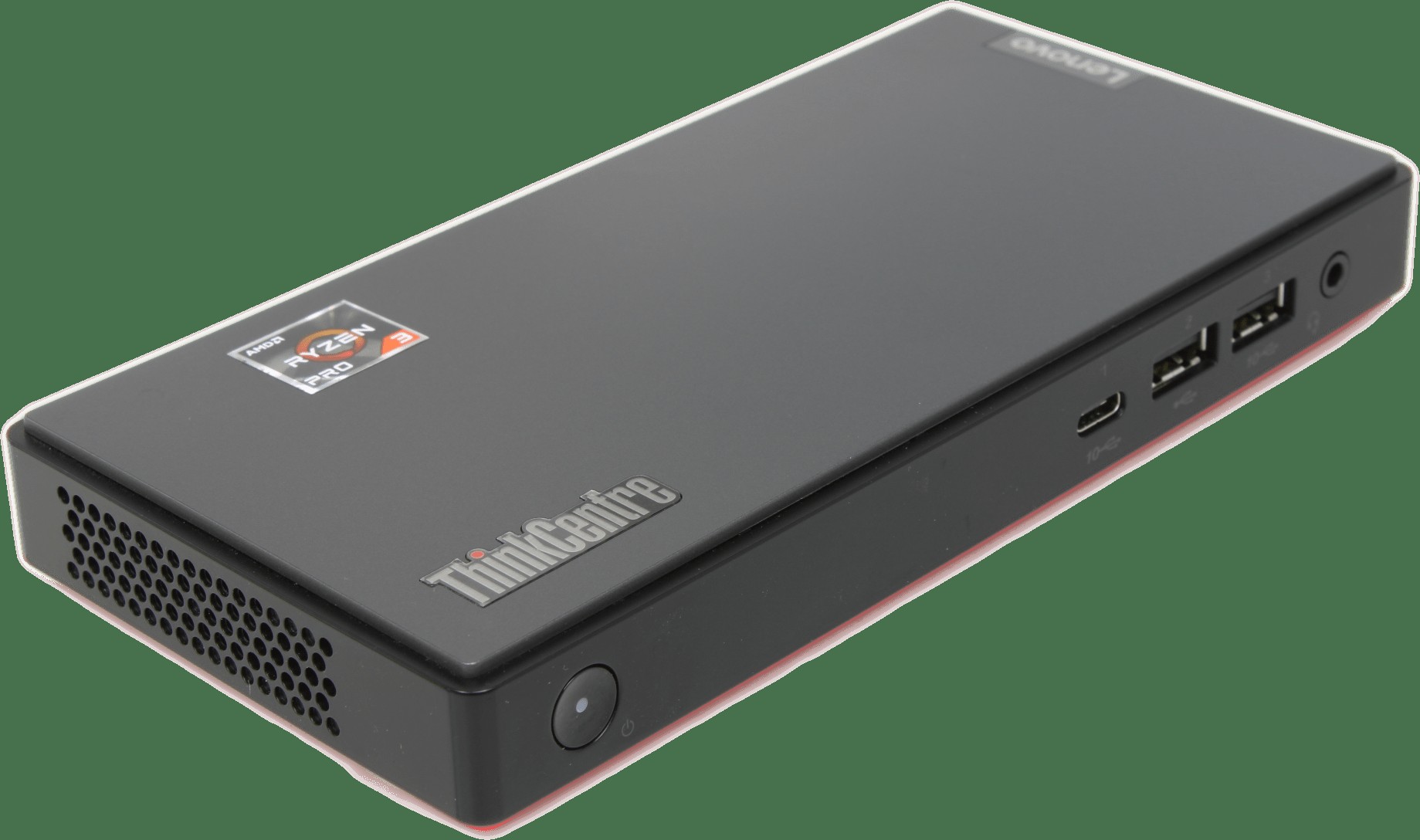

Lenovo M75n Nano

M75n Nano

Lenovo M75n Nano features AMD r3 3300U, 32GB RAM, offering ultra-compact 0.35L form factor.

CPU AMD r3 3300U

Cores / Threads 4 / 4

Socket Soldered

RAM 32GB / 2slots

Speed 2400 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (1G)

Size 179×88×22mm

Bmax MaxMini B5

MaxMini B5

Bmax MaxMini B5 features Intel i5 5250U, 8GB RAM, offering compact 0.66L design.

CPU Intel i5 5250U

Cores / Threads 2 / 4

Socket Soldered

GPU Intel Intel HD 6000

RAM 8GB / 2slots

Speed 1600 MT/s

Ethernet 1 (1G)

Size 125×112×47mm

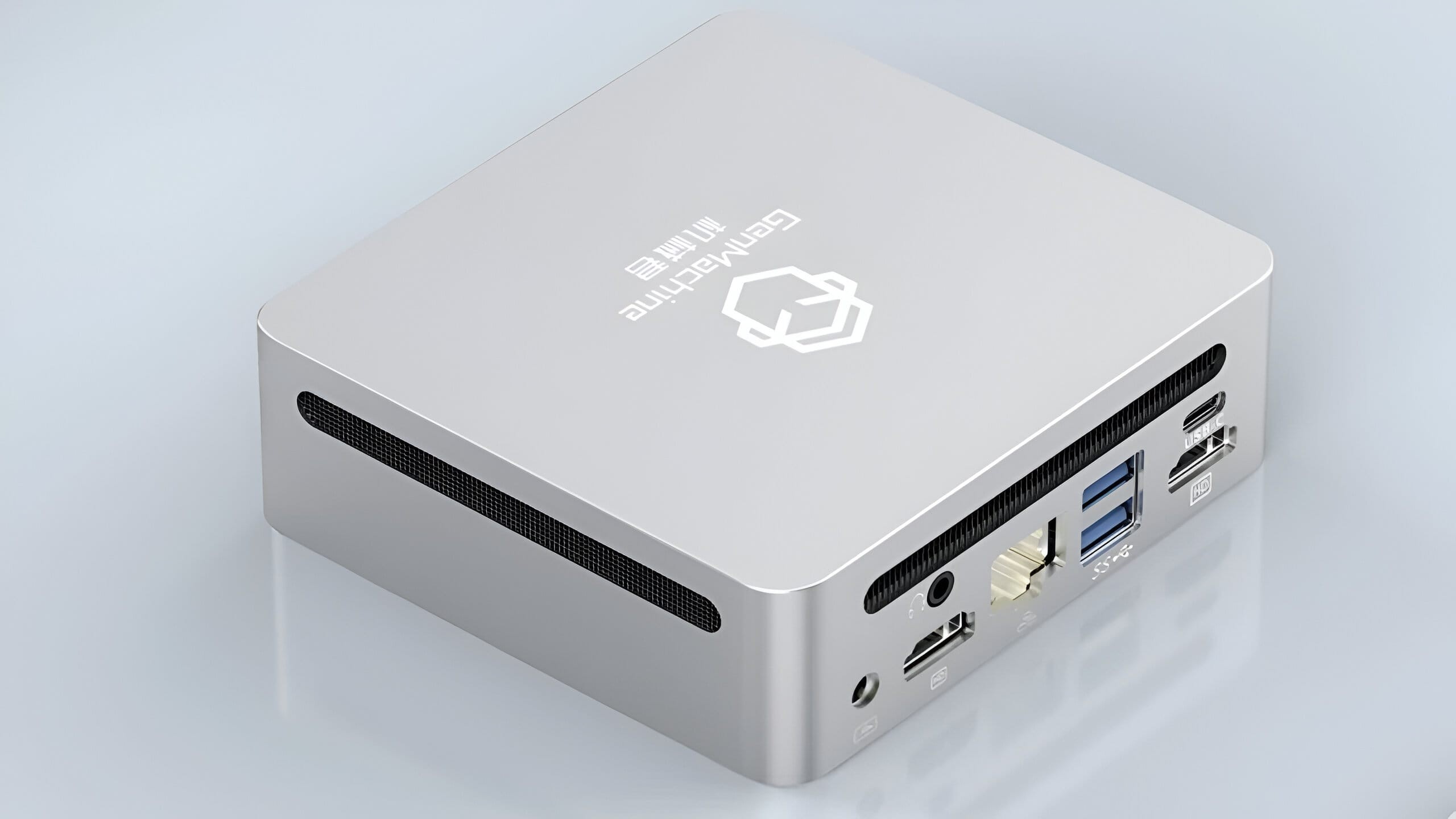

GenMachine Ren12 1255U

Ren12 1255U

GenMachine Ren12 1255U features Intel i7 1255U, 64GB RAM, offering ultra-compact 0.46L form factor.

CPU Intel i7 1255U

Cores / Threads 2 / 12

Socket Soldered

GPU Intel Iris Xe 96EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (1G)

Size 114×106×38mm
