Minisforum
MS-A2 7945HX
CPU r9 7945HX
GPU RDNA2 610M
Max RAM 96GB
Drives 3
From $640
Seller Minisforum
The Minisforum MS-A2 7945HX is a mini PC powered by the AMD r9 7945HX (Zen 5 gen). It features 16 performance cores and 32 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 610M. Supports up to 96GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 3 drives including 3 NVMe. Connectivity includes HDMI 2.1. Networking features 4 Ethernet ports (up to 10G). Dimensions: 196 × 189 × 48mm (1.78L).
CPU & Performance
CPUr9 7945HX
GenerationZen 5
P-Cores16
Threads32
Single-core82
Multi-core61
Socket0
GPU
GPURDNA2 610M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM96GB
RAM slots2
Max speed5200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots3
Gen4 x43
SD cardNo
Ports & Connectivity
HDMI 2.11
Max displays3
Network
Max Ethernet4G
10G ports2
2.5G ports2
vProN
Physical
Dimensions196 × 189 × 48 mm
Volume1.78L
Fan size80mm
Warranty2 yr
Power
Pricing
Minimum$920
Barebone est.$640
32GB / 1TB$920
Notes
May 5 2025: PCIe 4.0X16 slot is limited to x8 bandwidth
Discover More
Morefine
M1K
CPU Intel Celeron J4125
P-Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
RAM 8GB
Size 135×45×20mm
Vol 0.12L
From $250
Shuttle
XPC Nano NT10H5
CPU Intel U5 125H
P-Cores / Threads 4 / 18
Socket Soldered
GPU Intel Arc 7 Xe (112EU)

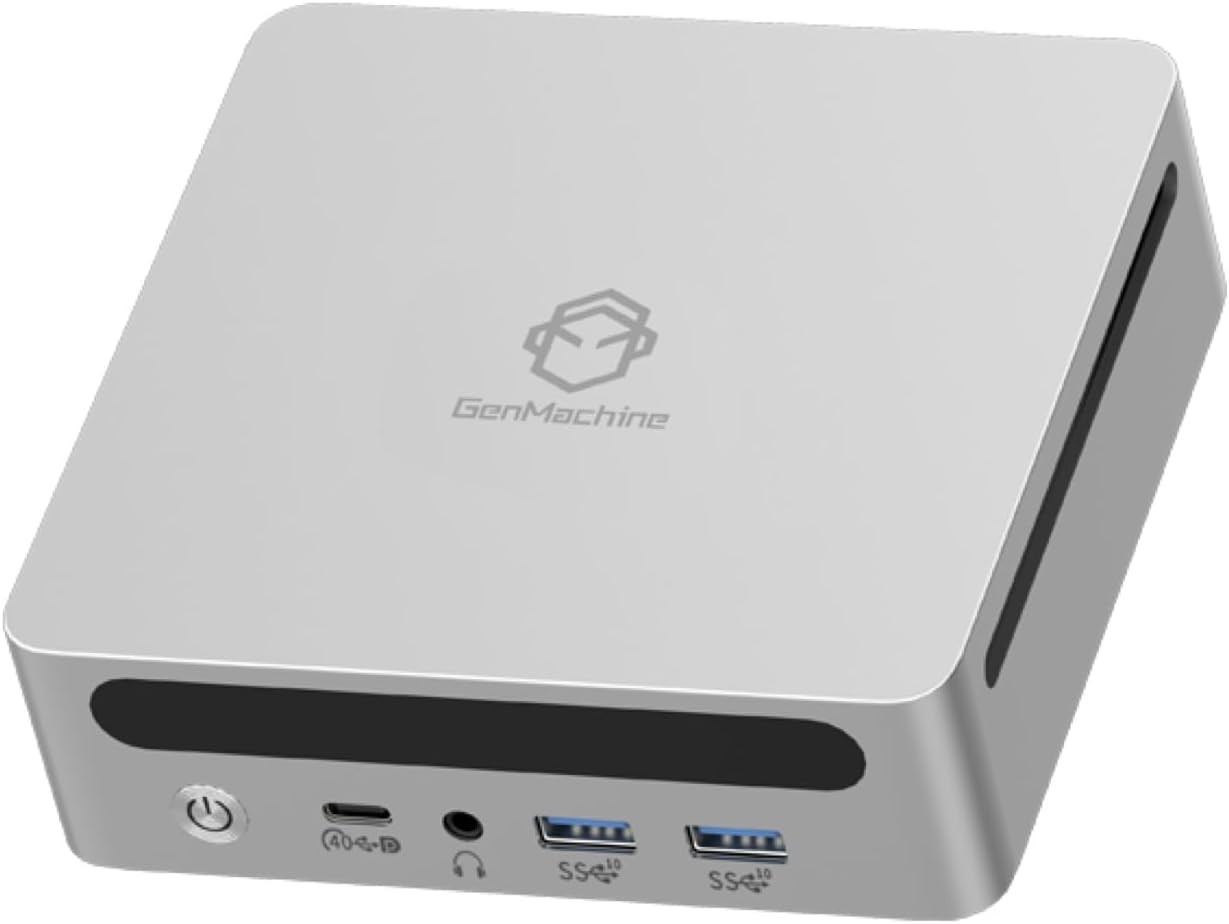

GenMachine
