Minisforum
NAB8 Plus
CPU i7 12800H
GPU Iris Xe 96EU
Max RAM 64GB
Drives 2
From $335
Seller Amazon
The Minisforum NAB8 Plus is a mini PC powered by the Intel i7 12800H (12th gen). It features 6 performance cores and 20 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, OCuLink, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 127 × 127 × 55mm (0.89L).
CPU & Performance
CPUi7 12800H
Generation12th
P-Cores6
Threads20
Single-core69
Multi-core36
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
DP 1.41
USB4 40Gbps0.5
OCuLinkYes
Max displays3
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions127 × 127 × 55 mm
Volume0.89L
Fan size85mm
Warranty2 yr
Power
Pricing
Minimum$475
Barebone est.$335
16GB / 1TB$475
32GB / 1TB$535
Notes
USB4 is 4k 60hz instead of 4k 120hz
Discover More
Gigabyte
GB-BLCE-4000C
Gigabyte GB-BLCE-4000C features Intel Celeron N4000.
CPU Intel Celeron N4000
Cores / Threads – / 2
Socket Soldered
GPU Intel Intel UHD 600

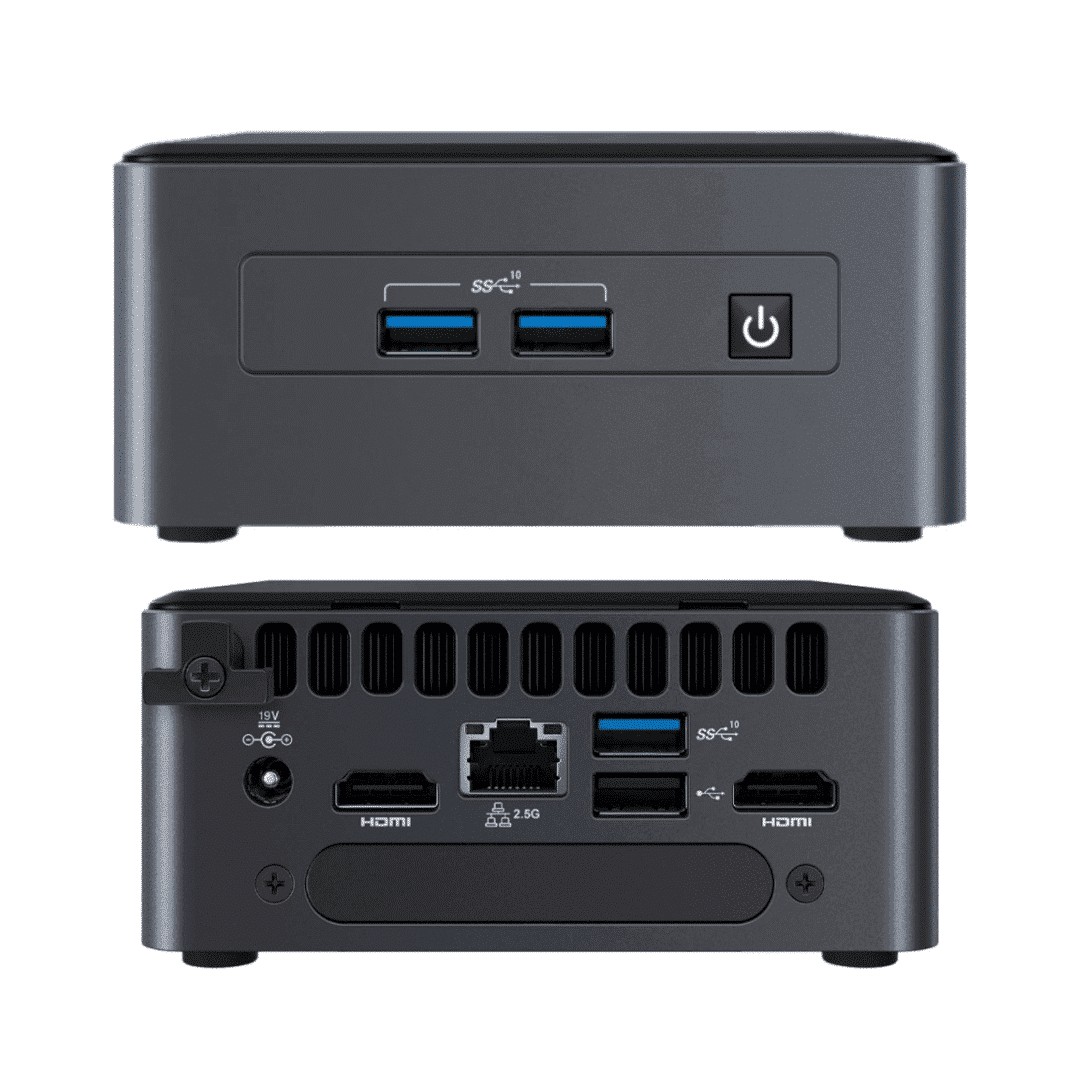

Simply NUC
