Minisforum
NAB9
CPU i9 12900HK
GPU Iris Xe 96EU
Max RAM 64GB
Drives 2
From $260
Seller Amazon
The Minisforum NAB9 is a mini PC powered by the Intel i9 12900HK (12th gen). It features 6 performance cores and 20 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 127 × 127 × 55mm (0.89L). Uses a GaN PSU (120W), 45W TDP.
CPU & Performance
CPUi9 12900HK
Generation12th
P-Cores6
Threads20
Single-core77
Multi-core41
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions127 × 127 × 55 mm
Volume0.89L
Fan size85mm
Warranty2 yr
Power
TDP45W
PSU typeGaN
PSU120W
Notes
Sep 25 2024: $342 to $304. Jul 5 2024: $342 to $330. May 4 2024: 20mm NVMe SSD fan included in prebuiltd but not barebones
Discover More
Framework

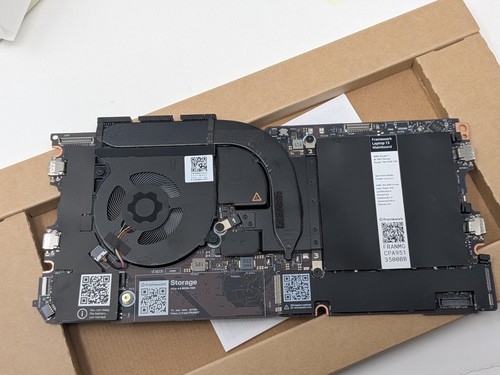

Preorder May Mainboard 13 HX 370
