Minisforum NUCG5

Minisforum

NUCG5

CPU i5 1240P

GPU Iris Xe 80EU

Max RAM 64GB

Drives 1

From $320

Seller Minisforum

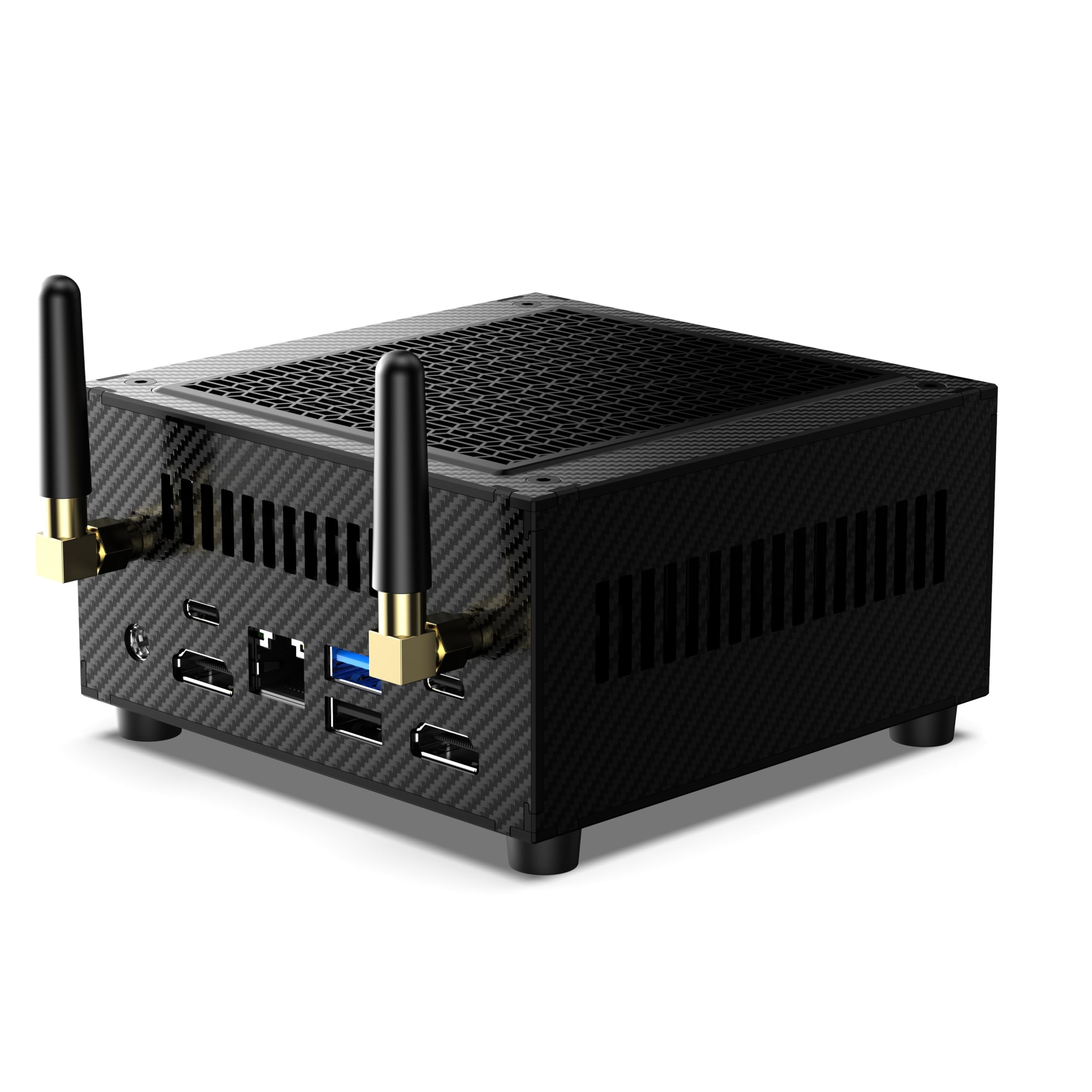

The Minisforum NUCG5 is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 110 × 110 × 62mm (0.75L). Uses a Brick PSU, 28W TDP.

CPU & Performance

CPUi5 1240P

Generation12th

P-Cores4

Threads16

Single-core65

Multi-core25

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives1

NVMe slots1

Gen4 x41

SD cardNo

Ports & Connectivity

USB4 40Gbps2

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions110 × 110 × 62 mm

Volume0.75L

Fan size90mm

Warranty2 yr

Power

TDP28W

PSU typeBrick

Pricing

Minimum$490

Barebone est.$320

16GB / 512GB$490

Notes

April 12: USB4 are 20gbps because spec sheets says they are limited to 4k 60hz

Discover More

Asus PN61 8565U

PN61 8565U

Asus PN61 8565U features Intel i7 8565U, 32GB RAM, offering USB4 and compact 0.65L design.

CPU Intel i7 8565U

Cores / Threads 4 / 8

Socket Soldered

GPU Intel Intel UHD 620

RAM 32GB / 2slots

Speed 2400 MT/s

Drives 2 (1 NVMe)

Ethernet 1 (1G)

Size 115×115×49mm

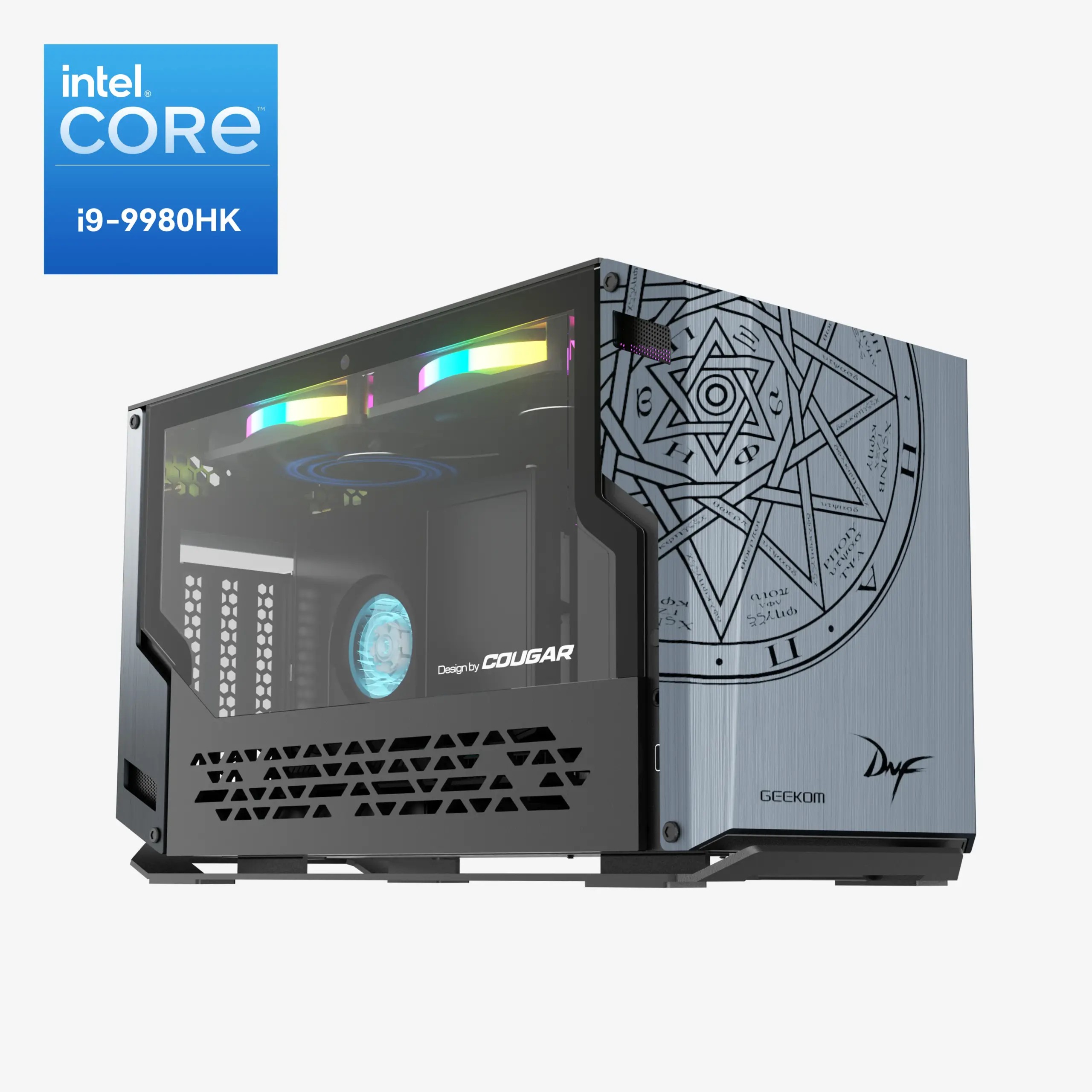

Geekom Mini FUN9 4070
