Minisforum
Renewed HX90
CPU r9 5900HX
GPU Vega 8
Max RAM 64GB
Drives 3
From $230
Seller Amazon
The Minisforum Renewed HX90 is a mini PC powered by the AMD r9 5900HX (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 2× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 195 × 190 × 60mm (2.22L). Uses a Brick PSU, 45W TDP.
CPU & Performance
CPUr9 5900HX
GenerationZen 3
P-Cores8
Threads16
Single-core63
Multi-core33
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA2
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions195 × 190 × 60 mm
Volume2.22L
Fan size90mm
Warranty1 yr
Power
TDP45W
PSU typeBrick
Pricing
16GB / 512GB$230
Notes
Mar 27 2025: $710 to $160. 2021 liquid metal leaking in several review samples was quickly resolved. Carbon fiber case advertisement was not honest
Discover More
Lenovo
M90n Nano
CPU Intel i5 8365U
P-Cores / Threads 4 / 8
Socket Soldered
GPU Intel Intel UHD 620
RAM Speed 2400 MT/s
Drives 1 (1 NVMe)
Ethernet Ports 1 (1G)
PSU Brick
Size 179×88×22mm
Vol 0.35L
From $940
Topton
X4H N100
CPU Intel Celeron N100
P-Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 32GB / 1 slot
RAM Speed 4800 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet Ports 4 (10G)
Size 148×127×60mm
Vol 1.13L
From $205

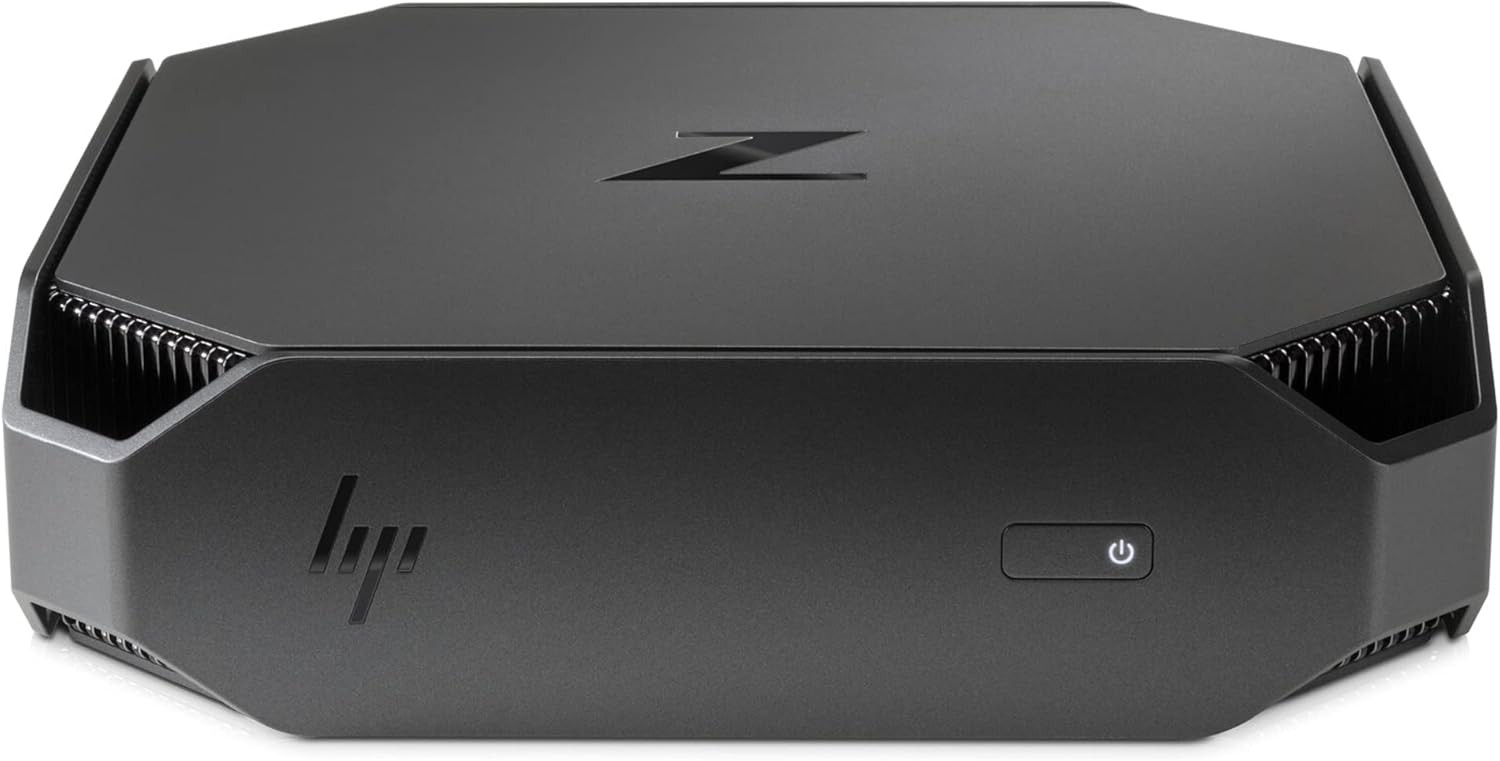

HP
