Mini PC DataBase

Minisforum UH125 Pro

Minisforum

UH125 Pro

CPU U5 125H

GPU Arc 7 Xe (112EU)

Max RAM 96GB

Drives 2.5

From $540

Seller Amazon

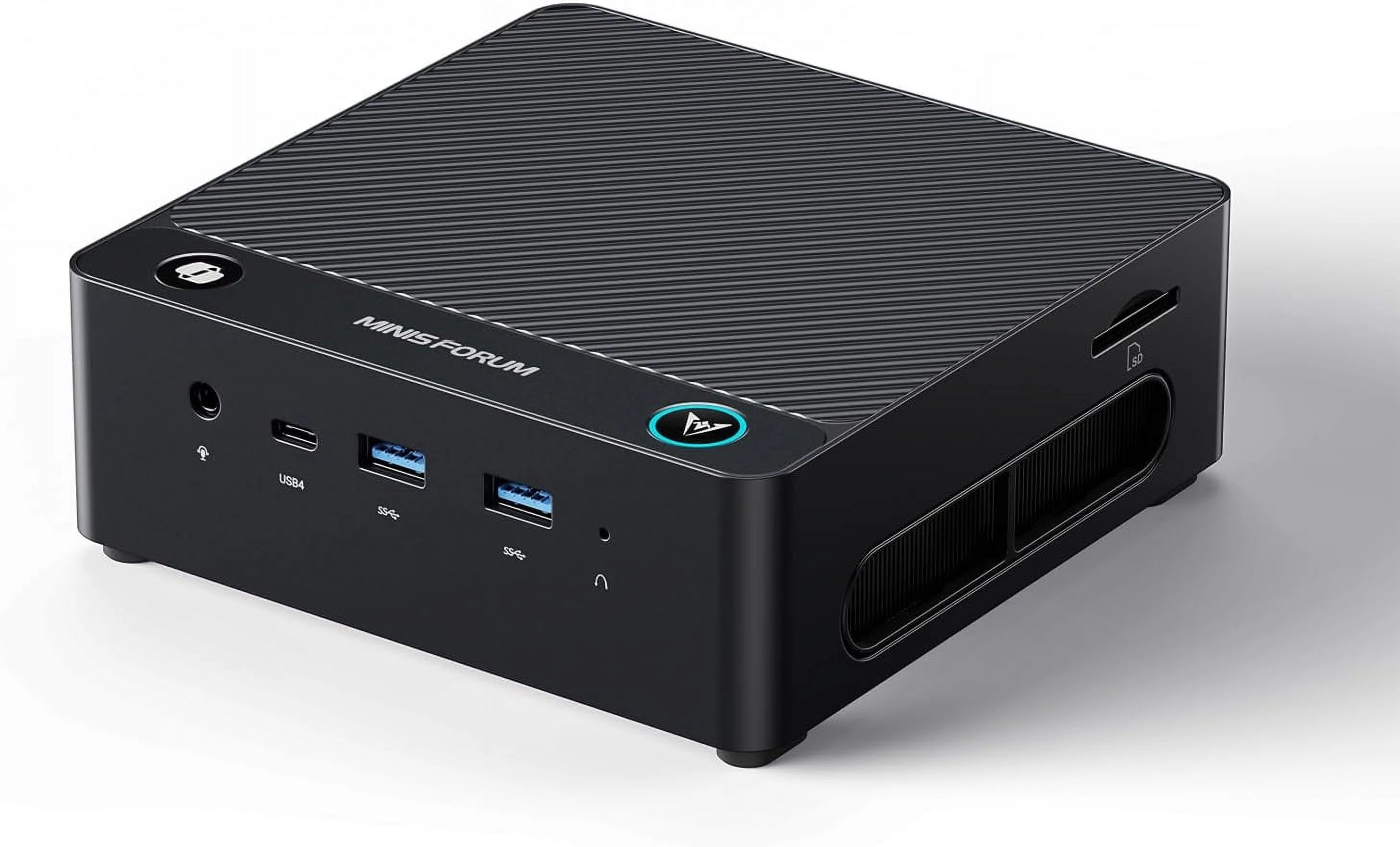

The Minisforum UH125 Pro is a mini PC powered by the Intel U5 125H (1st gen). It features 4 performance cores and 18 threads and a soldered CPU. Graphics are handled by the integrated Intel Arc 7 Xe (112EU). Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2.5 drives including 1.5 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1. Networking features 2 Ethernet ports (up to 5G). Dimensions: 144 × 125 × 53mm (0.95L).

CPU & Performance

CPUU5 125H

Generation1st

P-Cores4

Threads18

Single-core70

Multi-core36

Socket0

GPU

GPUArc 7 Xe (112EU)

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2.5

NVMe slots1.5

Gen4 x41.5

SD cardYes

Ports & Connectivity

HDMI 2.11

USB4 40Gbps2

OCuLinkYes

Max displays4

Network

Max Ethernet2G

Physical

Dimensions144 × 125 × 53 mm

Volume0.95L

Fan size85mm

Warranty2 yr

Power

PSU120W

Pricing

32GB / 1TB$540

Notes

Jan 22 2025: $440 barebones became $385 and out of stock. $614 32GB/1TB dropped down to $542. Aug 3 2024: $640 to $614. Oculink 63 Gbps port

Discover More

Framework Mainboard 16 r7-7840HS 7700S

Mainboard 16 r7-7840HS 7700S

Framework Mainboard 16 r7-7840HS 7700S features AMD r7 7840HS with AMD 7700S discrete GPU, offering USB4 and compact 0.53L design.

CPU AMD r7 7840HS

Cores / Threads 8 / 16

Socket Soldered

RAM 64GB / 2slots

Speed 5600 MT/s

Drives 1 (1 NVMe)

Size 240×220×10mm

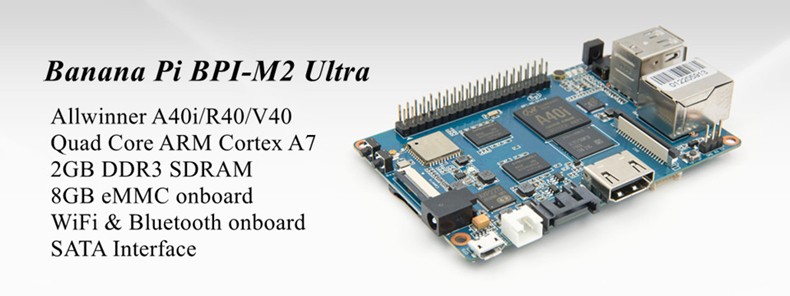

Banana Pi BPI-M2U 2GB

BPI-M2U 2GB

Banana Pi BPI-M2U 2GB features ARM ARM A7.

Cores / Threads 4 / 4

Socket Soldered

GPU ARM Mali 400 MP2

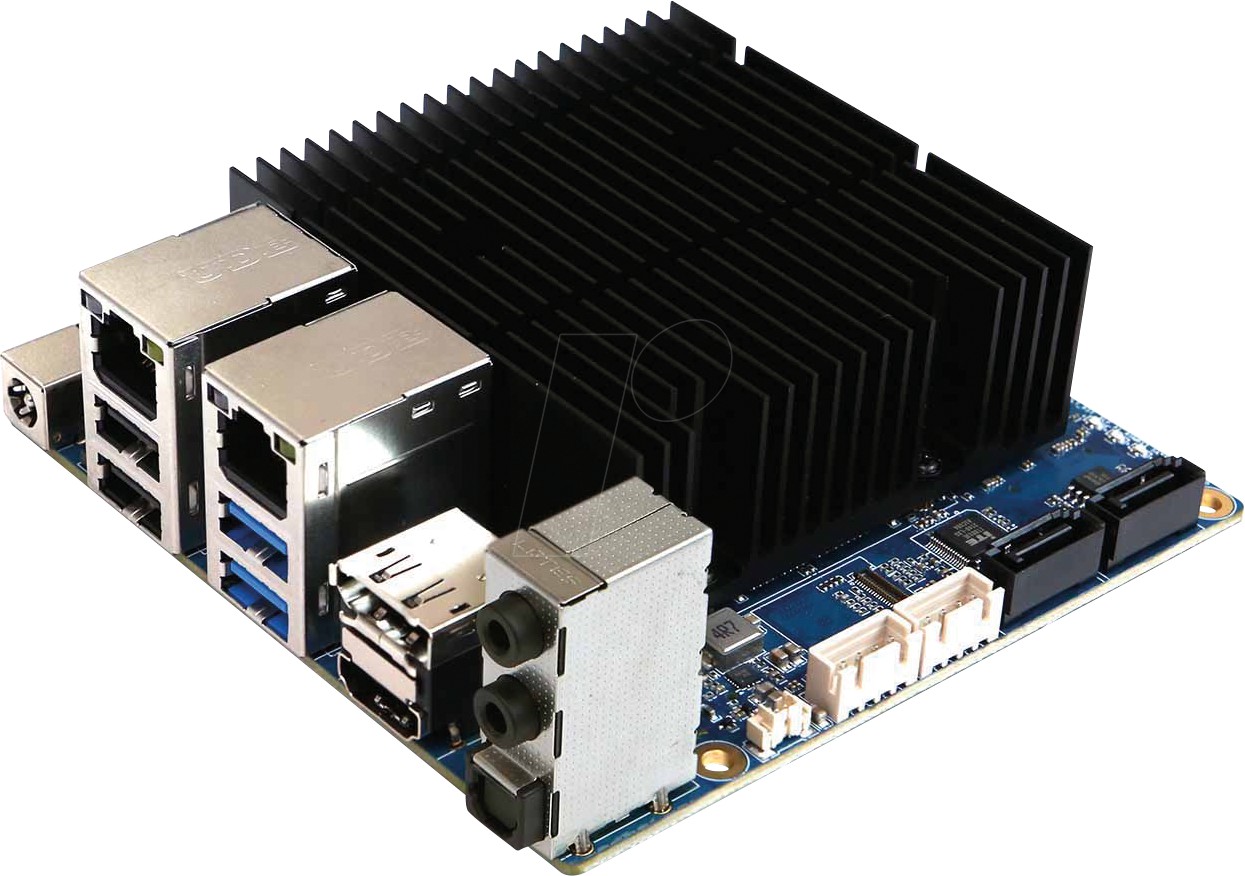

Odroid H3
