Mini PC DataBase

Minisforum UH185/X7 Ti 7800XT

Minisforum

UH185/X7 Ti 7800XT

CPU U9 185H

GPU 7800XT

Max RAM 96GB

Drives 3

From $1,330

Seller Amazon

The Minisforum UH185/X7 Ti 7800XT is a mini PC powered by the Intel U9 185H (1st gen). It features 6 performance cores and 22 threads and a soldered CPU. Graphics are handled by the integrated AMD 7800XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 3 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 2.0. Networking features 2 Ethernet ports (up to 5G). Dimensions: 290 × 225 × 152mm (9.92L).

CPU & Performance

CPUU9 185H

Generation1st

P-Cores6

Threads22

Single-core75

Multi-core46

Socket0

GPU

GPU7800XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

SD cardYes

Ports & Connectivity

HDMI 2.12

DP 2.03

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size85mm

Warranty2 yr

Power

Notes

Oculink 64Gbps port does not occupy a m.2 slot and 4 inch 480p touch screen, dual microphones, and 1080p camera with manual privacy switch

Discover More

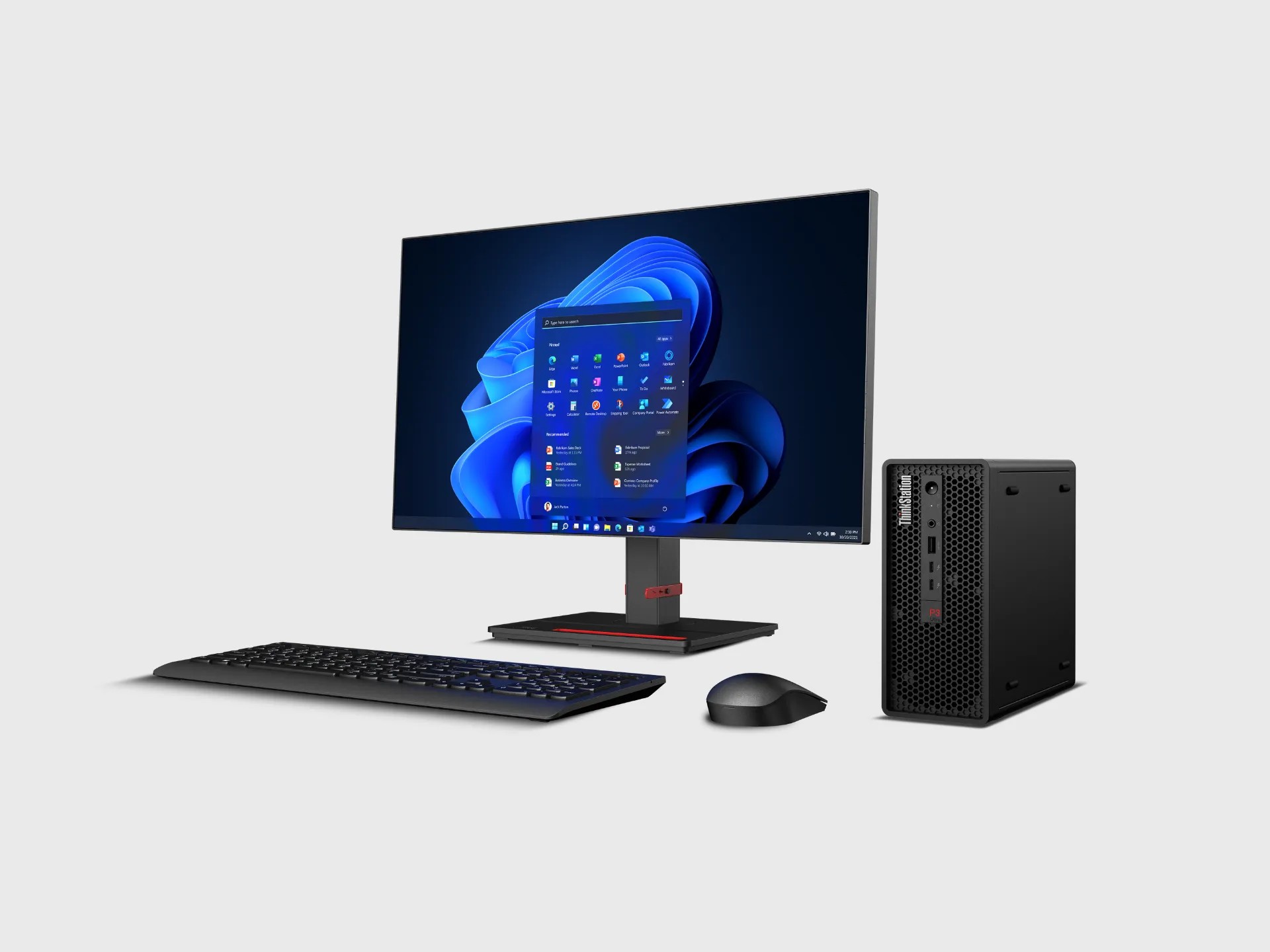

Lenovo P3 Ultra

P3 Ultra

Lenovo P3 Ultra features Intel i5 12500, offering 2× 2.5G Ethernet.

CPU Intel i5 12500

Cores / Threads 6 / 12

GPU Intel Intel UHD 770

Ethernet 2 (2.5G)

Size 223×202×86mm

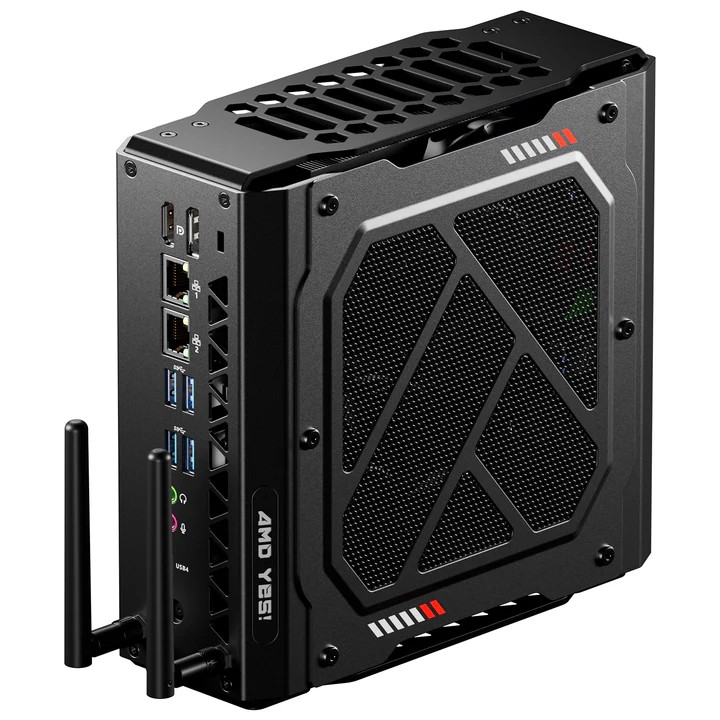

AOOSTAR GEM10 Pro 6800H
