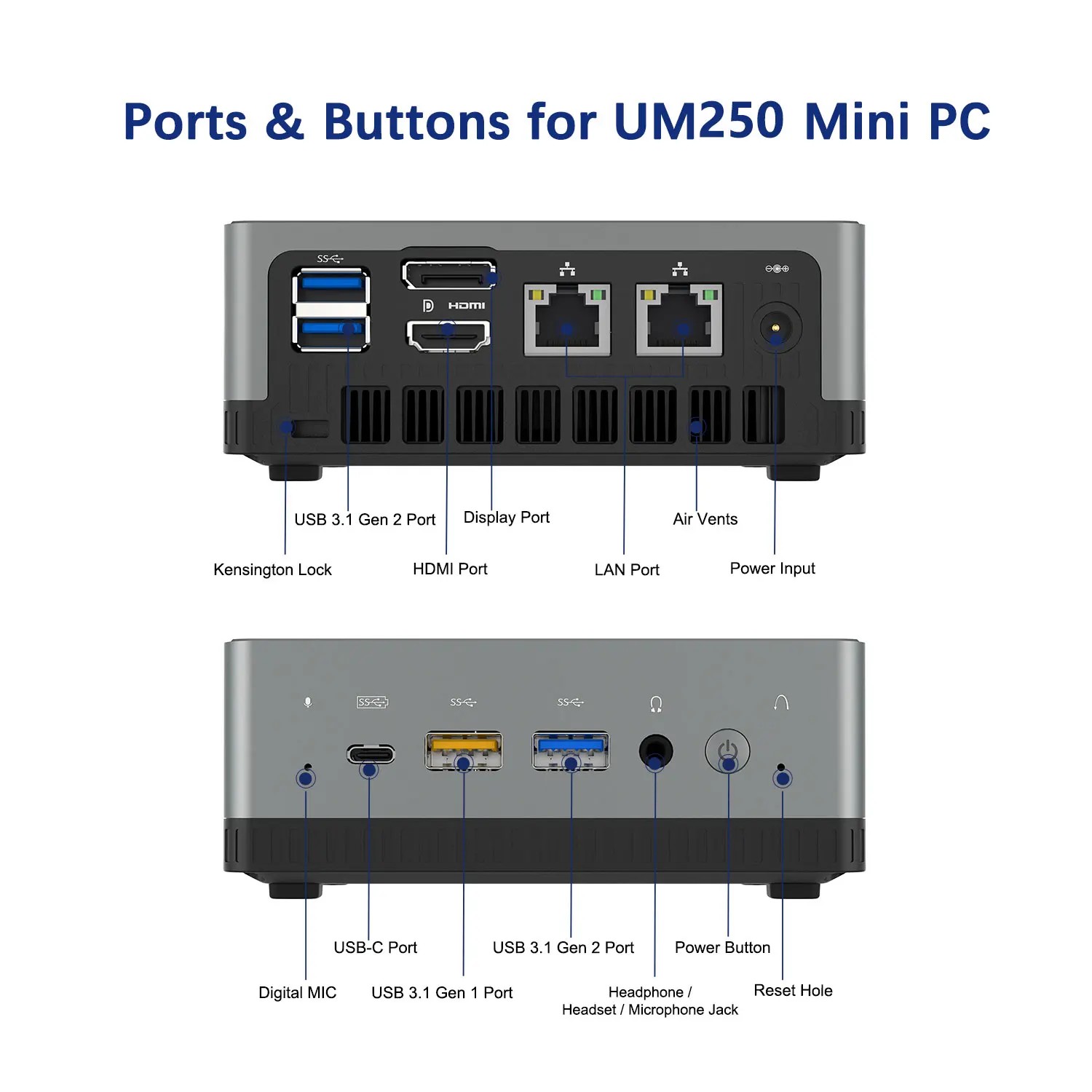

Minisforum
UM250 V1605B
CPU V1000 V1605B
GPU Vega 8 (Ryzen 2000)
Max RAM 32GB
Drives 2
Seller Minisforum
The Minisforum UM250 V1605B is a mini PC powered by the AMD V1000 V1605B (Zen 1 gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8 (Ryzen 2000). Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 127 × 127 × 51mm (0.82L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUV1000 V1605B
GenerationZen 1
P-Cores4
Threads8
Single-core38
Multi-core10
Socket0
GPU
GPUVega 8 (Ryzen 2000)
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions127 × 127 × 51 mm
Volume0.82L
Fan size70mm
Power
TDP15W
PSU typeBrick
Discover More

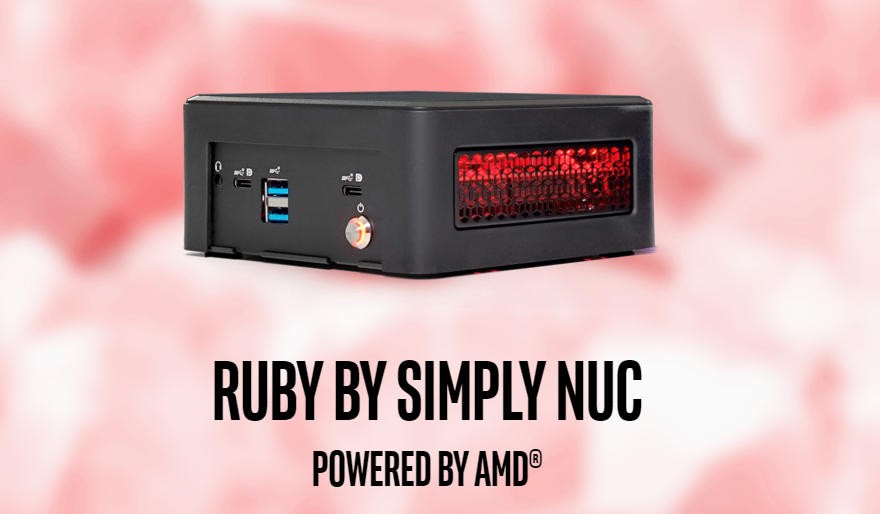

Simply NUC
