Minisforum UM450
Minisforum

UM450

CPU r5 4500U
GPU Vega 6
Max RAM 64GB
Drives 2
From $323
Seller Amazon

The Minisforum UM450 is a mini PC powered by the AMD r5 4500U (Zen 2 gen). It features 6 performance cores and 6 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 6. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 128 × 127 × 47mm (0.76L). Uses a Brick PSU, 15W TDP.

CPU & Performance

CPUr5 4500U
GenerationZen 2
P-Cores6
Threads6
Single-core49
Multi-core18
Socket0

GPU

GPUVega 6
Discrete GPUNo
Integrated GPUYes
eGPU supportNo

RAM

Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo

Storage

Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet1G
2.5G ports1
vProN

Physical

Dimensions128 × 127 × 47 mm
Volume0.76L
Fan size80mm

Power

TDP15W
PSU typeBrick

Pricing

16GB / 512GB$323

Notes

Case is difficult to open. Some units might be missing the ssd heatsink: https://www.reddit.com/r/MiniPCs/comments/11tue5b/um690_vrm_heatsink_not_present_in_early_units/

Discover More

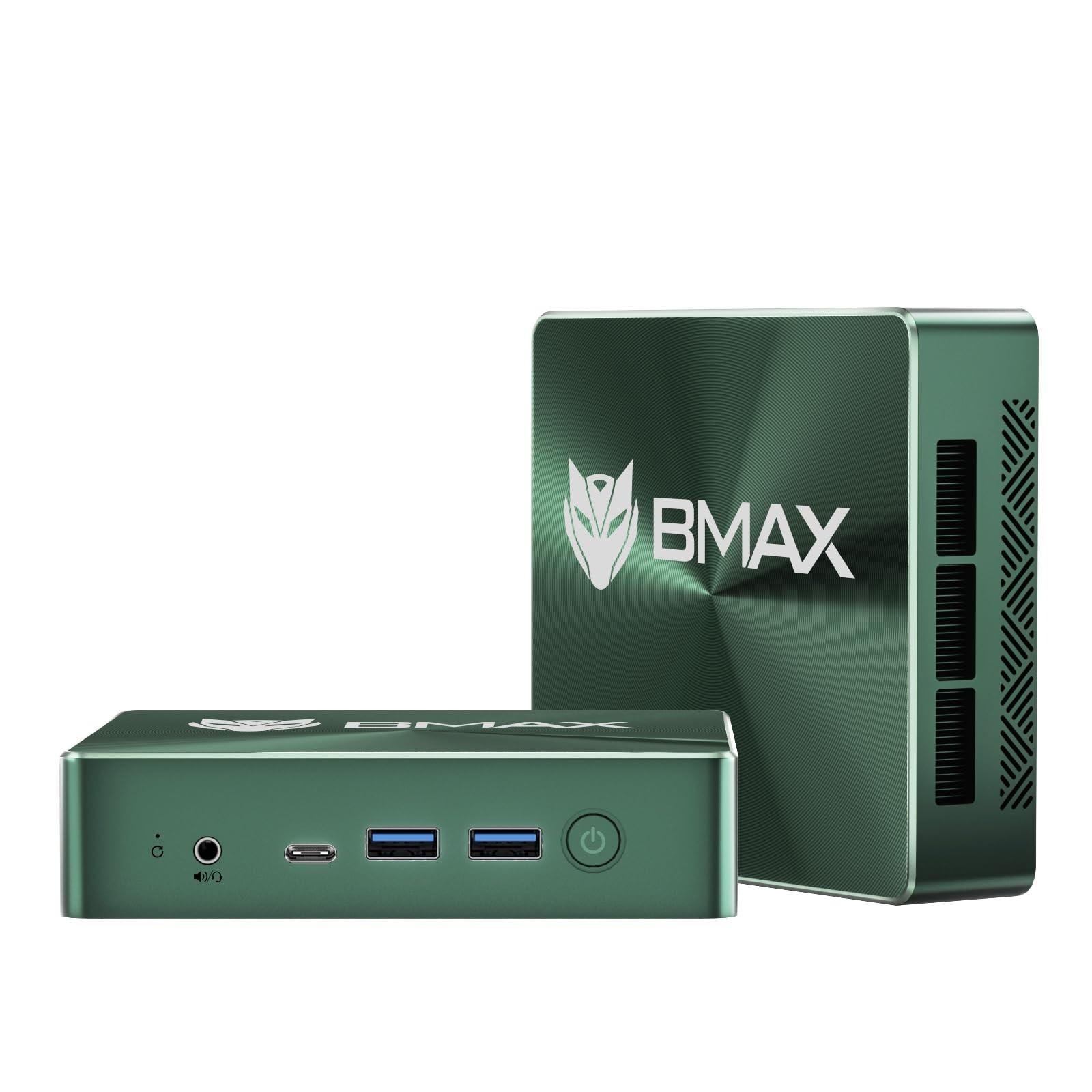

Bmax MaxMini B6 Pro
Bmax

MaxMini B6 Pro

$70

Bmax MaxMini B6 Pro features Intel i5 1030NG7, 16GB RAM, offering ultra-compact 0.49L form factor.

CPU Intel i5 1030NG7
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Plus Ice Lake…
RAM 16GB
Speed 3200 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (1G)
Size 125×112×35mm
Vol 0.49L

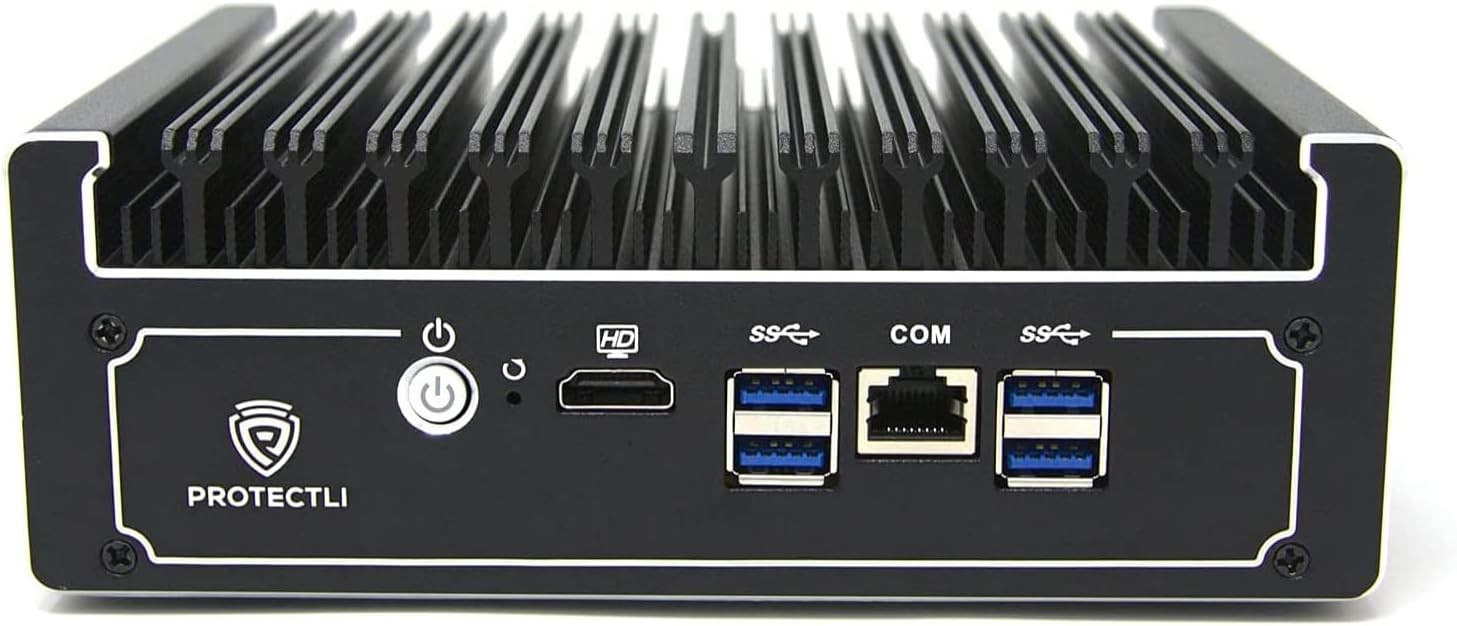

PROTECTLI FW6D
PROTECTLI

FW6D

$500

PROTECTLI FW6D features Intel i5 8250U, 32GB RAM.

CPU Intel i5 8250U
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Intel UHD 620
RAM 32GB / 2slots
Speed 2400 MT/s
Drives 2
SATA 1×2.5"
Ethernet 6 (1G)
Size 181×127×66mm
Vol 1.52L

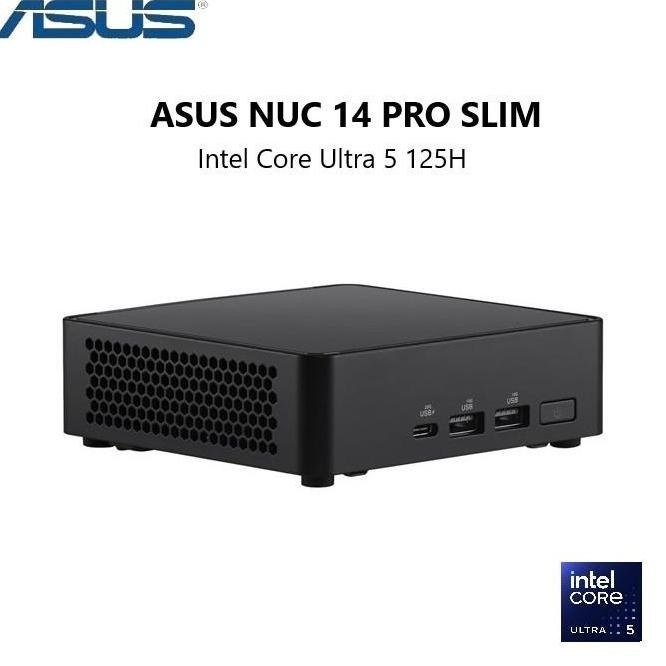

Simply NUC Preorder NUC14RVKu5
