Minisforum
UM560XT
CPU r5 5600H
GPU Vega 7
Max RAM 64GB
Drives 2
From $254
Seller Amazon
The Minisforum UM560XT is a mini PC powered by the AMD r5 5600H (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 128 × 127 × 47mm (0.76L). Uses a Brick PSU (65W), 45W TDP.
CPU & Performance
CPUr5 5600H
GenerationZen 3
P-Cores6
Threads12
Single-core58
Multi-core25
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions128 × 127 × 47 mm
Volume0.76L
Fan size80mm
Warranty1 yr
Power
TDP45W
PSU typeBrick
PSU65W
Pricing
16GB / 512GB$254
16GB / 1TB$286
Notes
Case is difficult to open
Discover More

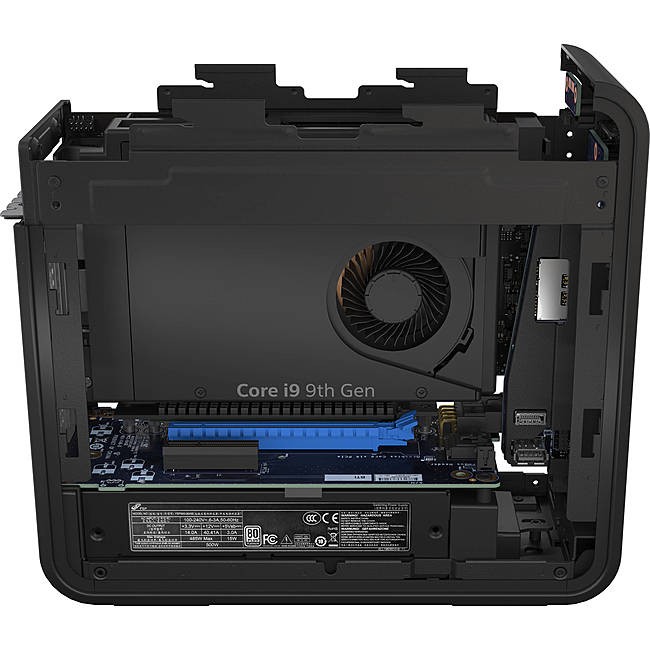

Intel
Extreme NUC9i9QNX
$1,400
Intel Extreme NUC9i9QNX features Intel i9 9980HK with NVIDIA 4060 Ti discrete GPU, offering USB4.
CPU Intel i9 9980HK
Cores / Threads 8 / 16
Socket Soldered
GPU NVIDIA 4060 Ti
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 5 (3 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU FLEX
Size 238×216×96mm
Vol 4.94L
ZOTAC
ZBOX-ID62
ZOTAC ZBOX-ID62.

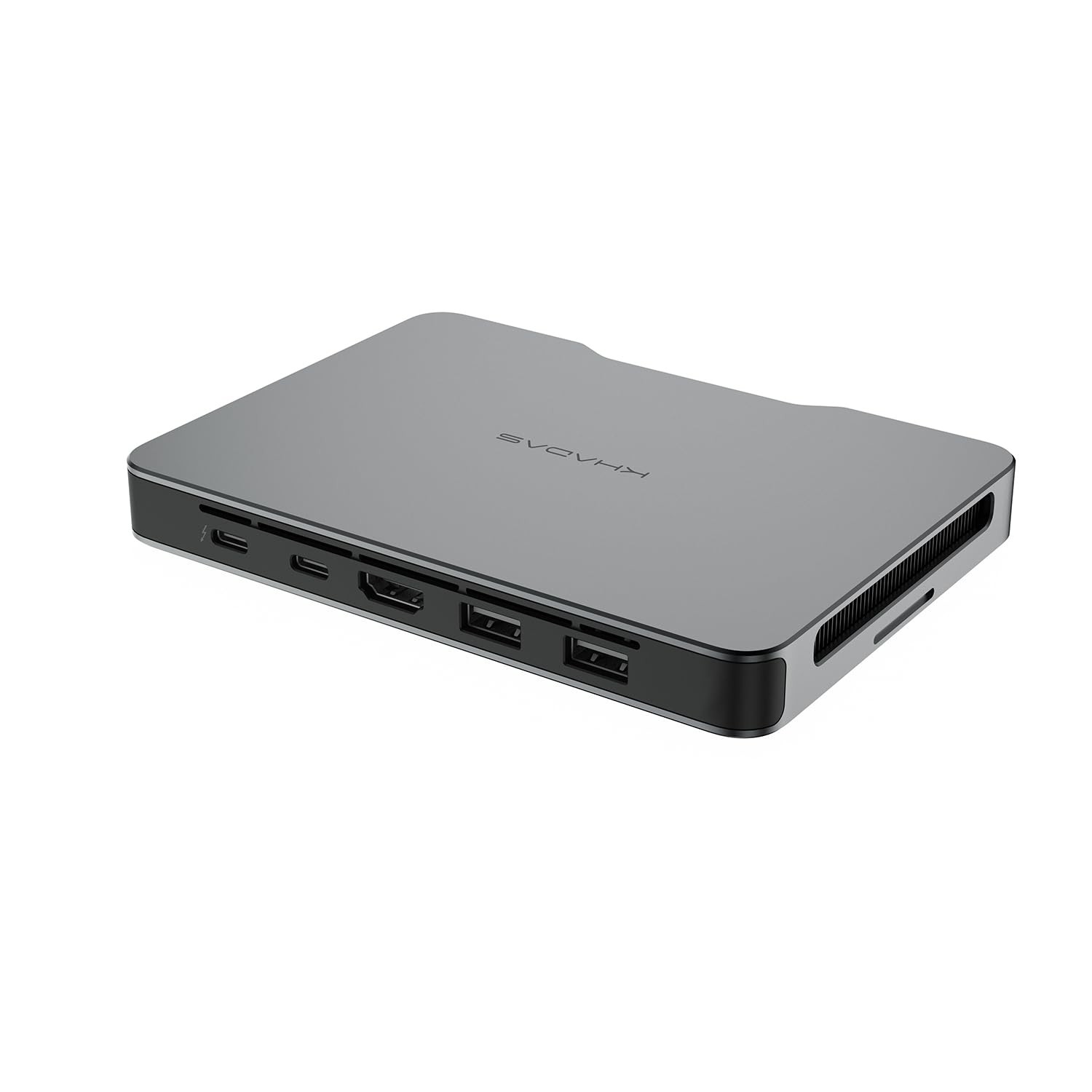

Khadas
