Minisforum
UM580D
CPU r7 5800H
GPU Vega 8
Max RAM 64GB
Drives 2
From $420
Seller Amazon
The Minisforum UM580D is a mini PC powered by the AMD r7 5800H (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 128 × 127 × 47mm (0.76L). Uses a Brick PSU (120W), 45W TDP.
CPU & Performance
CPUr7 5800H
GenerationZen 3
P-Cores8
Threads16
Single-core60
Multi-core31
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
vProN
Physical
Dimensions128 × 127 × 47 mm
Volume0.76L
Fan size80mm
Power
TDP45W
PSU typeBrick
PSU120W
Notes
Case is difficult to open
Discover More
ZOTAC
ZBOX-ID10
ZOTAC ZBOX-ID10.
Intel
Extreme NUC9i5QNX
$640
Intel Extreme NUC9i5QNX features Intel i5 9300H with AMD 6400 discrete GPU, offering USB4.
CPU Intel i5 9300H
Cores / Threads 4 / 8
Socket Soldered
GPU AMD 6400
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 5 (3 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU FLEX
Size 238×216×96mm
Vol 4.94L

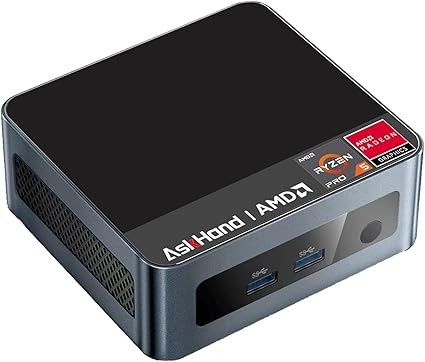

Askhand
