Minisforum

UM690 Pro

Name: Minisforum UM690 Pro
Brand: Minisforum

CPU r9 6900HX

GPU RDNA2 680M

Max RAM 64GB

Drives 2

From $432

Seller Amazon

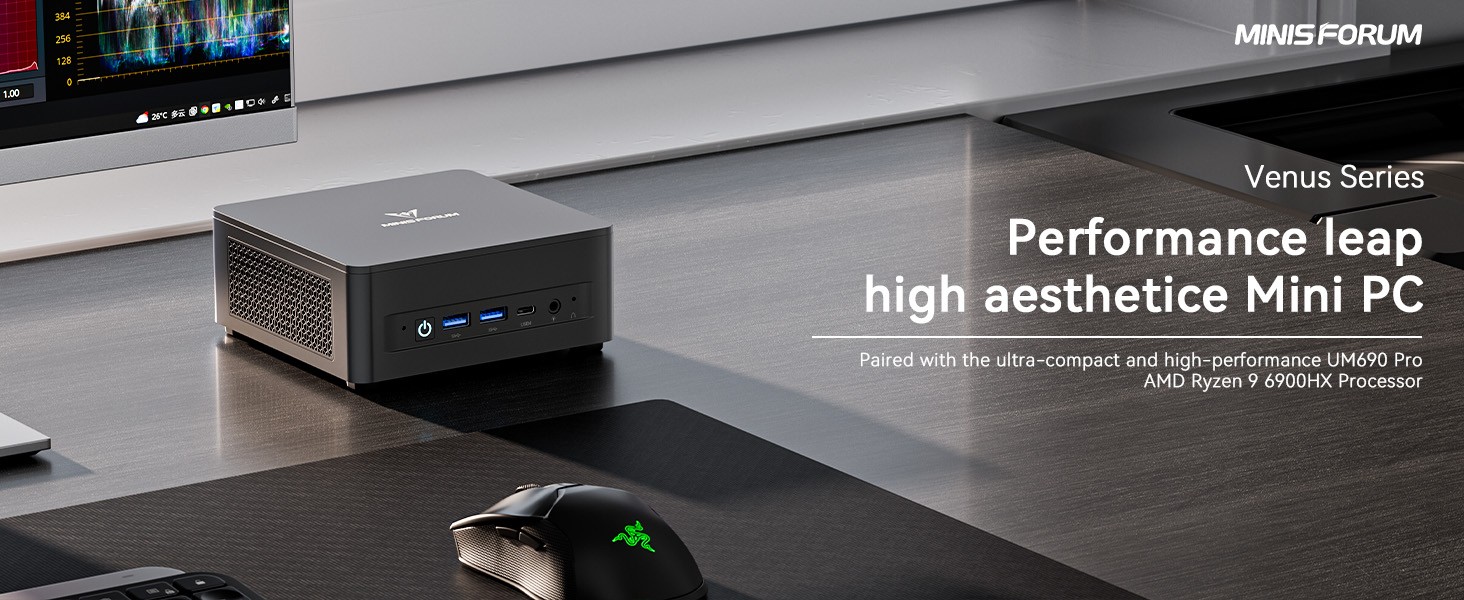

The Minisforum UM690 Pro is a mini PC powered by the AMD r9 6900HX (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 680M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 130 × 126 × 52mm (0.85L). Uses a Brick PSU, 65W TDP.

CPU & Performance

CPUr9 6900HX

GenerationZen 3+

P-Cores8

Threads16

Single-core66

Multi-core36

Socket0

GPU

GPURDNA2 680M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x42

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps2

Max displays4

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions130 × 126 × 52 mm

Volume0.85L

Fan size85mm

Power

TDP65W

PSU typeBrick

Pricing

32GB / 1TB$432

Notes

Jun 26 2024: $265 to $232. May 1 2024: $320 to $265. April 18 2024: $350 to $310. Nov 2: $550 to $480. Aug 9: various software/driver problems like crashing during sleep https://www.reddit.com/r/MiniPCs/comments/15mjo98/minisforum_um790_pro_shutting_off_unexpectedly/?utm_source=share&utm_medium=android_app&utm_name=androidcss&utm_term=1&utm_content=1 40mm fan cools RAM and SSD
