Mini PC DataBase

Minisforum UM790 XTX 6700XT

Minisforum

UM790 XTX 6700XT

CPU r7 7940HS

GPU 6700XT

Max RAM 96GB

Drives 2

From $1,065

Seller Aliexpress

The Minisforum UM790 XTX 6700XT is a mini PC powered by the AMD r7 7940HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD 6700XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 152mm (9.92L). Uses a Brick PSU, 65W TDP.

CPU & Performance

CPUr7 7940HS

GenerationZen 4

P-Cores8

Threads16

Single-core77

Multi-core44

Socket0

GPU

GPU6700XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x42

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 1.43

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size85mm

Warranty2 yr

Power

TDP65W

PSU typeBrick

Notes

Jun 26 2024: $577 to $560. Oculink 63Gbps port

Discover More

OneXPlayer

OneXPlayer features Intel Pentium 8505U.

CPU Intel Pentium 8505U

Cores / Threads 1 / 6

Socket Soldered

GPU Intel Iris Xe 48EU

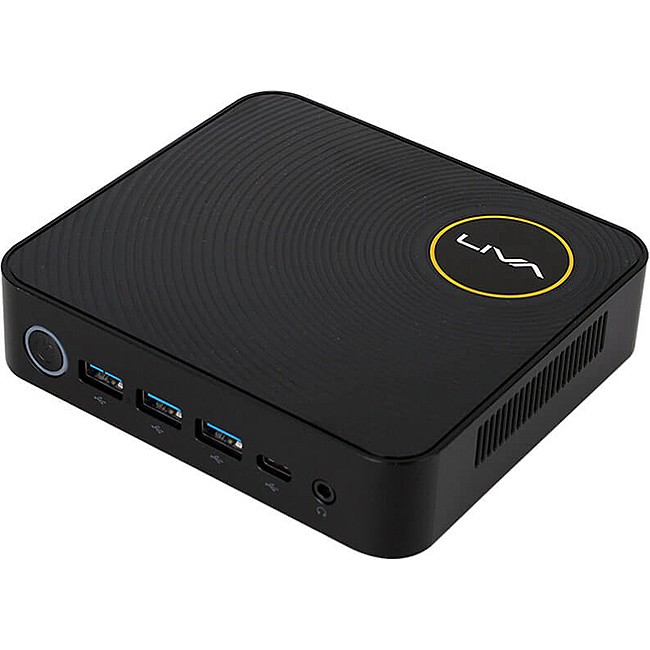

ECS Elitegroup LIVA Z Plus
