Mini PC DataBase

Minisforum UM790 XTX 7800XT

Minisforum

UM790 XTX 7800XT

CPU r7 7940HS

GPU 7800XT

Max RAM 96GB

Drives 2

From $1,255

Seller Aliexpress

The Minisforum UM790 XTX 7800XT is a mini PC powered by the AMD r7 7940HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD 7800XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 2.0. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 152mm (9.92L). Uses a Brick PSU, 65W TDP.

CPU & Performance

CPUr7 7940HS

GenerationZen 4

P-Cores8

Threads16

Single-core77

Multi-core44

Socket0

GPU

GPU7800XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x42

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 2.03

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size85mm

Warranty2 yr

Power

TDP65W

PSU typeBrick

Notes

Jun 26 2024: $577 to $560. Oculink 63Gbps port

Discover More

Minisforum NAB7

NAB7

Minisforum NAB7 features Intel i7 12700H, 64GB RAM, offering 2× 2.5G Ethernet and compact 0.89L design.

CPU Intel i7 12700H

Cores / Threads 6 / 20

Socket Soldered

GPU Intel Iris Xe 96EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 2 (1 NVMe)

Ethernet 2 (2.5G)

Size 127×127×55mm

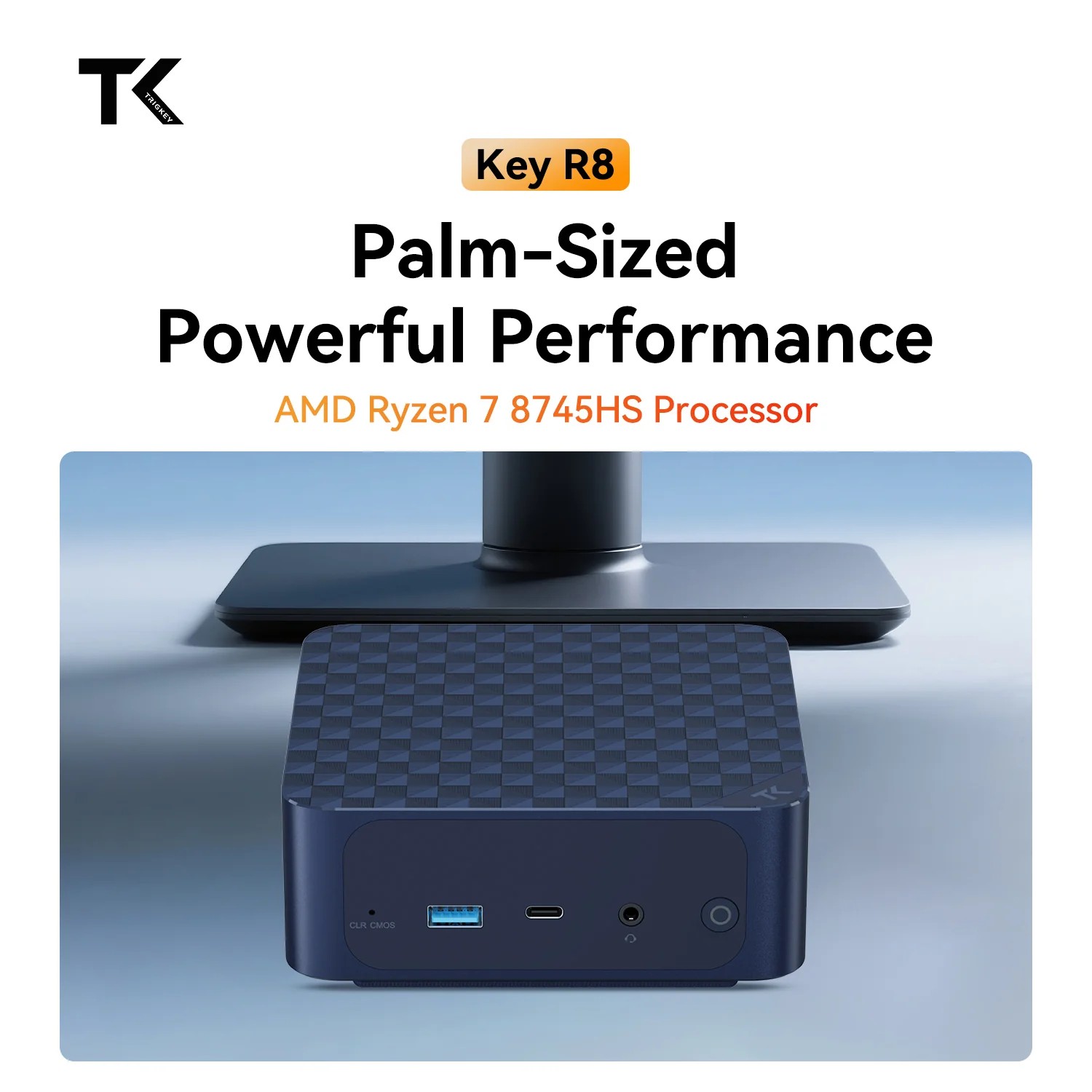

Trigkey Key R8
