Morefine

M600 6950HX

Name: Morefine M600 6950HX
Brand: Morefine

CPU r9 6900HX

GPU RDNA2 680M

Max RAM 64GB

Drives 3

From $587

Seller Aliexpress

The Morefine M600 6950HX is a mini PC powered by the AMD r9 6900HX (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 680M. Supports up to 64GB of RAM across 2 slots at 6400 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 147 × 145 × 41mm (0.87L). Uses a Brick PSU, 45W TDP.

CPU & Performance

CPUr9 6900HX

GenerationZen 3+

P-Cores8

Threads16

Single-core66

Multi-core36

Socket0

GPU

GPURDNA2 680M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed6400 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps1

Max displays3

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions147 × 145 × 41 mm

Volume0.87L

Fan size80mm

Warranty1 yr

Power

TDP45W

Idle9W

Peak101W

PSU typeBrick

Notes

Sep 5 2024: ECC RAM not supported https://www.reddit.com/u/SerMumble/s/TZOpx5BmZo. Aug 8. u/aetherspoon confirms ecc ram support https://www.reddit.com/r/MiniPCs/comments/15lan1p/zen4_minipc_and_ecc/. Jan 1: Supports RAM overclocking, Robtech reported 5400 Mhz maximum

Discover More

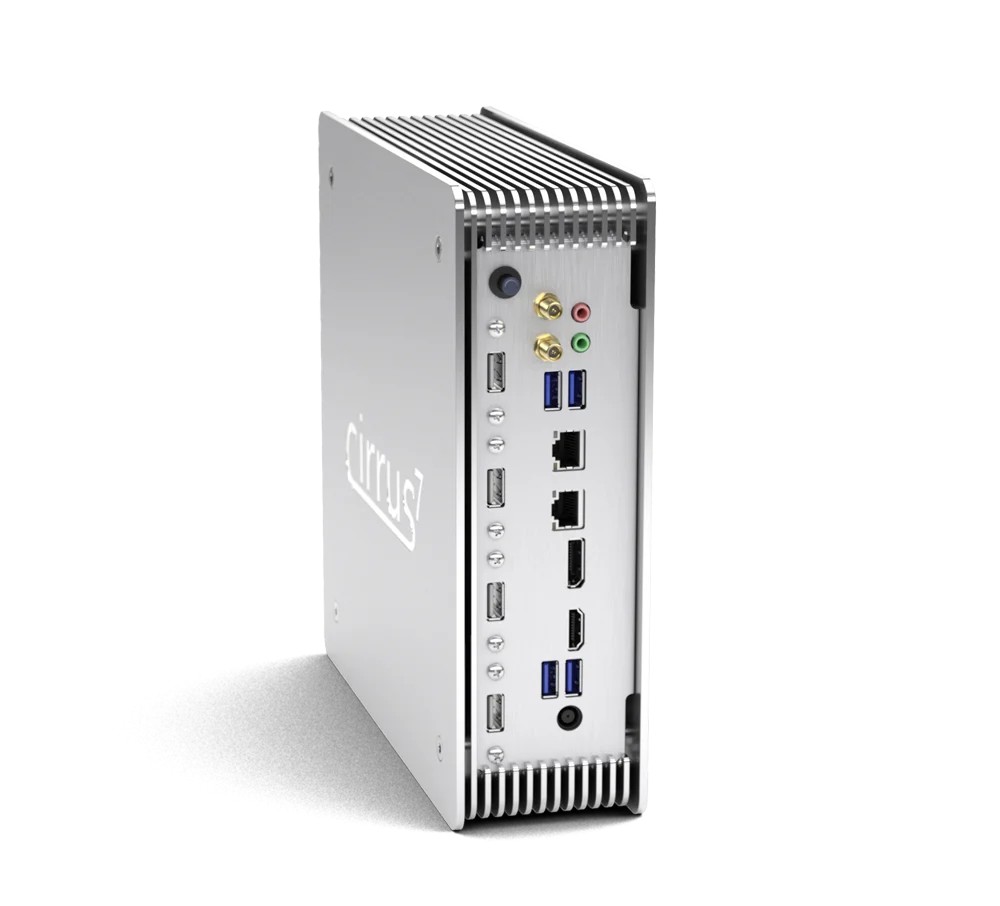

Cirrus 7
