Morefine S500+ 5300U

Morefine

S500+ 5300U

CPU r3 5300U

GPU Vega 6

Max RAM 64GB

Drives 3

From $200

Seller Morefine

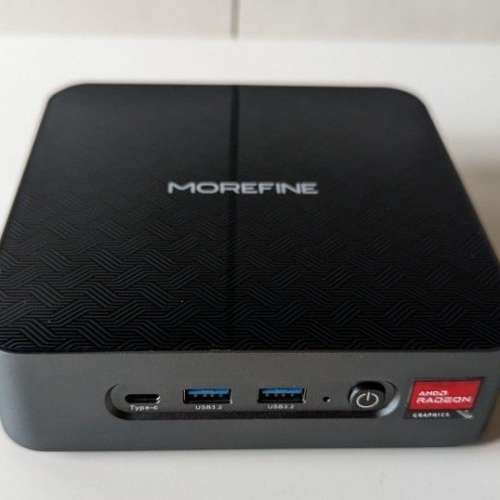

The Morefine S500+ 5300U is a mini PC powered by the AMD r3 5300U (Zen 2+ gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 6. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 150 × 145 × 40mm (0.87L). Uses a Brick PSU (120W), 15W TDP.

CPU & Performance

CPUr3 5300U

GenerationZen 2+

P-Cores4

Threads8

Single-core47

Multi-core14

Socket0

GPU

GPUVega 6

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen3 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet2G

2.5G ports1

1G ports1

vProN

Physical

Dimensions150 × 145 × 40 mm

Volume0.87L

Fan size70mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU120W

Pricing

16GB / 512GB$250

16GB / 1TB$270

32GB / 1TB$290

64GB / 1TB$340

Notes

Sep 5 2024: ECC RAM not supported https://www.reddit.com/u/SerMumble/s/TZOpx5BmZo
