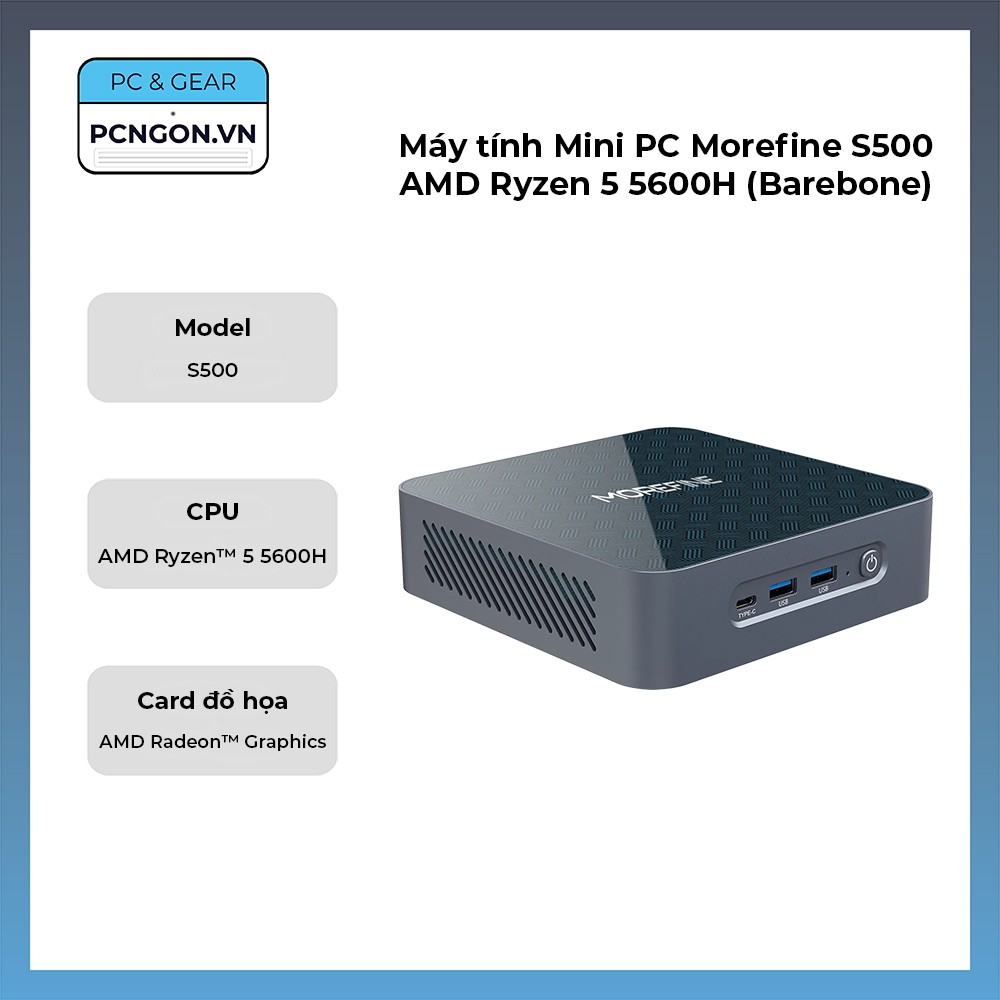

Morefine
S500+ 5600H
CPU r5 5600H
GPU Vega 7
Max RAM 64GB
Drives 3
From $305
Seller Aliexpress
The Morefine S500+ 5600H is a mini PC powered by the AMD r5 5600H (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 150 × 145 × 40mm (0.87L). Uses a Brick PSU (120W), 45W TDP.
CPU & Performance
CPUr5 5600H
GenerationZen 3
P-Cores6
Threads12
Single-core58
Multi-core25
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen3 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
2.5G ports1
1G ports1
vProN
Physical
Dimensions150 × 145 × 40 mm
Volume0.87L
Fan size70mm
Warranty1 yr
Power
TDP45W
PSU typeBrick
PSU120W
Notes
Sep 5 2024: ECC RAM not supported https://www.reddit.com/u/SerMumble/s/TZOpx5BmZo
Discover More

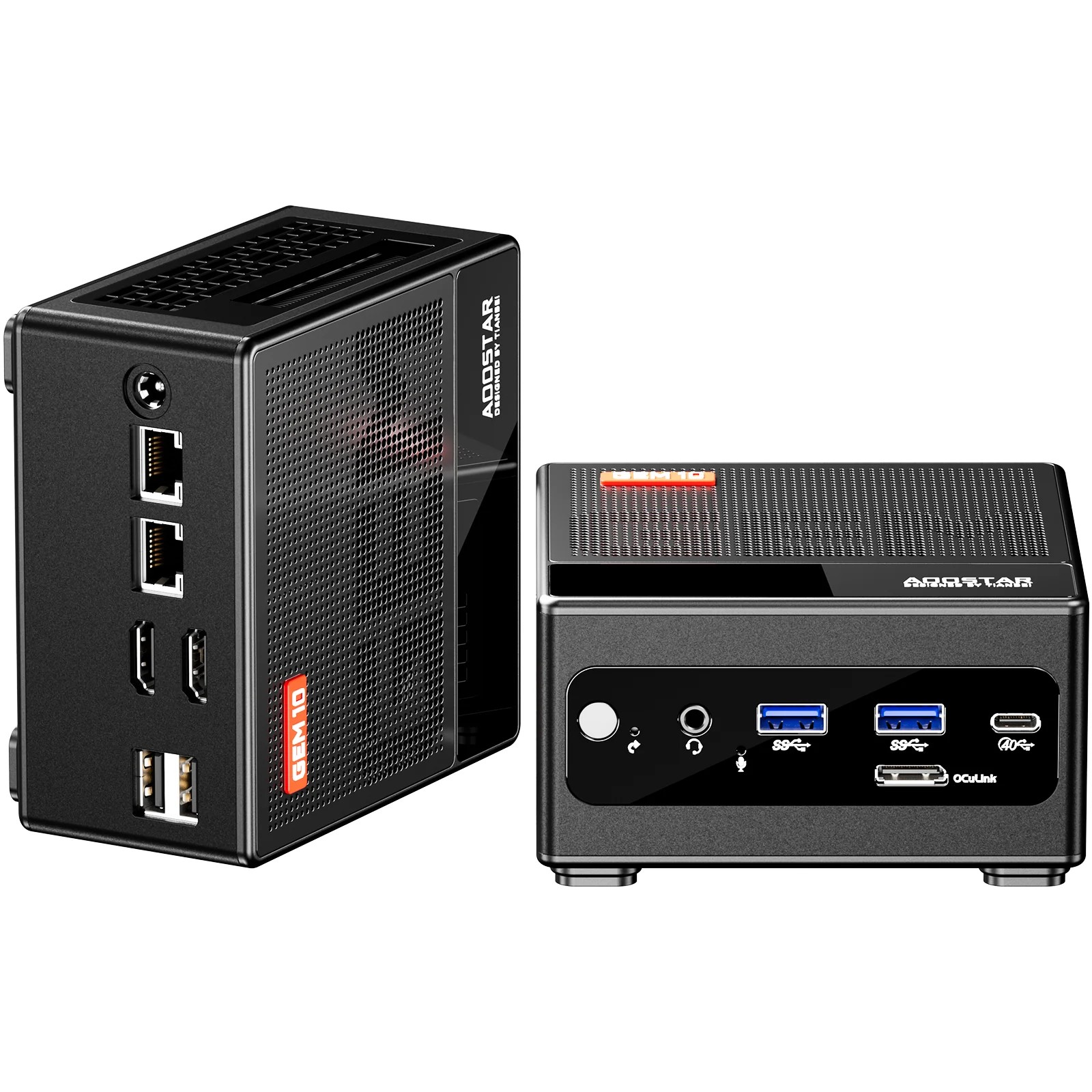

AOOSTAR
MN6X / AM20 7735HS
$220
AOOSTAR MN6X / AM20 7735HS features AMD r7 7735HS/6800H, 32GB RAM, offering 2× 2.5G Ethernet and USB4.
CPU AMD r7 7735HS/6800H
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA2 680M
RAM 32GB
Speed 6400 MT/s
Drives 3 (3 NVMe)
Ethernet 2 (2.5G)
Size 108×108×40mm
Vol 0.47L

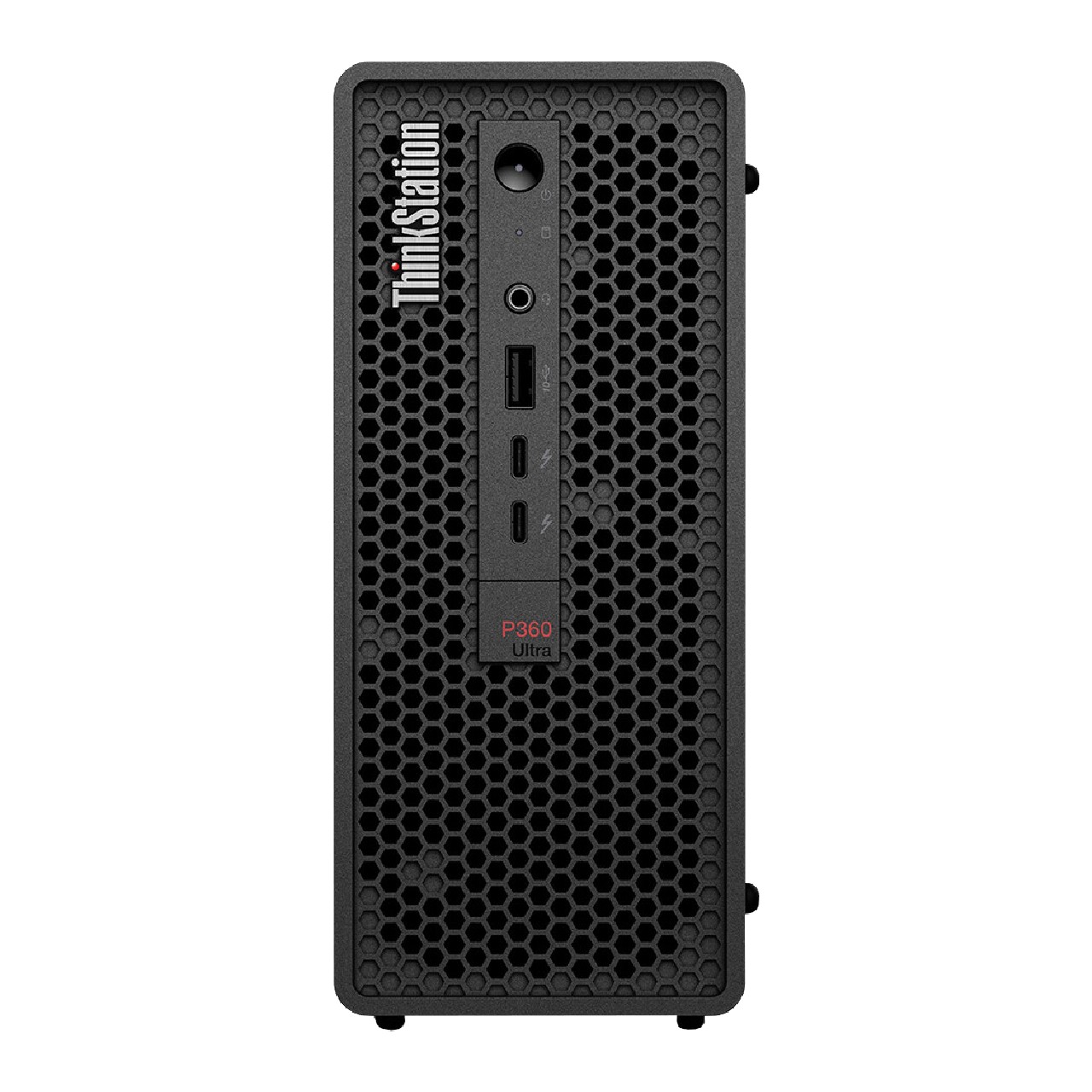

Lenovo
P360 Ultra
Lenovo P360 Ultra features Intel i5 12600T with NVIDIA T400 discrete GPU, offering USB4.
CPU Intel i5 12600T
Cores / Threads 6 / 12
Socket LGA1700
GPU NVIDIA T400
RAM 128GB / 4slots
Speed 4800 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU Brick
Size 223×202×86mm
Vol 3.87L

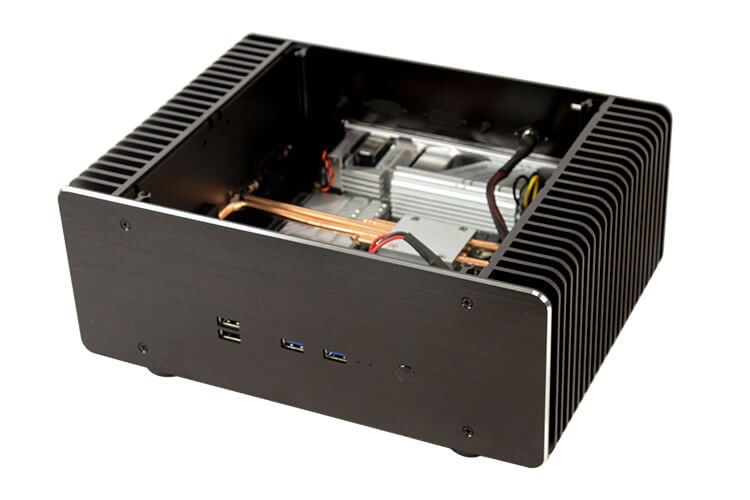

Akasa
