Morefine S500+ 5625U

Morefine

S500+ 5625U

CPU r5 5625U

GPU Vega 7

Max RAM 64GB

Drives 3

From $270

Seller Morefine

The Morefine S500+ 5625U is a mini PC powered by the AMD r5 5625U (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 150 × 145 × 40mm (0.87L). Uses a Brick PSU (120W), 15W TDP.

CPU & Performance

CPUr5 5625U

GenerationZen 3

P-Cores6

Threads12

Single-core58

Multi-core23

Socket0

GPU

GPUVega 7

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen3 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet2G

2.5G ports1

1G ports1

vProN

Physical

Dimensions150 × 145 × 40 mm

Volume0.87L

Fan size70mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU120W

Notes

Sep 5 2024: ECC RAM not supported https://www.reddit.com/u/SerMumble/s/TZOpx5BmZo

Discover More

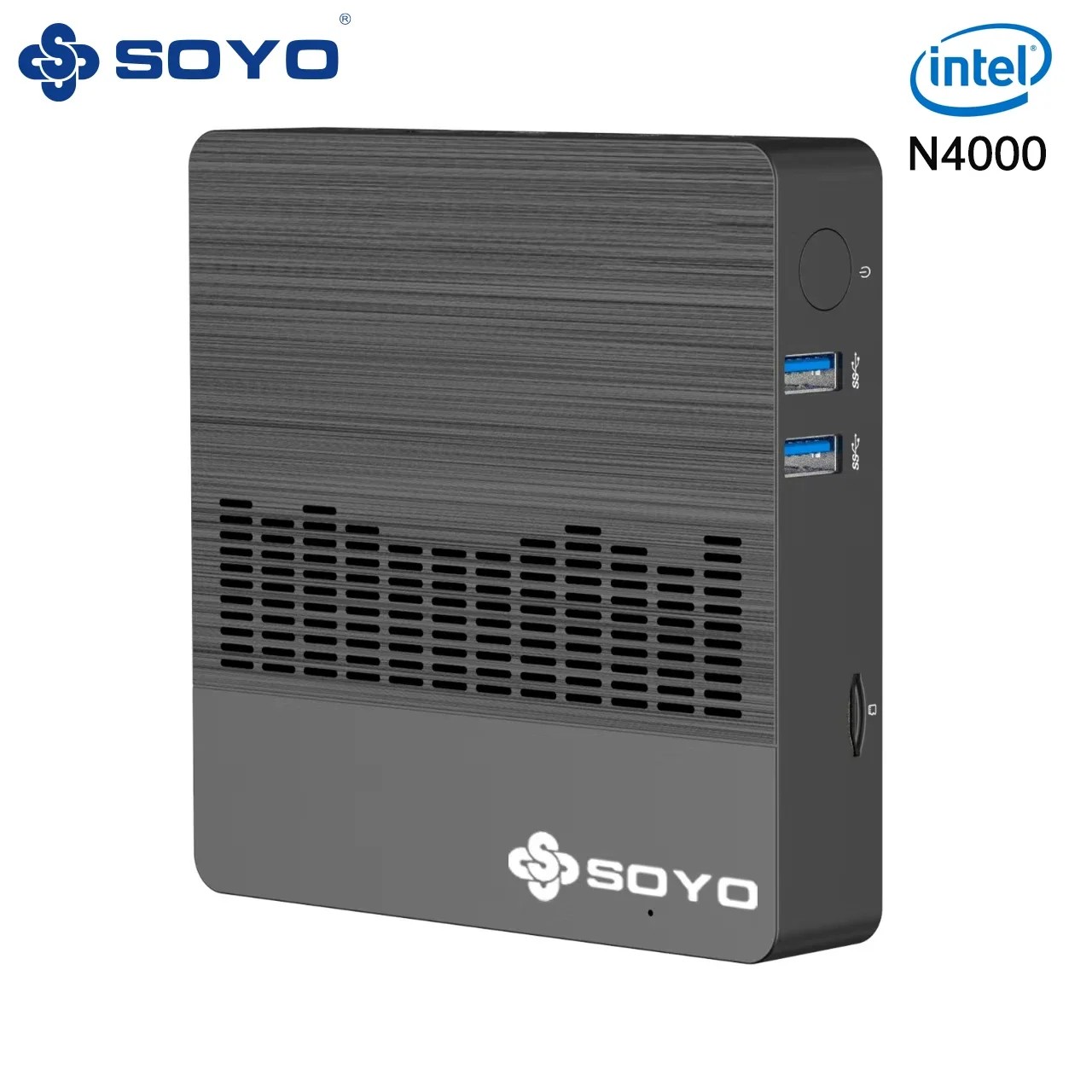

SOYO M2 Air

M2 Air

SOYO M2 Air features Intel Celeron N4000.

CPU Intel Celeron N4000

Cores / Threads – / 2

Socket Soldered

GPU Intel Intel UHD 600

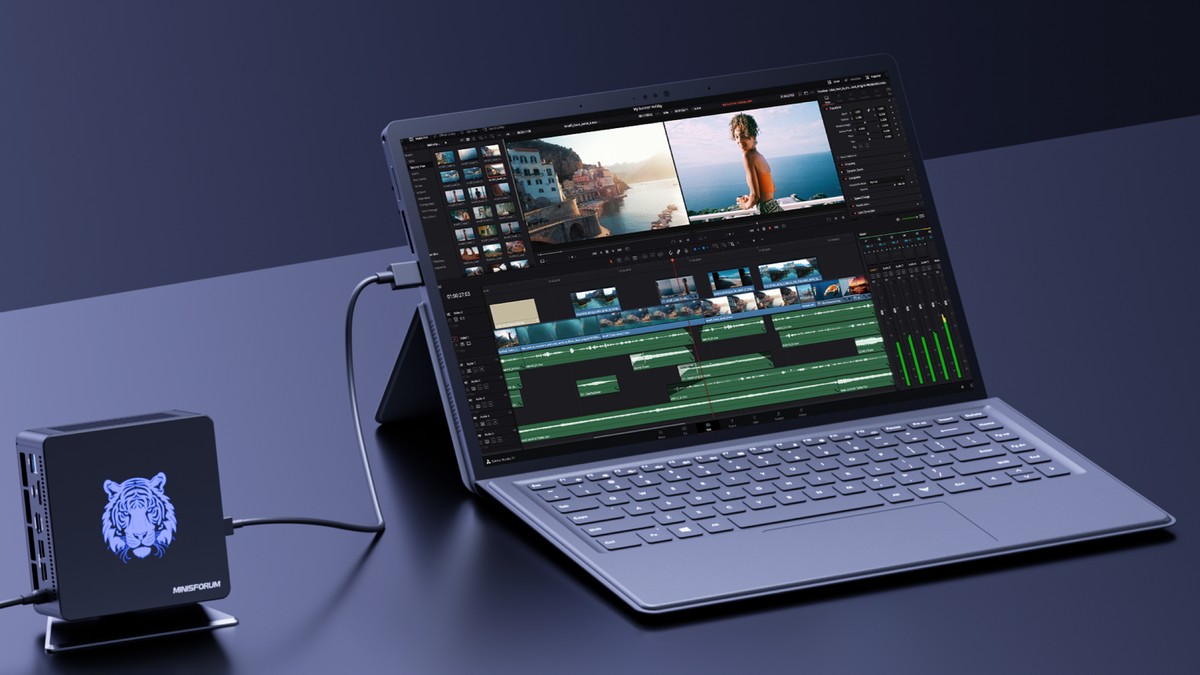

Minisforum V3 3-in-1 Tablet

V3 3-in-1 Tablet

Minisforum V3 3-in-1 Tablet features AMD r7 8840U/7840U, 32GB RAM, offering USB4 and compact 0.71L design.

CPU AMD r7 8840U/7840U

Cores / Threads 8 / 16

Socket Soldered

GPU AMD RDNA3 780M

Speed 6400 MT/s

Drives 2 (1 NVMe)

Size 323×219×10mm

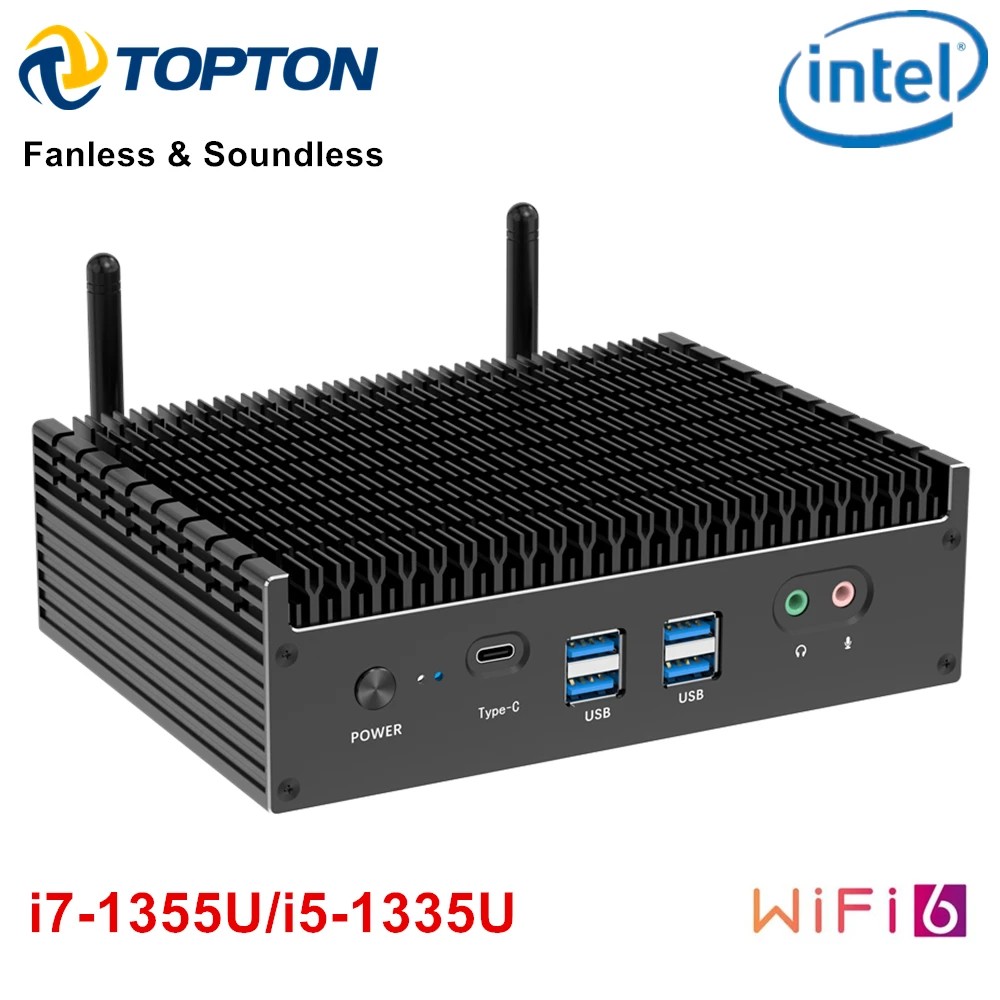

CWWK/Topton 1355U 2SFP 4x2.5G
