Mini PC DataBase

Morefine S500+ 5800U

Morefine

S500+ 5800U

CPU r7 5800U

GPU Vega 8

Max RAM 64GB

Drives 3

From $300

Seller Morefine

The Morefine S500+ 5800U is a mini PC powered by the AMD r7 5800U (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 150 × 145 × 40mm (0.87L). Uses a Brick PSU (120W), 15W TDP.

CPU & Performance

CPUr7 5800U

GenerationZen 3

P-Cores8

Threads16

Single-core60

Multi-core27

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

iGPU FP322048

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen3 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet2G

2.5G ports1

1G ports1

vProN

Physical

Dimensions150 × 145 × 40 mm

Volume0.87L

Fan size70mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU120W

Notes

Sep 5 2024: ECC RAM not supported https://www.reddit.com/u/SerMumble/s/TZOpx5BmZo. Feb 20 2024: $410 to $300

Discover More

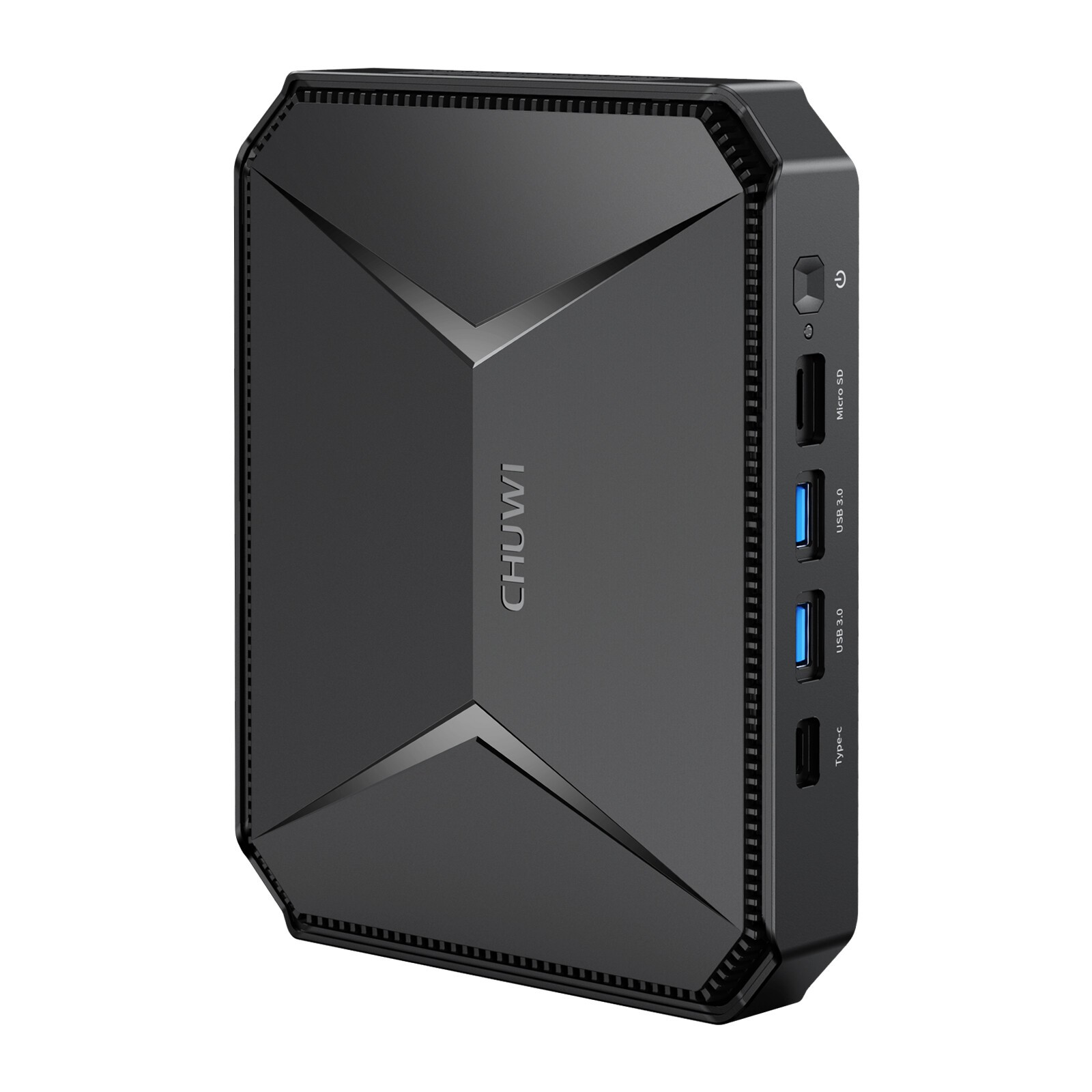

Chuwi HeroBox Pro
