SZBOX
Z66
CPU r7 6600H
GPU RDNA2 660M
Max RAM 64GB
Drives 2
From $185
Seller Aliexpress
The SZBOX Z66 is a mini PC powered by the AMD r7 6600H (Zen 3+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 660M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 137 × 125 × 55mm (0.94L).
CPU & Performance
CPUr7 6600H
GenerationZen 3+
P-Cores6
Threads12
Single-core63
Multi-core26
Socket0
GPU
GPURDNA2 660M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen3 x42
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions137 × 125 × 55 mm
Volume0.94L
Fan size80mm
Power
TDP45W
Pricing
16GB / 512GB$250
16GB / 1TB$275
32GB / 1TB$316
Notes
Mar 27 2025: $200 to $185
Discover More

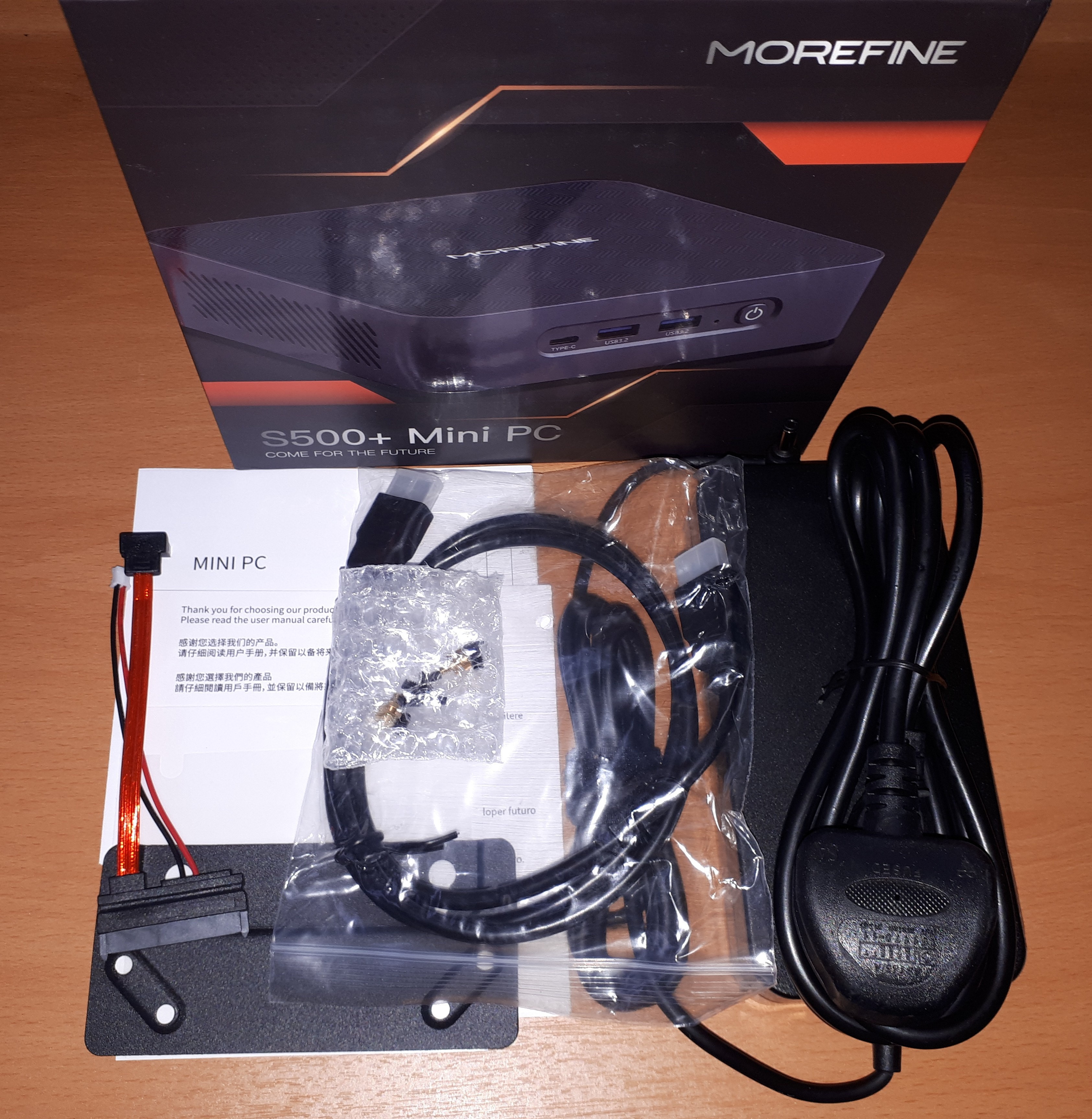

Morefine
S500+ 5700U
Morefine S500+ 5700U features AMD r7 5700U, 64GB RAM, offering 2× 2.5G Ethernet and compact 0.87L design.
CPU AMD r7 5700U
Cores / Threads 4 / 16
Socket Soldered
GPU AMD Vega 8
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
PSU Brick
Size 150×145×40mm
Vol 0.87L

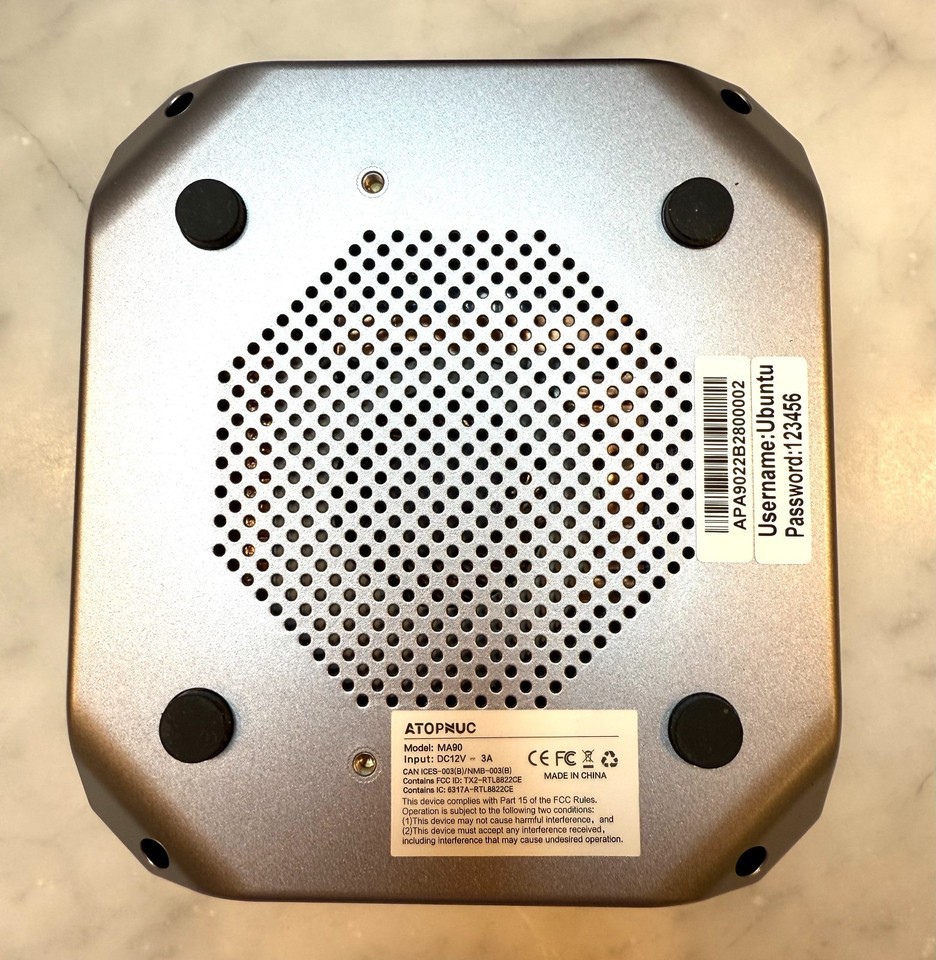

ATOPNUC
MA90 Ubuntu
$40
ATOPNUC MA90 Ubuntu features AMD A9 A9-9400, 8GB RAM, offering ultra-compact 0.34L form factor.
CPU AMD A9 A9-9400
Cores / Threads 2 / 2
Socket Soldered
GPU AMD Radeon R5
RAM 8GB / 2slots
Speed 1600 MT/s
Drives 3
SATA 1×2.5"
Ethernet 1 (1G)
Size 170×134×15mm
Vol 0.34L

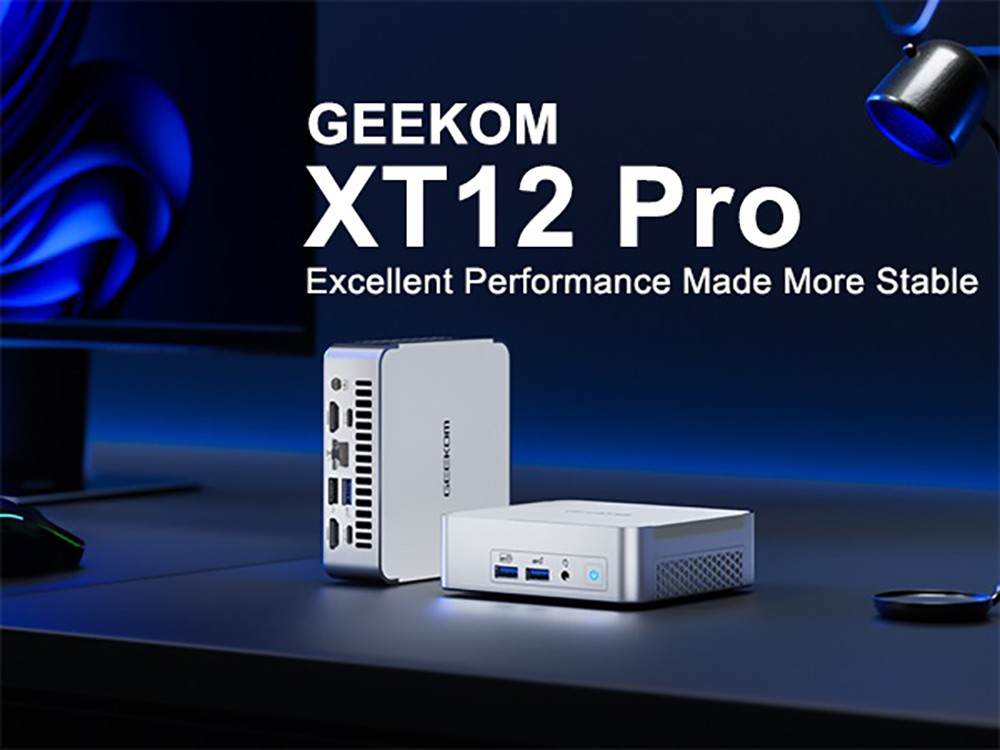

Geekom
