Mini PC DataBase

Simply NUC NUC11BTMi7

Simply NUC

NUC11BTMi7

CPU i7 11700B

GPU Desktop GPU Slot

Max RAM 64GB

Drives 7

From $1,020

Seller Simply NUC

The Simply NUC NUC11BTMi7 is a mini PC powered by the Intel i7 11700B (11th gen). It features 8 performance cores and 16 threads and a LGA1200 socket. Graphics are handled by the discrete Desktop GPU Slot. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 7 drives including 4 NVMe, 2× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 357 × 189 × 120mm (8.10L). Uses a SFX PSU (500W), 65W TDP.

CPU & Performance

CPUi7 11700B

Generation11th

P-Cores8

Threads16

Single-core65

Multi-core33

SocketLGA1200

GPU

GPUDesktop GPU Slot

Discrete GPUYes

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives7

NVMe slots4

Gen4 x41

Gen3 x43

2.5" SATA2

SD cardYes

Ports & Connectivity

HDMI 2.11

USB4 40Gbps2

Max displays7

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions357 × 189 × 120 mm

Volume8.1L

Fan size90mm

Warranty3 yr

Power

TDP65W

PSU typeSFX

PSU500W

Discover More

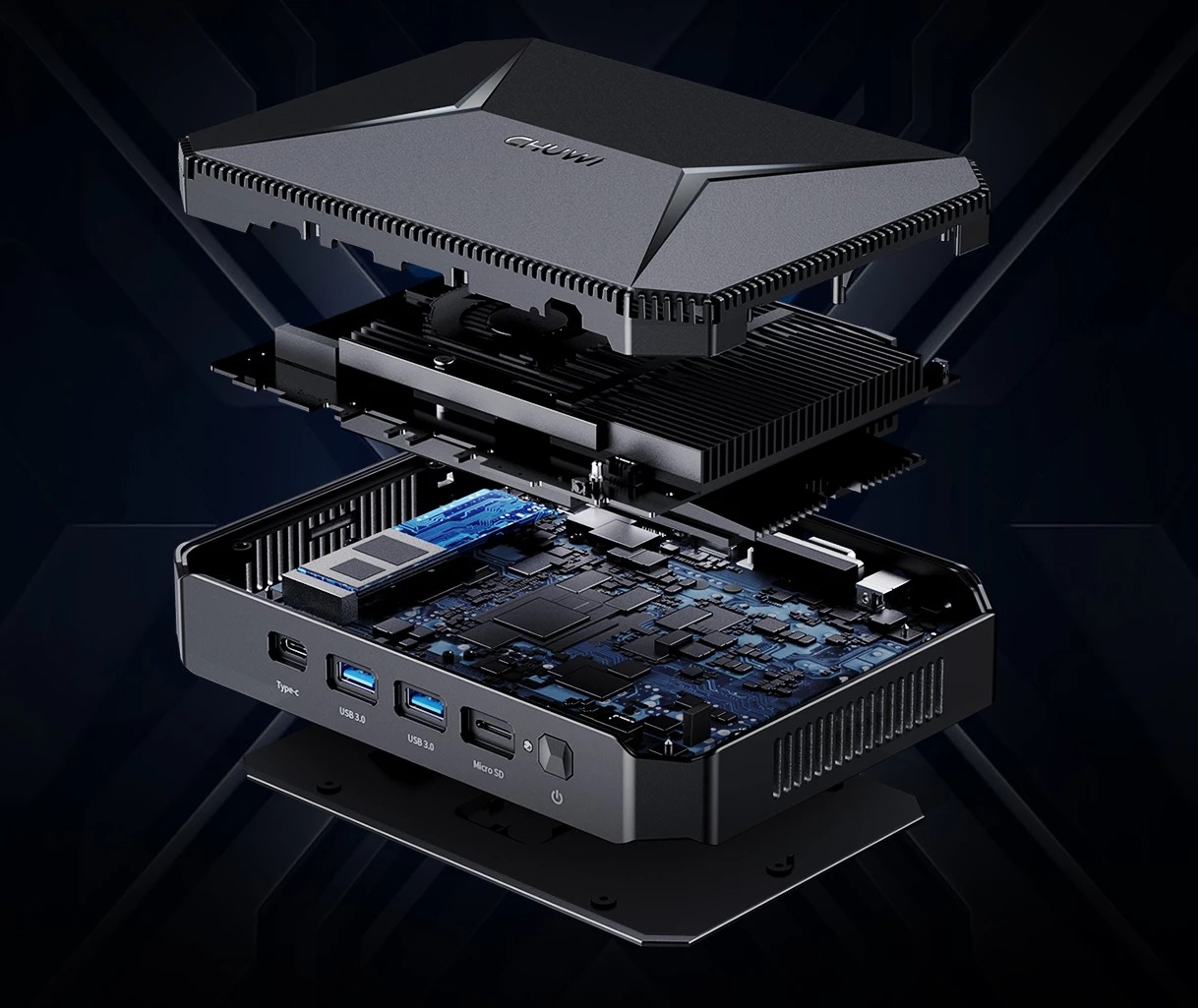

Chuwi Herobox 2023
