Topton
D13 r7 ES 32GB 7940HS
CPU r7 7940HS ES
GPU RDNA3 780M
Max RAM 32GB
Drives 3
From $480
Seller Aliexpress

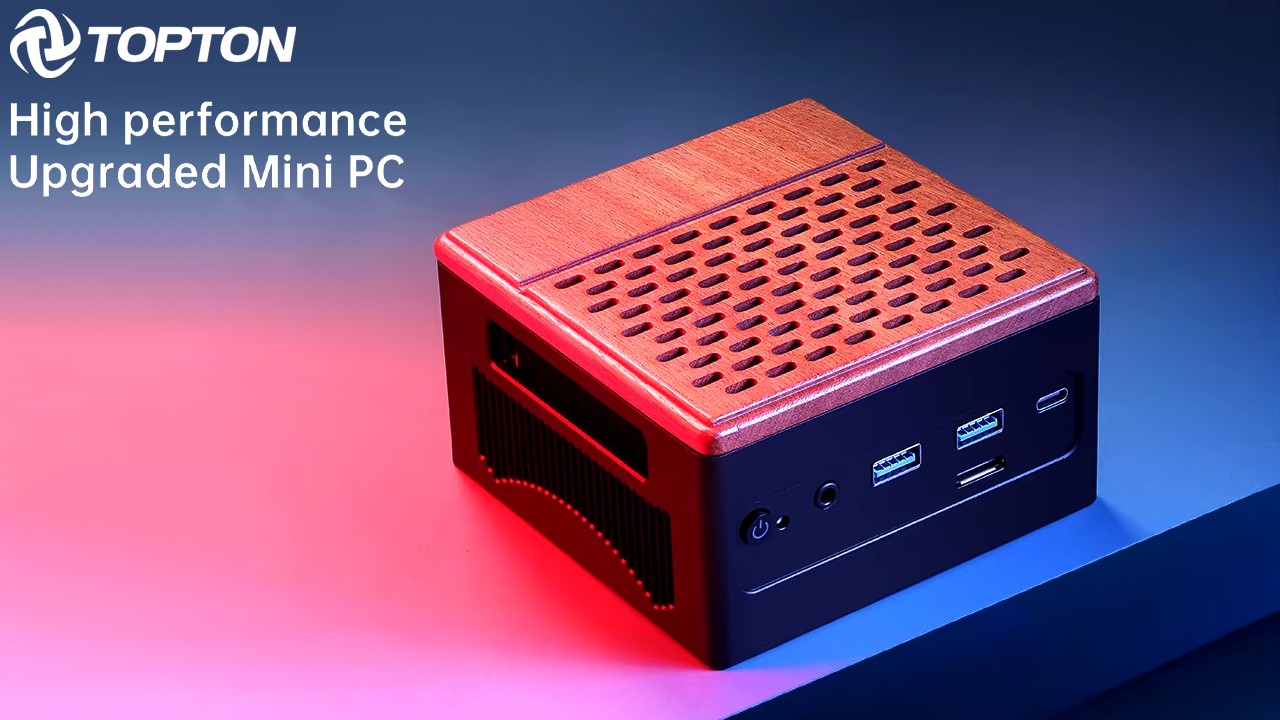

The Topton D13 r7 ES 32GB 7940HS is a mini PC powered by the AMD r7 7940HS ES (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3 780M. Supports up to 32GB of RAM at 6400 MT/s. Storage capacity of up to 3 drives including 3 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 108 × 108 × 60mm (0.70L).
CPU & Performance
CPUr7 7940HS ES
GenerationZen 4
P-Cores8
Threads16
Single-core69
Multi-core40
Socket0
GPU
GPURDNA3 780M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
iGPU FP324300
RAM
Max RAM32GB
Max speed6400 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots3
Gen4 x43
SD cardNo
Ports & Connectivity
HDMI 2.12
USB4 40Gbps1
OCuLinkYes
Max displays3
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions108 × 108 × 60 mm
Volume0.7L
Fan size80mm
Power
Pricing
32GB / 1TB$512
