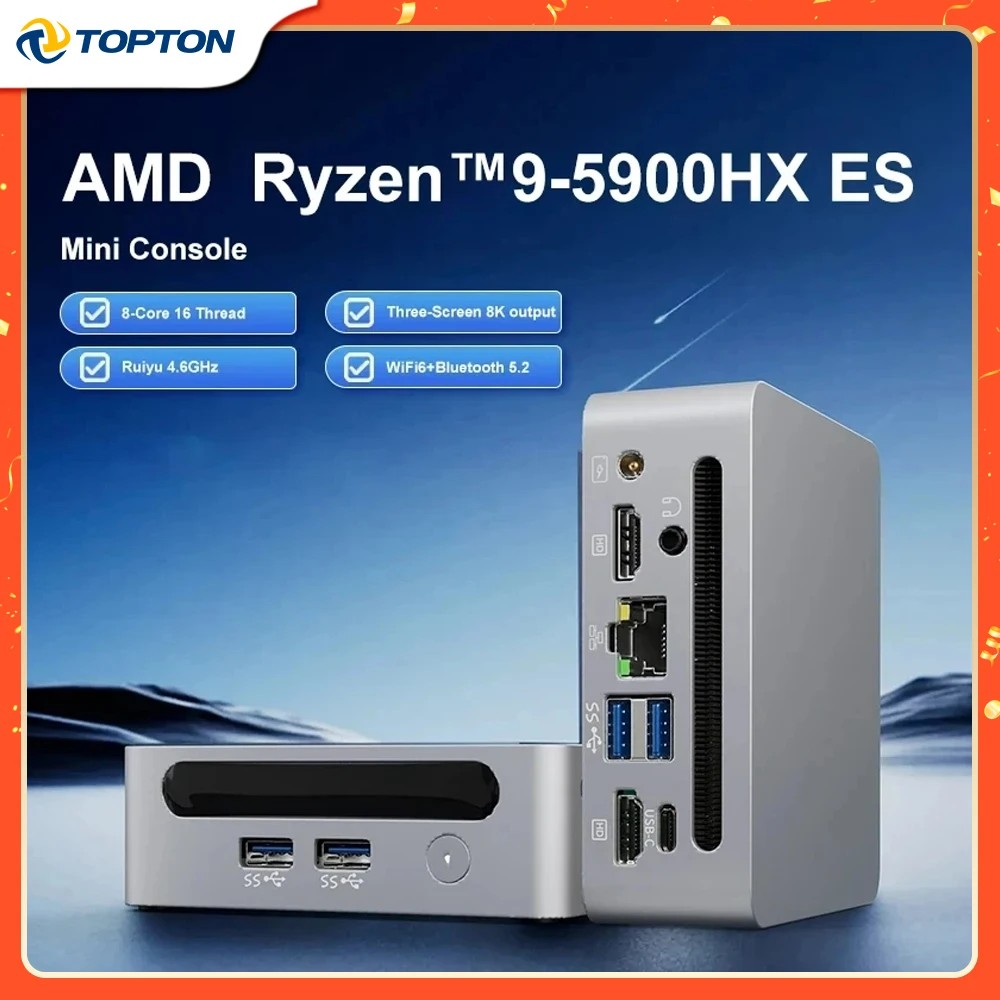

Topton Ranger 5900HX 6600M

Topton

Ranger 5900HX 6600M

CPU r9 5900HX

GPU 6600M?

Max RAM 64GB

Drives 2

From $1,080

Seller Aliexpress

The Topton Ranger 5900HX 6600M is a mini PC powered by the AMD r9 5900HX (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the discrete AMD 6600M?. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 3.5" SATA and 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 360 × 360 × 80mm (10.37L).

CPU & Performance

CPUr9 5900HX

GenerationZen 3

P-Cores8

Threads16

Single-core63

Multi-core33

Socket0

GPU

GPU6600M?

Discrete GPUYes

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen3 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps1

Max displays6

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions360 × 360 × 80 mm

Volume10.37L

Fan size90mm

Power

Notes

I'm not really sure how a 6600M can connect to a PCIe x16 slot because it is a soldered laptop GPU

Discover More

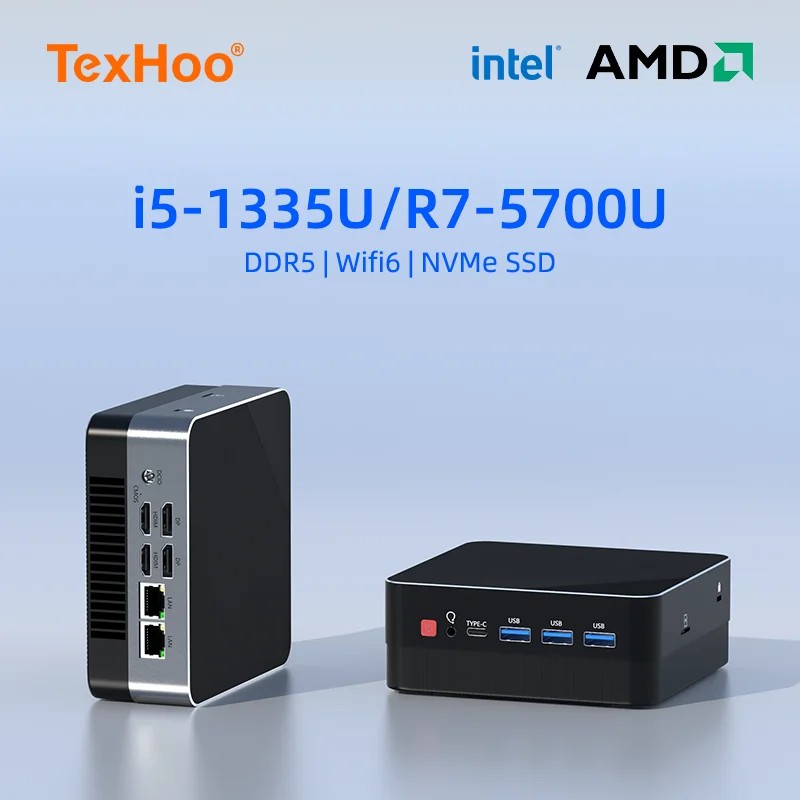

TEXHOO D3 5700U

D3 5700U

TEXHOO D3 5700U features AMD r7 5700U, 32GB RAM.

CPU AMD r7 5700U

Cores / Threads 8 / 16

Socket Soldered

RAM 32GB / 1slot

Speed 3200 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (1G)

Size 194×185×40mm

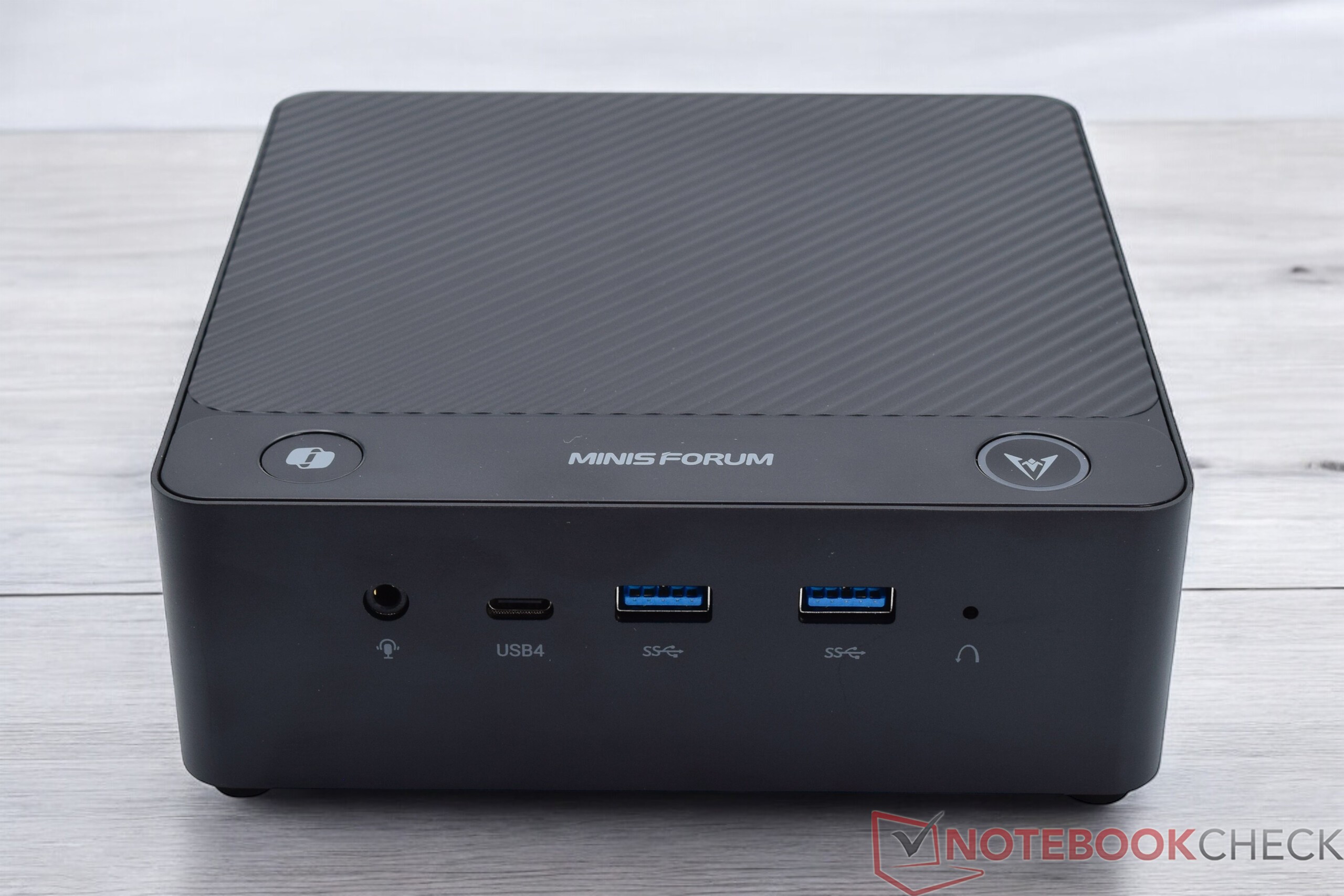

Minisforum UH125 Pro 7800XT
