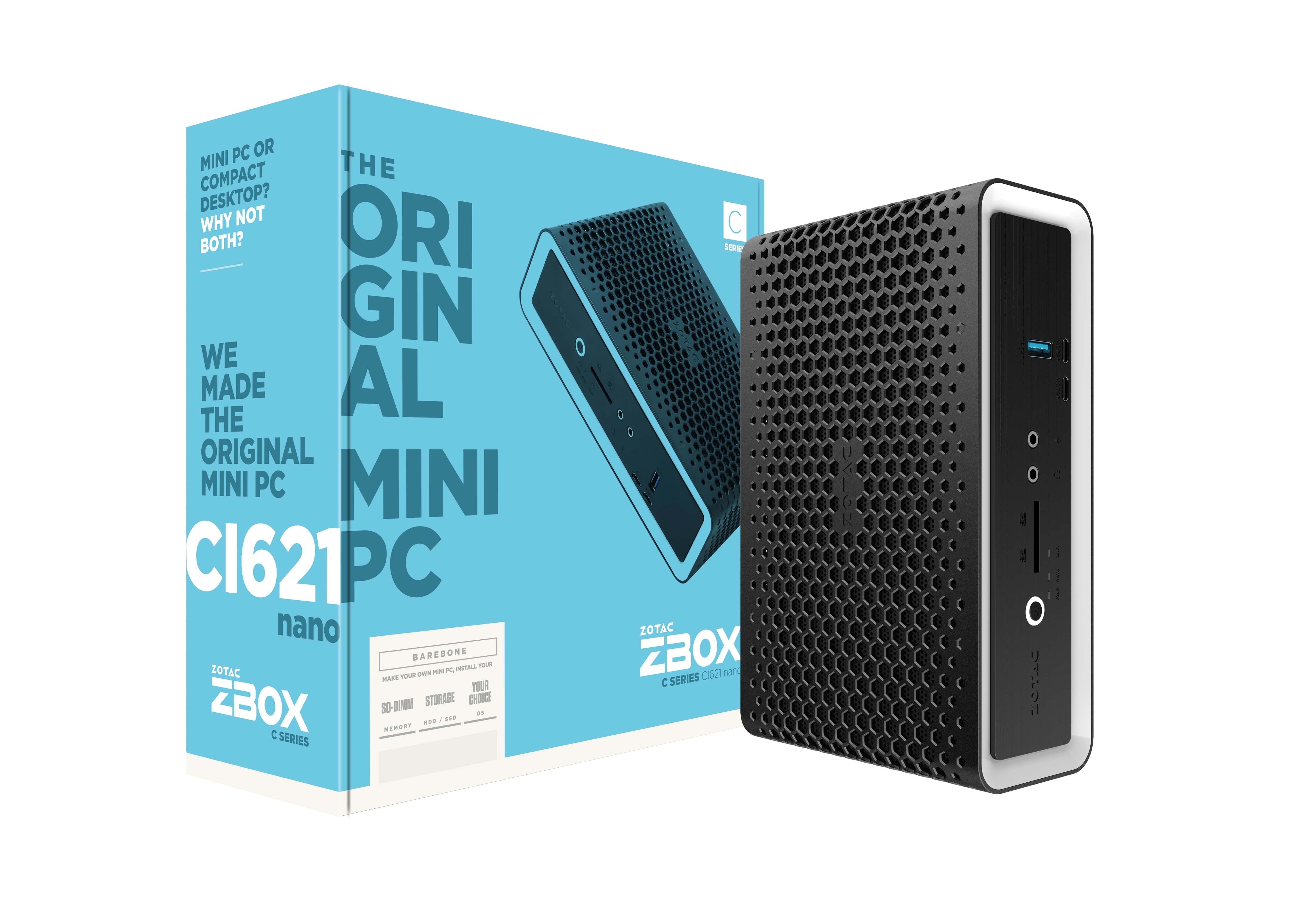

ZOTAC
ZBOX-CI621NANO
CPU i3 8145U
GPU Intel UHD 620
Max RAM 32GB
Drives 3
The ZOTAC ZBOX-CI621NANO is a mini PC powered by the Intel i3 8145U (8th gen). It features 2 performance cores and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 3 drives including 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 204 × 129 × 68mm (1.79L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi3 8145U
Generation8th
P-Cores2
Single-core41
Multi-core6
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives3
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions204 × 129 × 68 mm
Volume1.79L
Warranty2 yr
Power
TDP15W
PSU typeBrick
PSU65W
Discover More

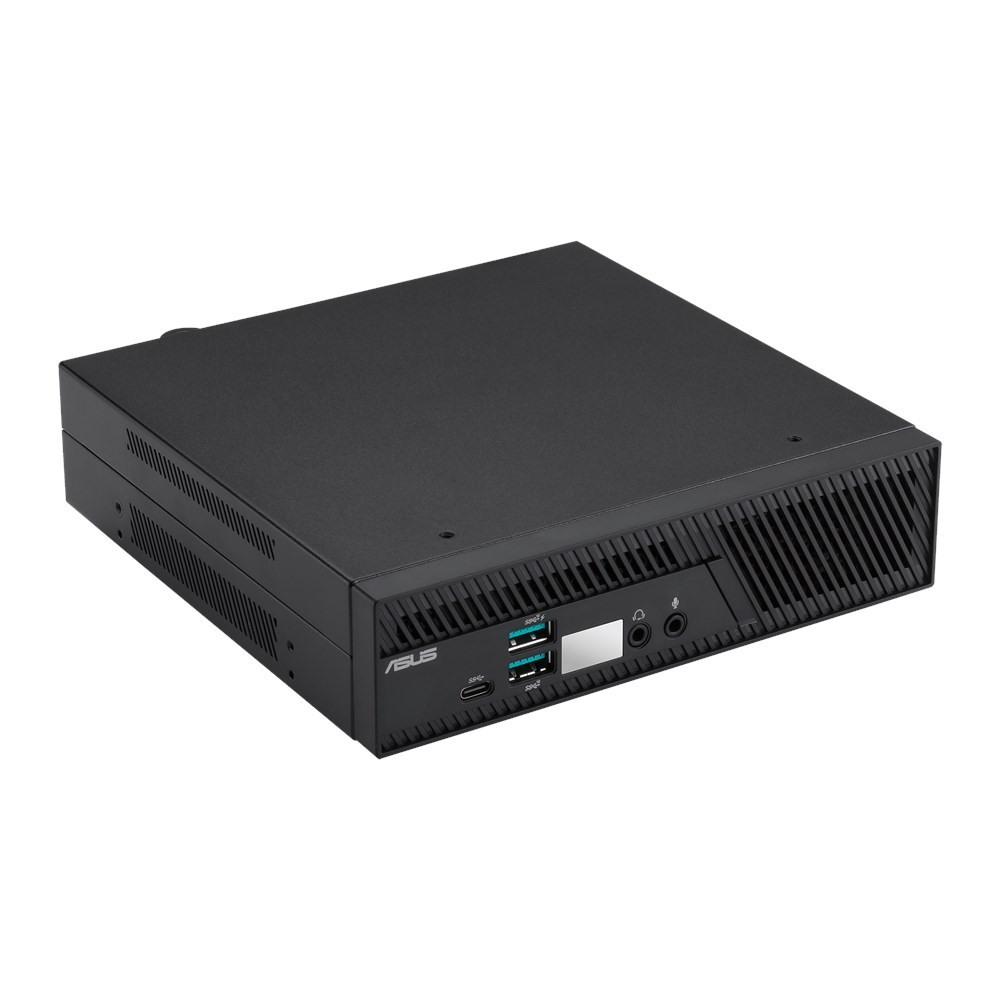

Asus
