ZOTAC
ZBOX-CI642NANO
CPU i5 10210U
GPU Intel UHD 620
Max RAM 32GB
Drives 3
The ZOTAC ZBOX-CI642NANO is a mini PC powered by the Intel i5 10210U (10th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2666 MT/s. Storage capacity of up to 3 drives including 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 204 × 129 × 68mm (1.79L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi5 10210U
Generation10th
P-Cores4
Threads8
Single-core43
Multi-core9
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2666 MT/s
ECC supportNo
Storage
Max drives3
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions204 × 129 × 68 mm
Volume1.79L
Warranty2 yr
Power
TDP15W
PSU typeBrick
PSU65W
Discover More
Orange Pi
Pi R1 Plus 1GB
Orange Pi Pi R1 Plus 1GB features ARM ARM RK3328, 1GB RAM.
CPU ARM ARM RK3328
Cores / Threads 4 / 4
Socket Soldered
GPU ARM Mali 450 MP2
RAM 1GB
FIREBAT
TK11
$213
FIREBAT TK11 features Intel i5 11320H, 64GB RAM, offering compact 0.87L design.
CPU Intel i5 11320H
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 138×126×50mm
Vol 0.87L

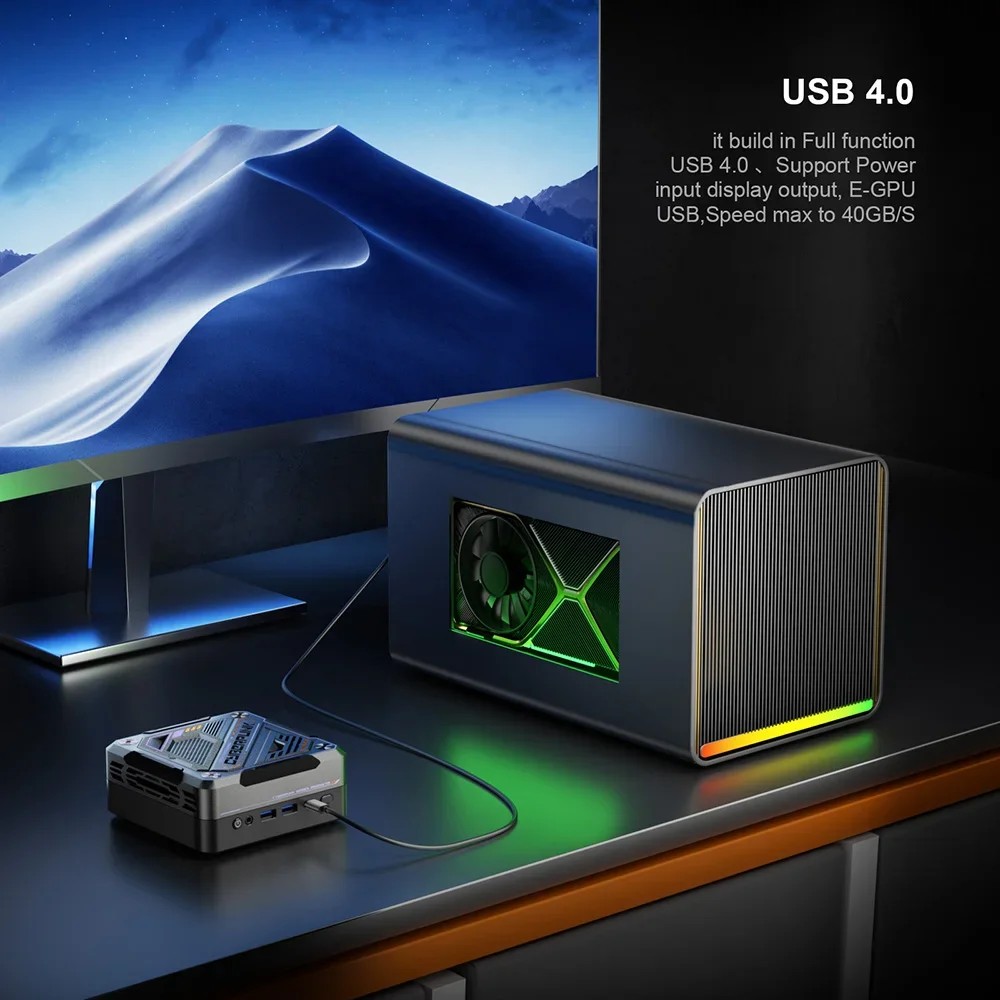

CHATREEY
