ZOTAC
ZBOX-ERP74070W Magnus One
CPU i7 14700
GPU 4070 Super
Max RAM 64GB
Drives 4
The ZOTAC ZBOX-ERP74070W Magnus One is a mini PC powered by the Intel i7 14700 (14th gen). It features 8 performance cores and 28 threads and a LGA1700 socket. Graphics are handled by the discrete NVIDIA 4070 Super. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 266 × 249 × 126mm (8.35L). Uses a SFX PSU (500W).
CPU & Performance
CPUi7 14700
Generation14th
P-Cores8
Threads28
Single-core87
Multi-core61
SocketLGA1700
GPU
GPU4070 Super
Discrete GPUYes
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots2
Gen4 x42
2.5" SATA1
SD cardYes
Ports & Connectivity
HDMI 2.11
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions266 × 249 × 126 mm
Volume8.35L
Fan size90mm
Warranty2 yr
Power
PSU typeSFX
PSU500W
Notes
White Case
Discover More
Beelink
ME Mini
$170
Beelink ME Mini features Intel Celeron N150, 12GB RAM, offering 2× 2.5G Ethernet and compact 0.96L design.
CPU Intel Celeron N150
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 12GB
Speed 4800 MT/s
Drives 6 (6 NVMe)
Ethernet 2 (2.5G)
PSU Custom
Size 98×99×99mm
Vol 0.96L

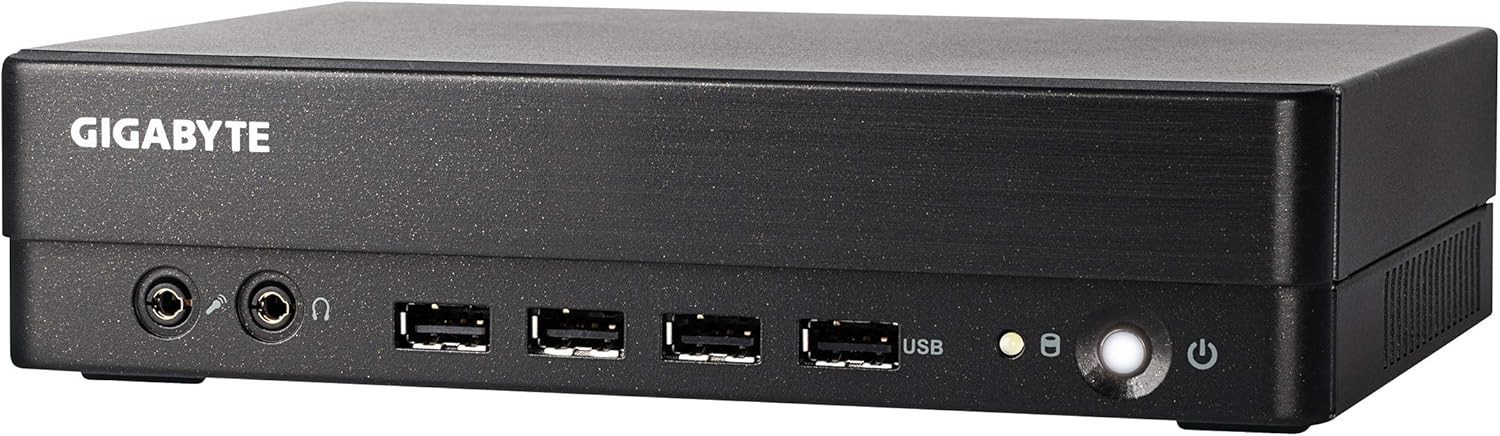

Gigabyte
