ZOTAC
ZBOX-MI642NANO
CPU i5 10210U
GPU Intel UHD 620
Max RAM 32GB
Drives 2
The ZOTAC ZBOX-MI642NANO is a mini PC powered by the Intel i5 10210U (10th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2666 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 128 × 127 × 51mm (0.83L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi5 10210U
Generation10th
P-Cores4
Threads8
Single-core43
Multi-core9
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2666 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions128 × 127 × 51 mm
Volume0.83L
Warranty2 yr
Power
TDP15W
PSU typeBrick
PSU65W
Discover More
Asrock
NUC box 3000
Asrock NUC box 3000 features Intel Celeron N3000, offering compact 0.60L design.
CPU Intel Celeron N3000
Cores / Threads – / 2
Socket Soldered
GPU Intel Intel HD
Speed 1600 MT/s
Drives 2
SATA 1×2.5"
Ethernet 2 (1G)
PSU Brick
Size 119×110×46mm
Vol 0.6L

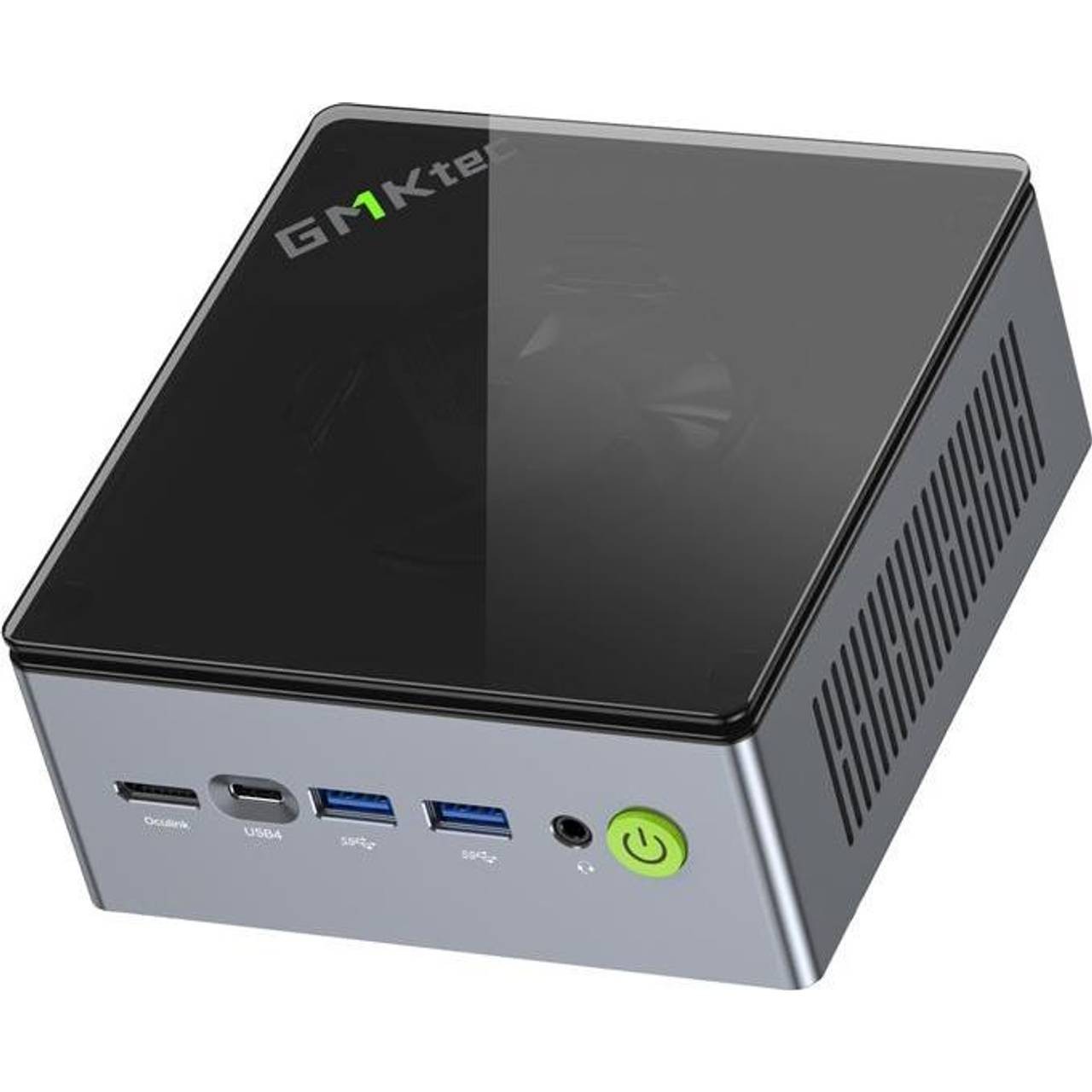

GMKtec
