Mini PC DataBase

AceMagic AM06 Pro 5600U Windows Full Scan

AceMagic

AM06 Pro 5600U Windows Full Scan

CPU r5 5600U

GPU Vega 7

Max RAM 64GB

Drives 2

From $320

Seller Amazon

The AceMagic AM06 Pro 5600U Windows Full Scan is a mini PC powered by the AMD r5 5600U (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 132 × 132 × 50mm (0.87L). Uses a Brick PSU, 15W TDP.

CPU & Performance

CPUr5 5600U

GenerationZen 3

P-Cores6

Threads12

Single-core58

Multi-core23

Socket0

GPU

GPUVega 7

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen3 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet2G

1G ports2

vProN

Physical

Dimensions132 × 132 × 50 mm

Volume0.87L

Fan size70mm

Warranty3 yr

Power

TDP15W

PSU typeBrick

Pricing

16GB / 512GB$320

Notes

Oct 16: My mistake, I misunderstood a users testing. USB C PD in is not supported. USB C Alt mode disables front usb c video output

Discover More

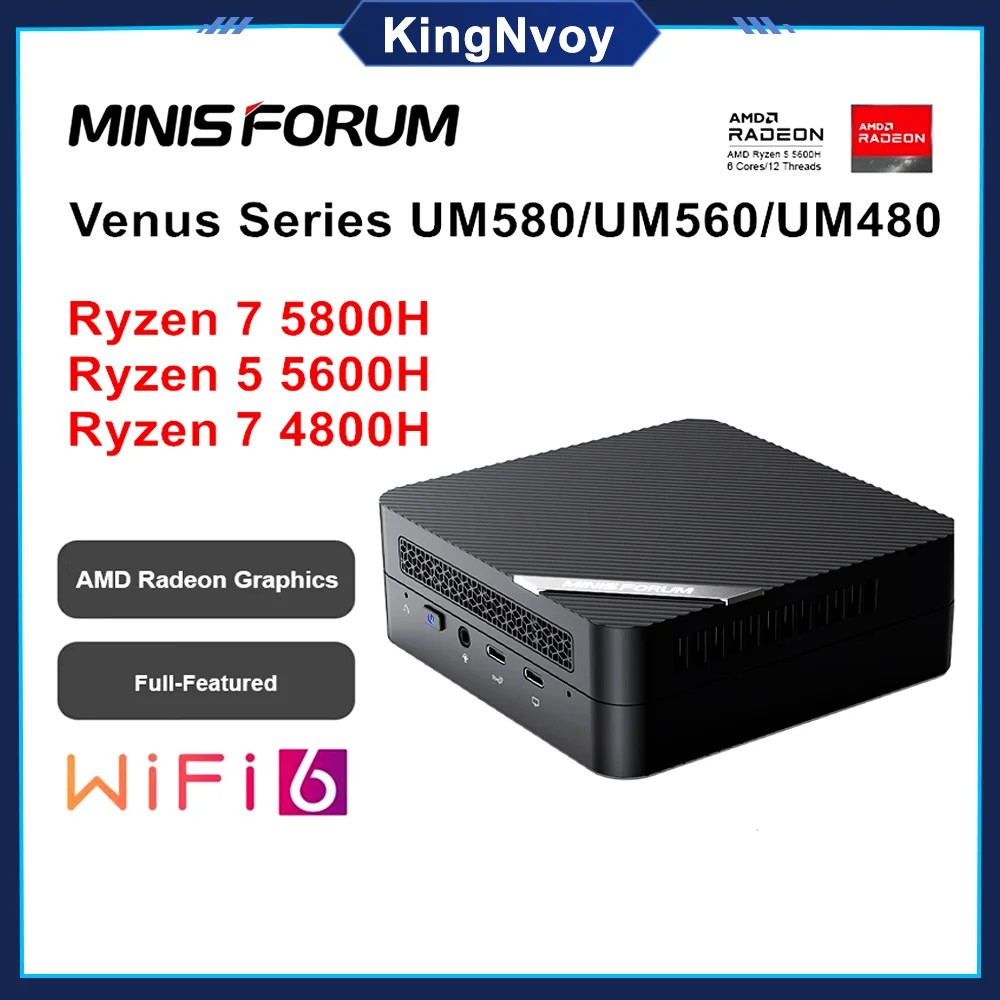

Minisforum UM580D

UM580D

Minisforum UM580D features AMD r7 5800H, 64GB RAM, offering compact 0.76L design.

CPU AMD r7 5800H

Cores / Threads 8 / 16

Socket Soldered

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 2 (1 NVMe)

Ethernet 1 (1G)

Size 128×127×47mm

CWWK/Topton 5600U 4 NIC

5600U 4 NIC

CWWK/Topton 5600U 4 NIC features AMD r5 5600U, 64GB RAM, offering 4× 2.5G Ethernet.

CPU AMD r5 5600U

Cores / Threads 6 / 12

Socket Soldered

RAM 64GB / 2slots

Speed 3200 MT/s

Ethernet 4 (2.5G)

Size 168×132×60mm

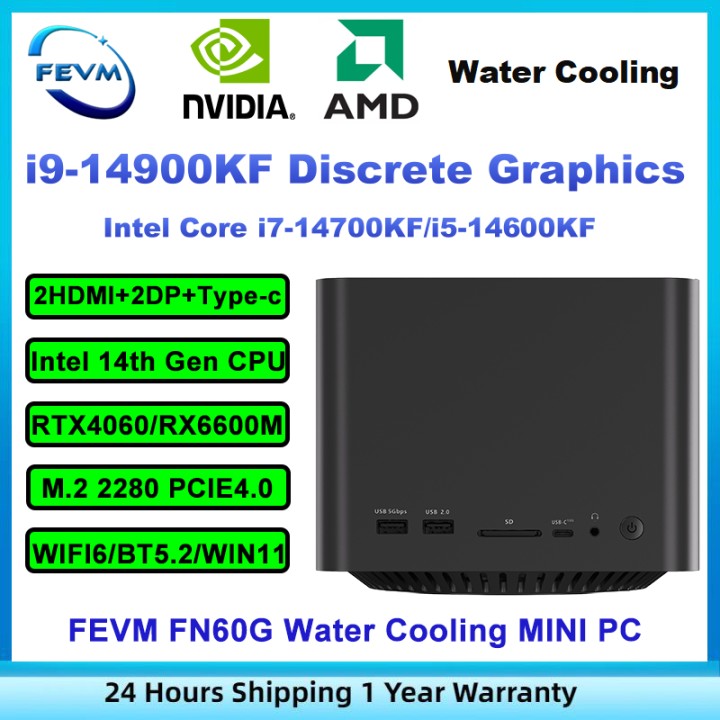

FEVM FN60G WE 14700KF 6600M
