Mini PC DataBase

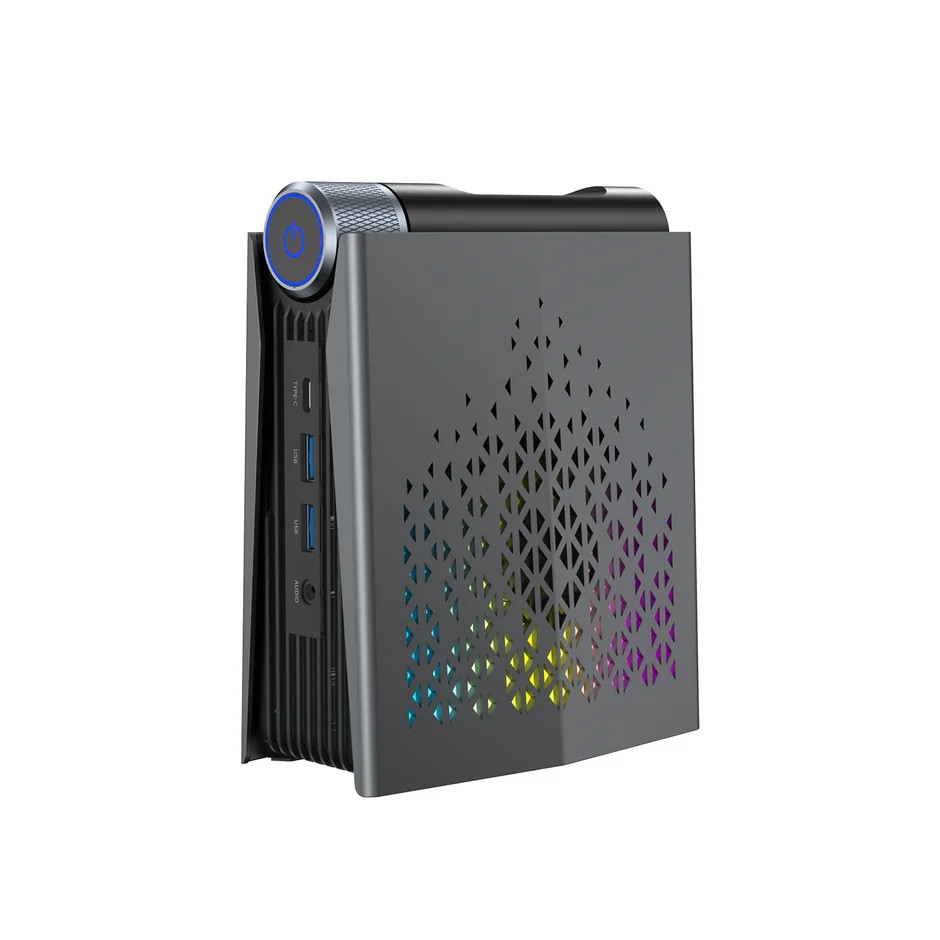

AceMagic S3A / AMR5 5875U

AceMagic

S3A / AMR5 5875U

CPU r7 5875U

GPU Vega 8

Max RAM 64GB

Drives 2

From $300

Seller Amazon

The AceMagic S3A / AMR5 5875U is a mini PC powered by the AMD r7 5875U (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 156 × 133 × 72mm (1.49L). Uses a Brick PSU, 15W TDP.

CPU & Performance

CPUr7 5875U

GenerationZen 3

P-Cores8

Threads16

Single-core60

Multi-core27

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

iGPU FP322048

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen3 x42

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet1G

1G ports1

vProN

Physical

Dimensions156 × 133 × 72 mm

Volume1.49L

Fan size80mm

Warranty3 yr

Power

TDP15W

PSU typeBrick

Pricing

16GB / 512GB$300

Notes

3 mode TDP toggle switch

Discover More

Banana Pi BPI-F2S FPGA 128MB

BPI-F2S FPGA 128MB

Banana Pi BPI-F2S FPGA 128MB features ARM ARM SP7021, 0.1GB RAM, offering ultra-compact 0.23L form factor.

CPU ARM ARM SP7021

Cores / Threads 4 / 4

Socket Soldered

Ethernet 2 (1G)

Size 135×80×21mm

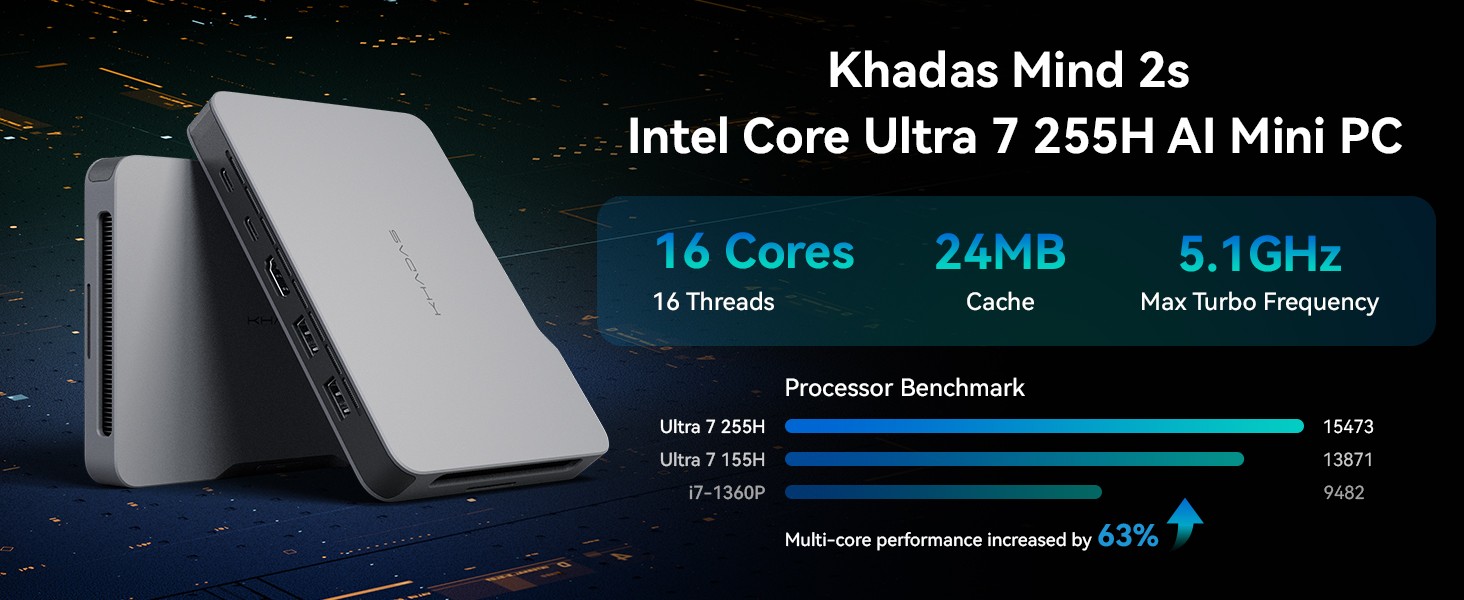

Khadas Mind 2S
