Asrock

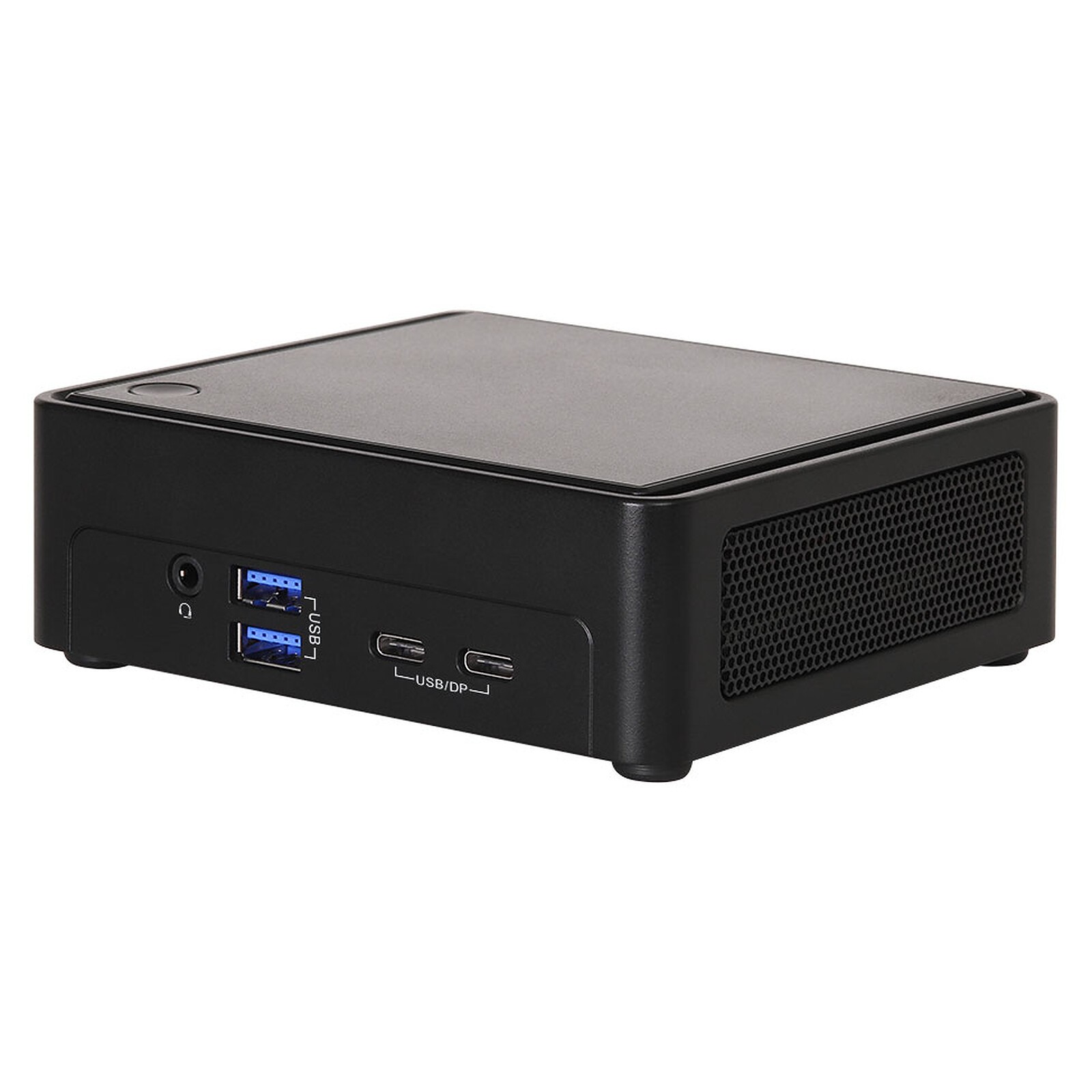

NUCS Box-125H
CPU U5 125H
GPU Arc 7 Xe (112EU)
Max RAM 96GB
Drives 2
From $560
Seller Amazon
The Asrock NUCS Box-125H is a mini PC powered by the Intel U5 125H (1st gen). It features 4 performance cores and 18 threads and a soldered CPU. Graphics are handled by the integrated Intel Arc 7 Xe (112EU). Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 118 × 110 × 38mm (0.49L). Uses a Brick PSU (90W), 28W TDP.
CPU & Performance
CPUU5 125H
Generation1st
P-Cores4
Threads18
Single-core70
Multi-core36
Socket0
GPU
GPUArc 7 Xe (112EU)
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM96GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions118 × 110 × 38 mm
Volume0.49L
Fan size80mm
Warranty1 yr
Power
TDP28W
PSU typeBrick
PSU90W
