Asus
NUC 15 Pro 100U
CPU i3 100U
GPU Iris Xe 64EU
Max RAM 96GB
Drives 2
Seller Asus

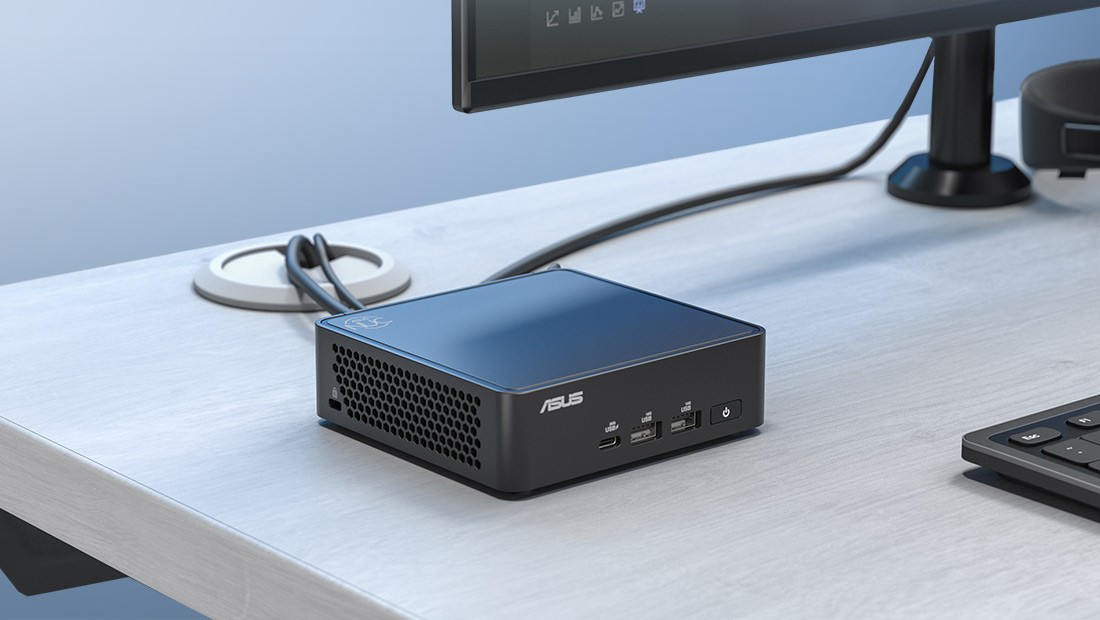

The Asus NUC 15 Pro 100U is a mini PC powered by the Intel i3 100U (13th gen). It features 2 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 64EU. Supports up to 96GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 117 × 112 × 37mm (0.48L). Uses a Brick PSU (90W).
CPU & Performance
CPUi3 100U
Generation13th
P-Cores2
Threads8
Single-core75
Multi-core21
Socket0
GPU
GPUIris Xe 64EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM96GB
RAM slots2
Max speed5200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
USB4 40Gbps2
Max displays4
Network
Max Ethernet1G
2.5G ports1
Physical
Dimensions117 × 112 × 37 mm
Volume0.48L
Fan size80mm
Warranty3 yr
Power
PSU typeBrick
PSU90W
