Mini PC DataBase

Beelink EQR5 5825U

Beelink

EQR5 5825U

CPU r7 5825U

GPU Vega 8

Max RAM 64GB

Drives 2

From $280

Seller Amazon

The Beelink EQR5 5825U is a mini PC powered by the AMD r7 5825U (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 2 Ethernet ports (up to 1G). Dimensions: 126 × 126 × 46mm (0.73L). Uses a Custom PSU (85W), 15W TDP.

CPU & Performance

CPUr7 5825U

GenerationZen 3

P-Cores8

Threads16

Single-core61

Multi-core27

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen3 x42

SD cardNo

Ports & Connectivity

Max displays2

Network

Max Ethernet2G

1G ports2

vProN

Physical

Dimensions126 × 126 × 46 mm

Volume0.73L

Fan size80mm

Warranty1.5 yr

Power

TDP15W

PSU typeCustom

PSU85W

Pricing

16GB / 512GB$280

Notes

Jan 21 2025: 32/500GB for $280 became 16/500GB for $280.

Discover More

CWWK/Topton 1315U 8x2.5G

1315U 8x2.5G

CWWK/Topton 1315U 8x2.5G features Intel i3 1315U, 64GB RAM, offering 8× 2.5G Ethernet.

CPU Intel i3 1315U

Cores / Threads 2 / 8

Socket Soldered

GPU Intel Iris Xe 64EU

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 4 (1 NVMe)

Ethernet 8 (2.5G)

Size 155×132×60mm

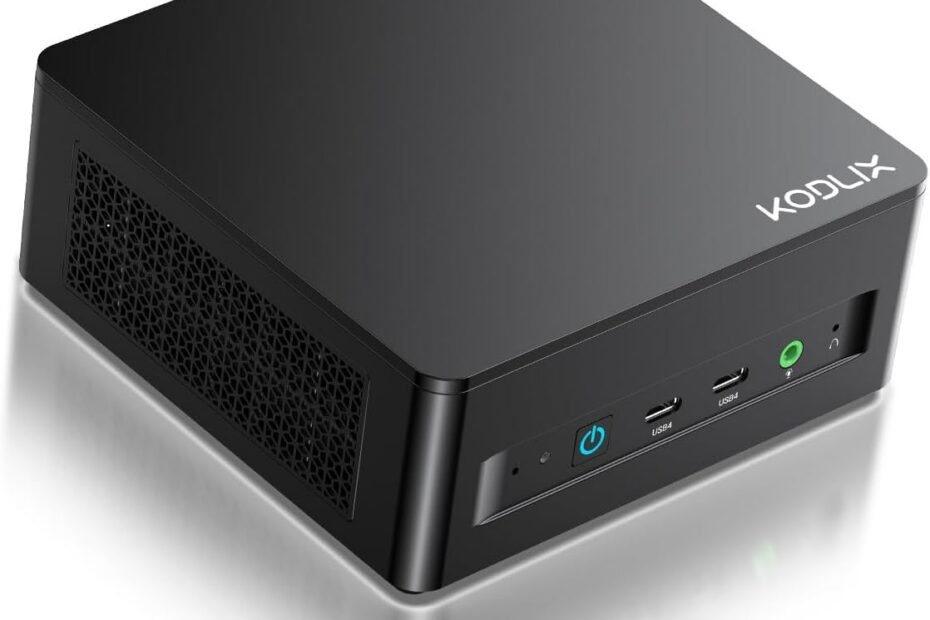

Kodlix AD69 / UM690 Pro
