CWWK/Topton
1235U 8x2.5G
CPU i5 1235U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 4
Seller CWWK/Topton
The CWWK/Topton 1235U 8x2.5G is a mini PC powered by the Intel i5 1235U (12th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 4 drives including 1 NVMe, 2× 2.5" SATA. Networking features 8 Ethernet ports (up to 2.5G). Dimensions: 155 × 132 × 60mm (1.23L).
CPU & Performance
CPUi5 1235U
Generation12th
P-Cores2
Threads12
Single-core63
Multi-core20
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots1
Gen4 x41
2.5" SATA2
SD cardYes
Ports & Connectivity
Max displays4
Network
Max Ethernet8G
2.5G ports8
Physical
Dimensions155 × 132 × 60 mm
Volume1.23L
Fan size80mm
Power
Discover More

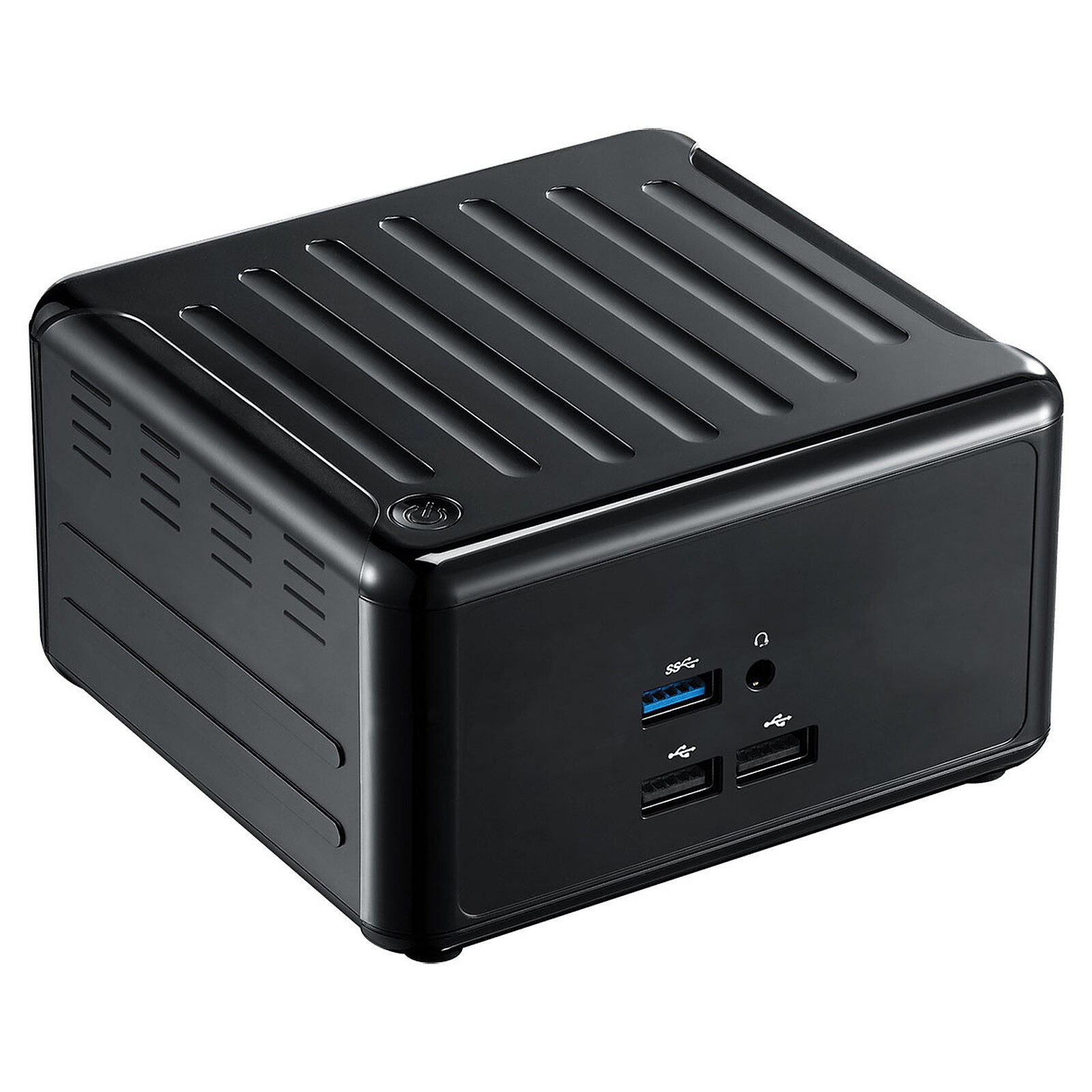

Asrock
4x4 box V1000M
$610
Asrock 4x4 box V1000M features AMD V1000 V1605B, 32GB RAM, offering ECC support and compact 0.88L design.
CPU AMD V1000 V1605B
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 8
RAM 32GB / 2slots
Speed 2400 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU Brick
Size 119×110×67mm
Vol 0.88L

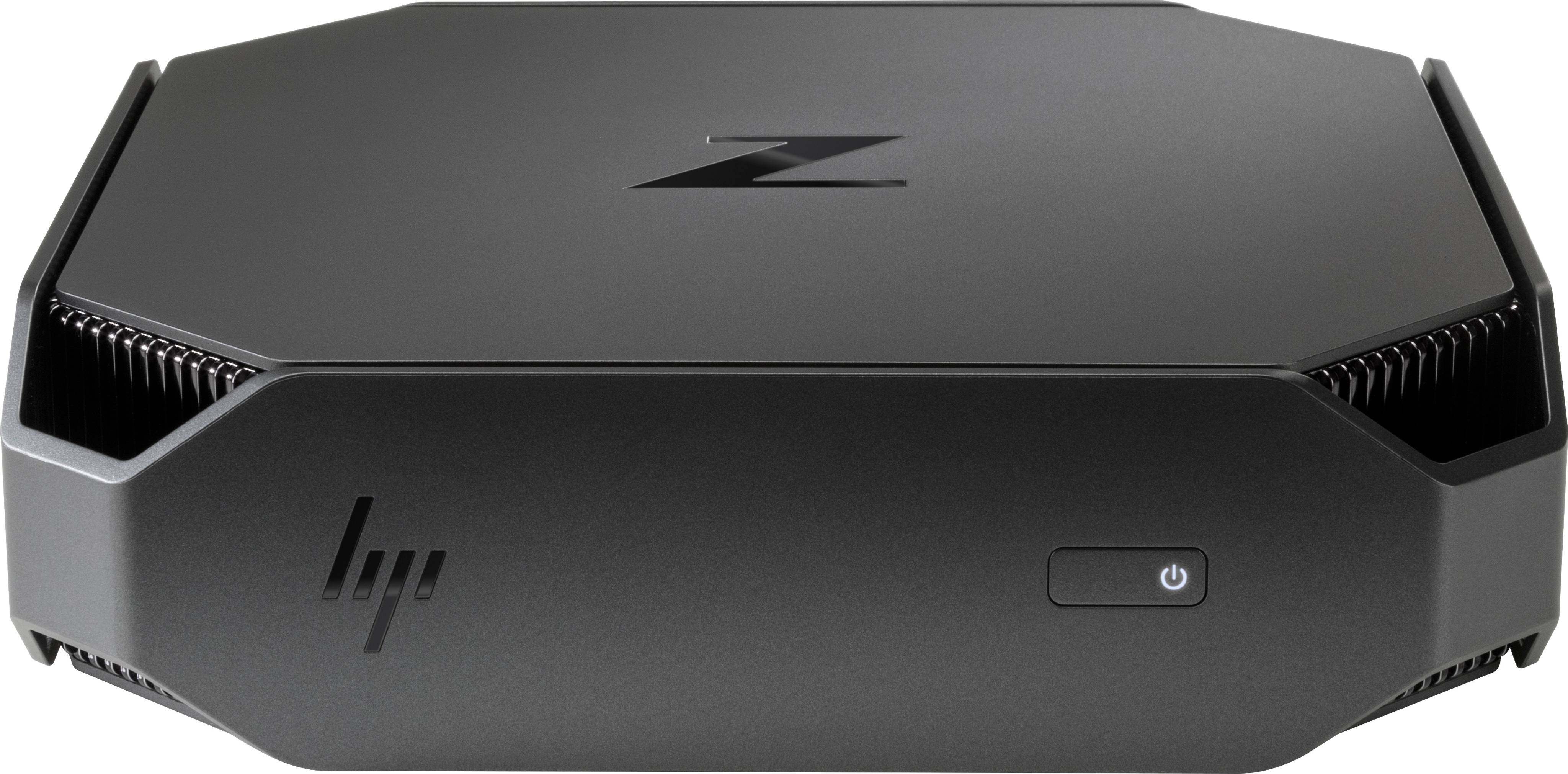

HP
Z2 Mini G4
HP Z2 Mini G4 features Intel Xeon E-2104G, 64GB RAM, offering ECC support.
CPU Intel Xeon E-2104G
Cores / Threads 4 / 4
Socket LGA1151
GPU Intel Intel UHD P630
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 216×216×58mm
Vol 2.71L

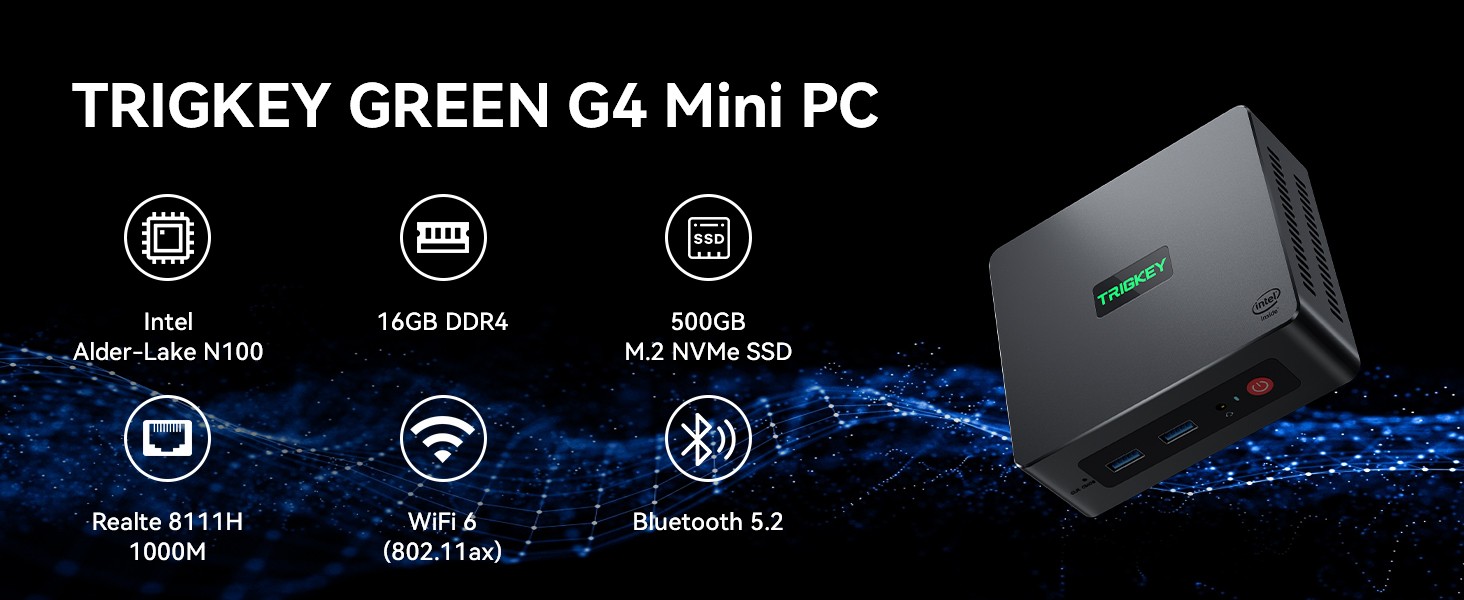

Trigkey
