ECS Elitegroup
LIVA Q3H N5100
CPU Celeron N5100
GPU Jasper Lake 24EU
Max RAM 4GB
Drives 1

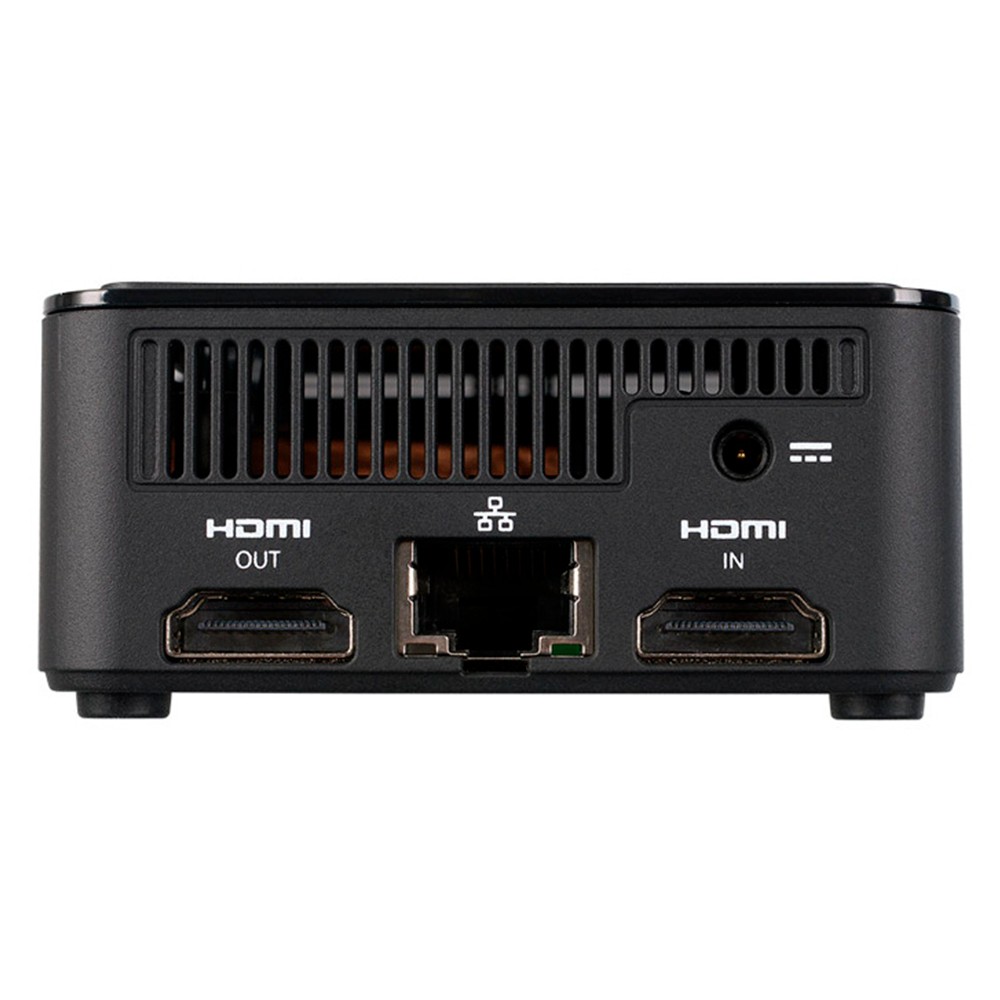

The ECS Elitegroup LIVA Q3H N5100 is a mini PC powered by the Intel Celeron N5100 (11th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Jasper Lake 24EU. Supports up to 4GB of RAM. Storage capacity of up to 1 drive. Networking features 1 Ethernet port (up to 1G). Dimensions: 74 × 74 × 35mm (0.19L).
CPU & Performance
CPUCeleron N5100
Generation11th
Threads4
Single-core27
Multi-core5
Socket0
GPU
GPUJasper Lake 24EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM4GB
ECC supportNo
Storage
Max drives1
SD cardYes
Ports & Connectivity
Max displays1
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions74 × 74 × 35 mm
Volume0.19L
Power
PSU36W
