ECS Elitegroup

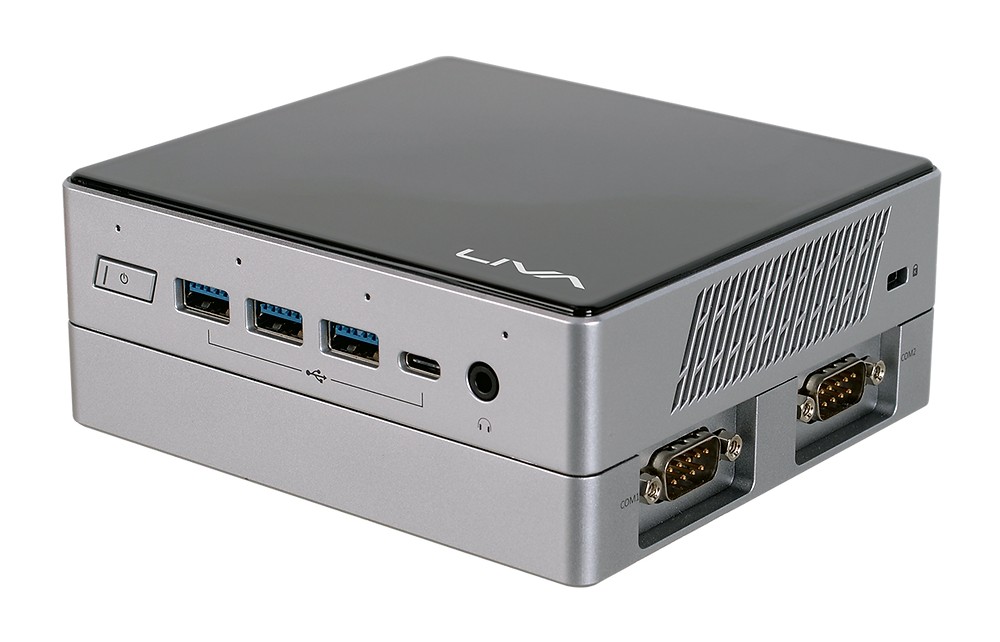

LIVA Z3E Plus 10510U
CPU i7 10510U
GPU Intel UHD 620
Max RAM 64GB
Drives 2
The ECS Elitegroup LIVA Z3E Plus 10510U is a mini PC powered by the Intel i7 10510U (10th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 64GB of RAM across 2 slots at 2666 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 128 × 117 × 53mm (0.79L).
CPU & Performance
CPUi7 10510U
Generation10th
P-Cores4
Threads8
Single-core45
Multi-core10
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2666 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet2G
1G ports2
Physical
Dimensions128 × 117 × 53 mm
Volume0.79L
Power
PSU90W
Discover More
ZOTAC

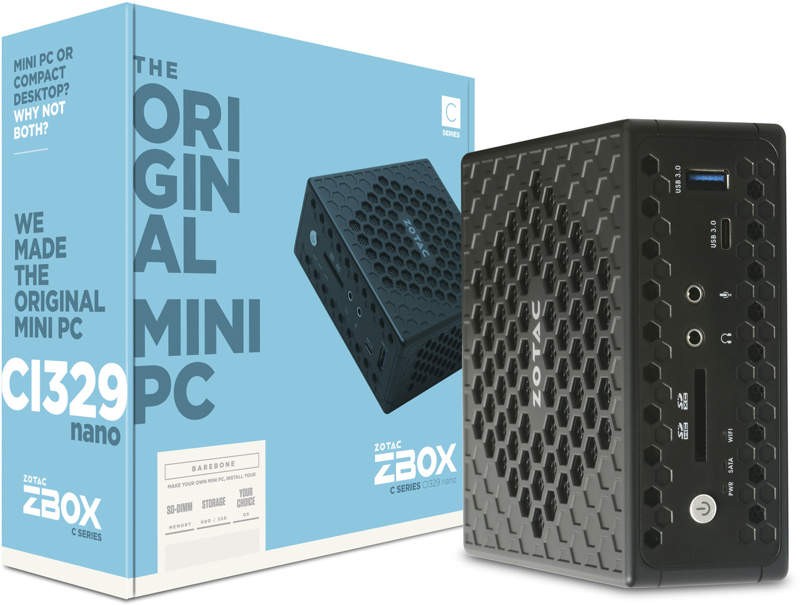

ZBOX-CI329NANO-P
$320
ZOTAC ZBOX-CI329NANO-P features Intel Celeron N4100, 8GB RAM, offering compact 0.93L design.
CPU Intel Celeron N4100
Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
RAM 8GB / 2slots
Speed 2400 MT/s
Drives 2
SATA 1×2.5"
Ethernet 2 (1G)
PSU Brick
Size 128×127×57mm
Vol 0.93L
Intel
Extreme NUC13RNGi5
$1,360
Intel Extreme NUC13RNGi5 features Intel i5 13600K, 64GB RAM, offering 10G Ethernet and USB4.
CPU Intel i5 13600K
Cores / Threads 6 / 20
Socket LGA1700
GPU Intel Intel UHD 770
RAM 64GB / 2slots
Speed 6400 MT/s
Drives 5 (3 NVMe)
SATA 2×2.5"
Ethernet 2 (10G)
PSU SFX
Size 337×318×129mm
Vol 13.82L
Asrock

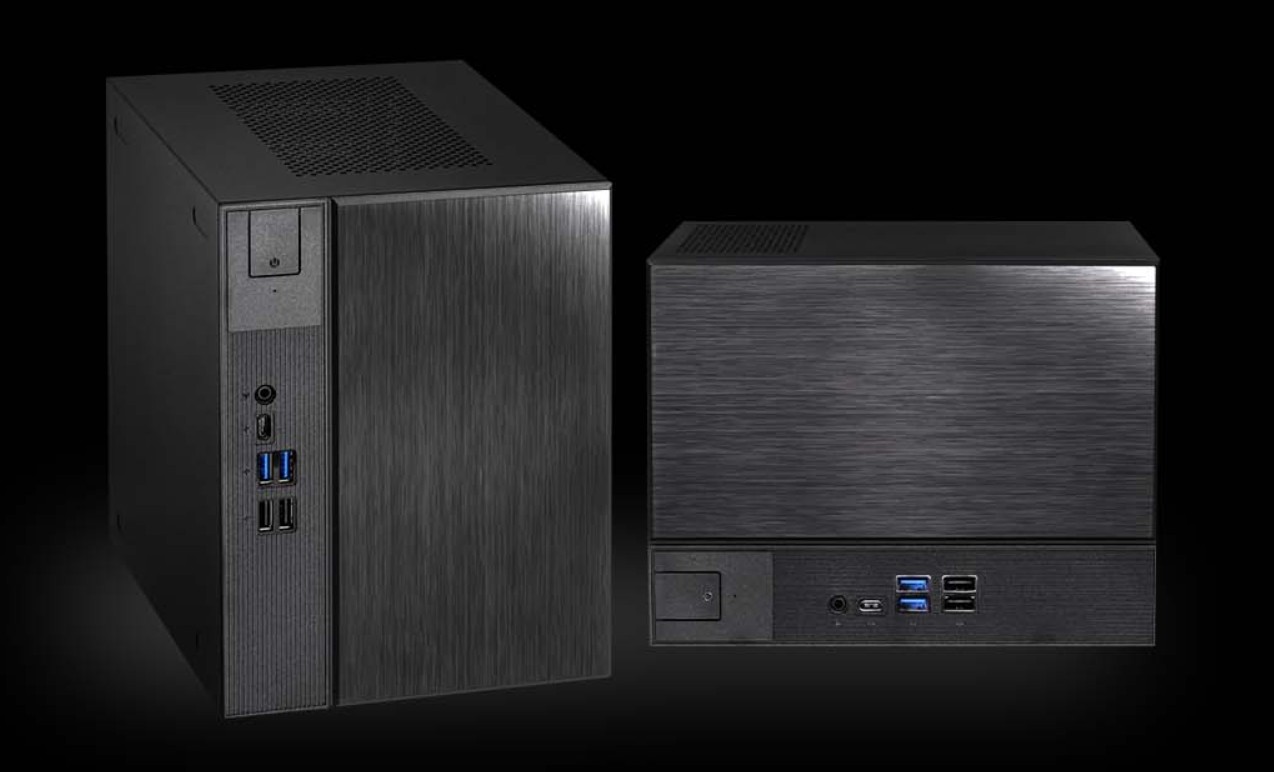

Announced DeskMeet B760
