HP
Elitedesk 800 G3
CPU i5 6500T
GPU Intel HD 530
Max RAM 32GB
Drives 2
From $60
Seller Ebay

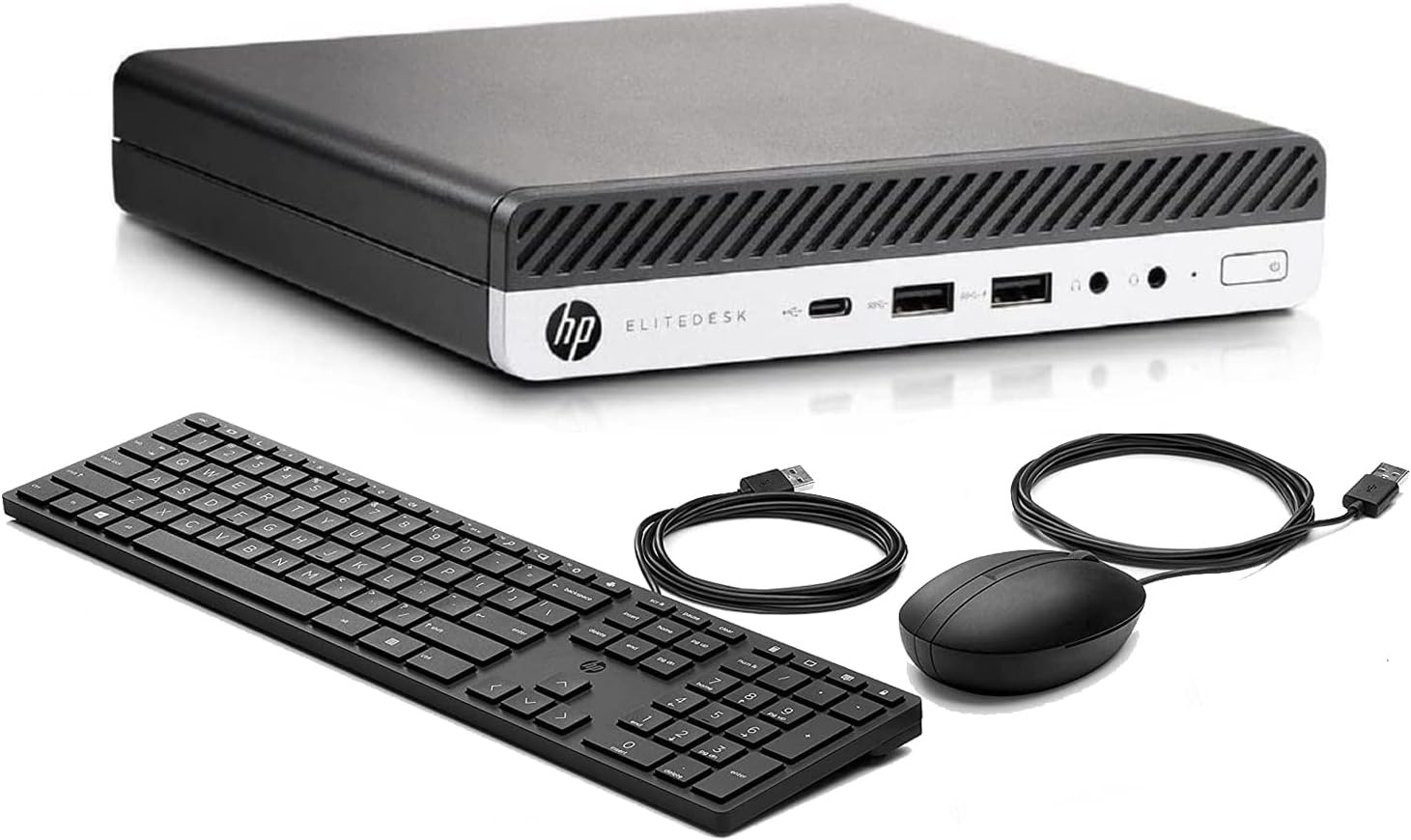

The HP Elitedesk 800 G3 is a mini PC powered by the Intel i5 6500T (6th gen). It features 4 performance cores and 4 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel HD 530. Supports up to 32GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 177 × 175 × 34mm (1.05L). Uses a Brick PSU, 35W TDP.
CPU & Performance
CPUi5 6500T
Generation6th
P-Cores4
Threads4
Single-core35
Multi-core7
SocketLGA1151
GPU
GPUIntel HD 530
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions177 × 175 × 34 mm
Volume1.05L
Fan size80mm
Warranty1 yr
Power
TDP35W
PSU typeBrick
Discover More
Morefine
S500+ 5300U
$200
Morefine S500+ 5300U features AMD r3 5300U, 64GB RAM, offering 2× 2.5G Ethernet and compact 0.87L design.
CPU AMD r3 5300U
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 6
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
PSU Brick
Size 150×145×40mm
Vol 0.87L
Shuttle
XPC Nano NC40U7

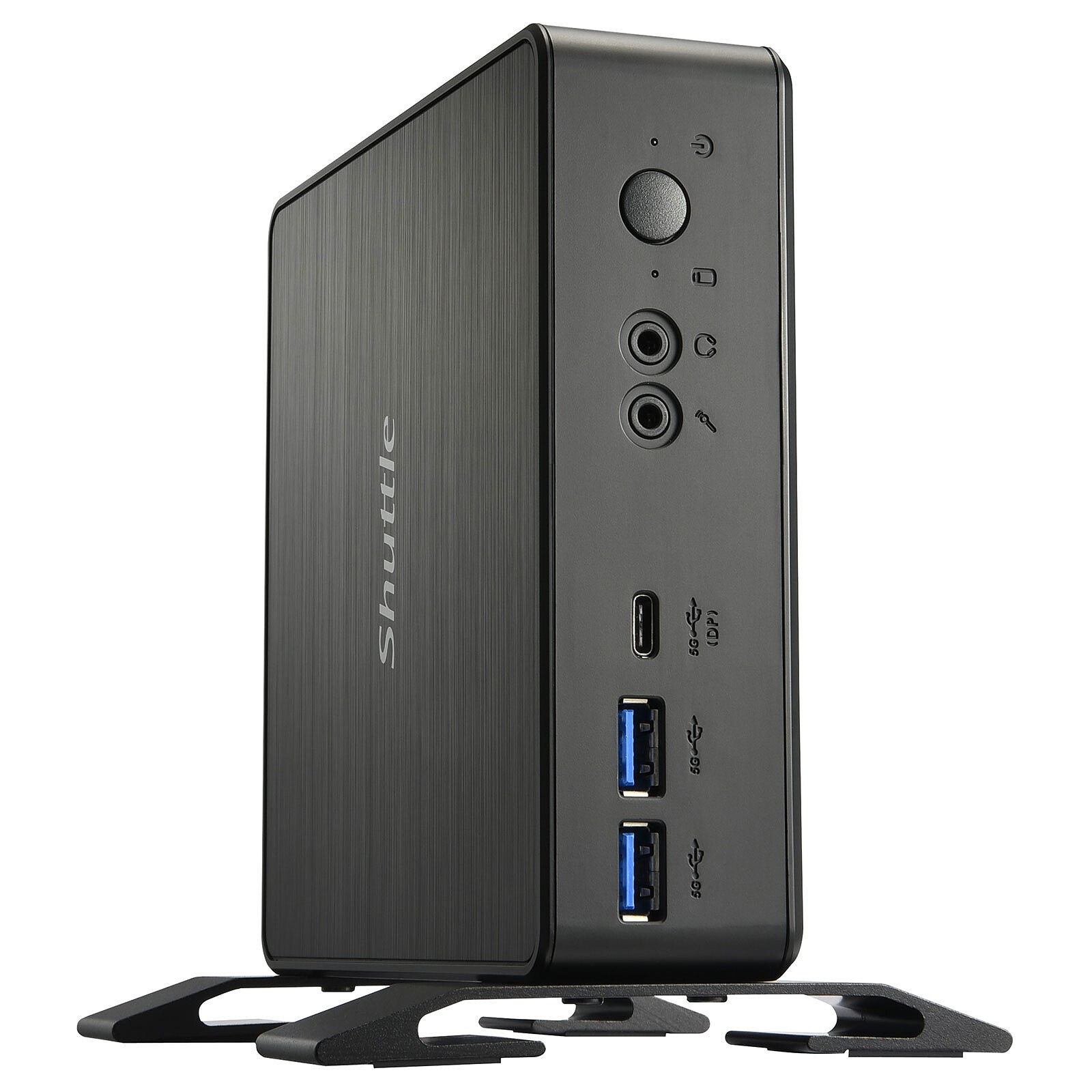

Shuttle XPC Nano NC40U7 features Intel i7 1255U.
