HP
Z2 Mini G4
CPU Xeon E-2274G
GPU Intel UHD P630
Max RAM 64GB
Drives 2
Seller Ebay

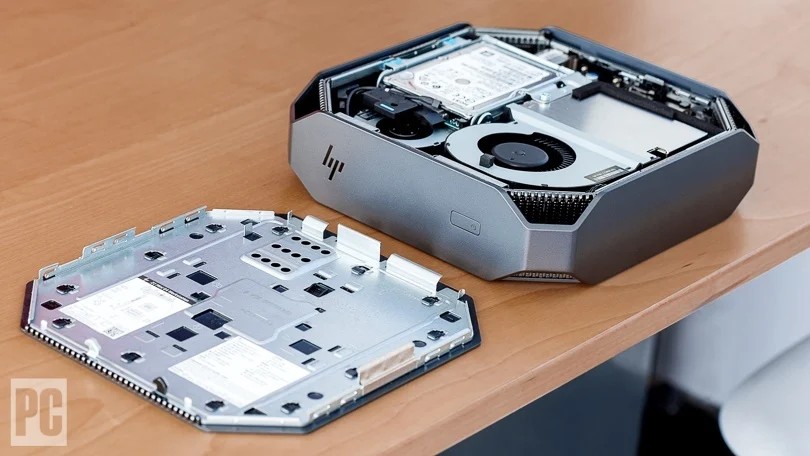

The HP Z2 Mini G4 is a mini PC powered by the Intel Xeon E-2274G (9th gen). It features 4 performance cores and 8 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel UHD P630. Supports up to 64GB of RAM across 2 slots at 2666 MT/s with ECC support. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 216 × 216 × 58mm (2.71L). Uses a Brick PSU (135W).
CPU & Performance
CPUXeon E-2274G
Generation9th
P-Cores4
Threads8
SocketLGA1151
GPU
GPUIntel UHD P630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2666 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
Physical
Dimensions216 × 216 × 58 mm
Volume2.71L
Fan size90mm
Warranty1 yr
Power
PSU typeBrick
PSU135W
Discover More
Gigabyte
GB-BLPD-4105R
Gigabyte GB-BLPD-4105R features Intel Celeron J4105.
CPU Intel Celeron J4105
Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
Asus

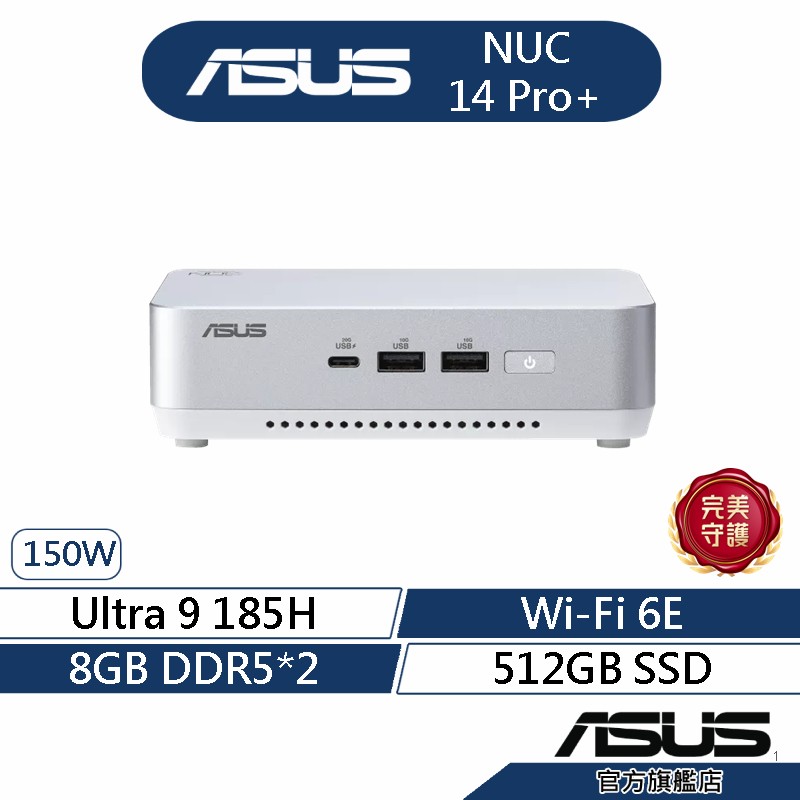

NUC 14 Pro+ RNUCRVSu9
