Intel
DC3217BY
CPU i3 3217U
GPU Intel HD 4000
Max RAM 16GB
Drives 2

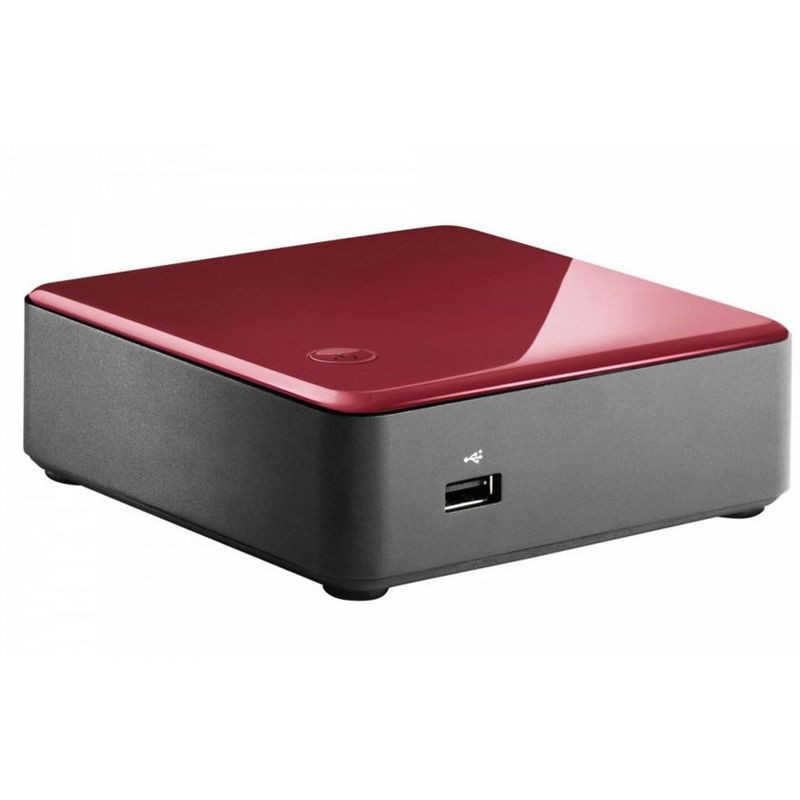

The Intel DC3217BY is a mini PC powered by the Intel i3 3217U (3rd gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel HD 4000. Supports up to 16GB of RAM across 2 slots at 1600 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Dimensions: 117 × 112 × 52mm (0.68L). Uses a Brick PSU (65W), 17W TDP.
CPU & Performance
CPUi3 3217U
Generation3rd
P-Cores2
Threads4
Single-core18
Multi-core2
Socket0
GPU
GPUIntel HD 4000
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
RAM slots2
Max speed1600 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
vProN
Physical
Dimensions117 × 112 × 52 mm
Volume0.68L
Fan size55mm
Power
TDP17W
PSU typeBrick
PSU65W
Discover More
Minisforum
NAB8 Plus
$335
Minisforum NAB8 Plus features Intel i7 12800H, 64GB RAM, offering 2× 2.5G Ethernet and OCuLink.
CPU Intel i7 12800H
Cores / Threads 6 / 20
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
Size 127×127×55mm
Vol 0.89L

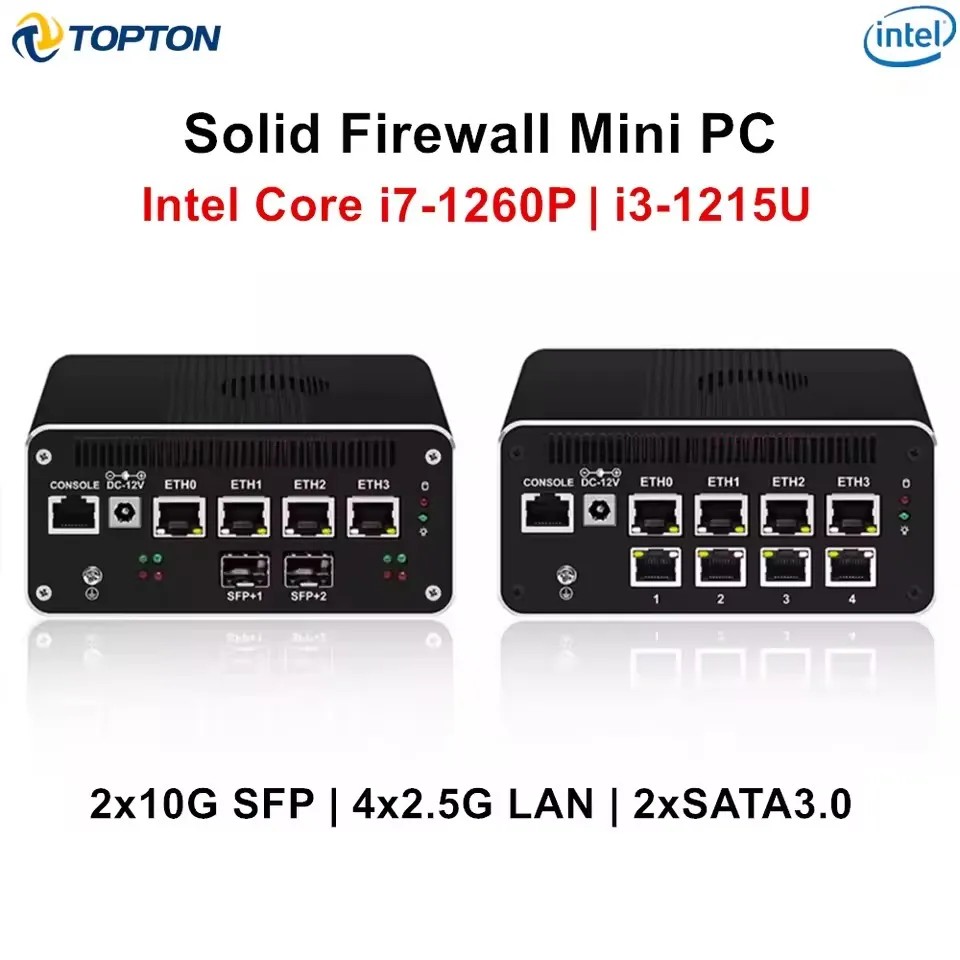

CWWK/Topton
