Intel
NUC7i3DNHE
CPU i3 7100U
GPU Intel HD 620
Max RAM 32GB
Drives 2
From $205
Seller Ebay
The Intel NUC7i3DNHE is a mini PC powered by the Intel i3 7100U (7th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel HD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 111 × 52mm (0.66L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi3 7100U
Generation7th
P-Cores2
Threads4
Single-core27
Multi-core4
Socket0
GPU
GPUIntel HD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 111 × 52 mm
Volume0.66L
Fan size55mm
Power
TDP15W
PSU typeBrick
PSU65W
Discover More

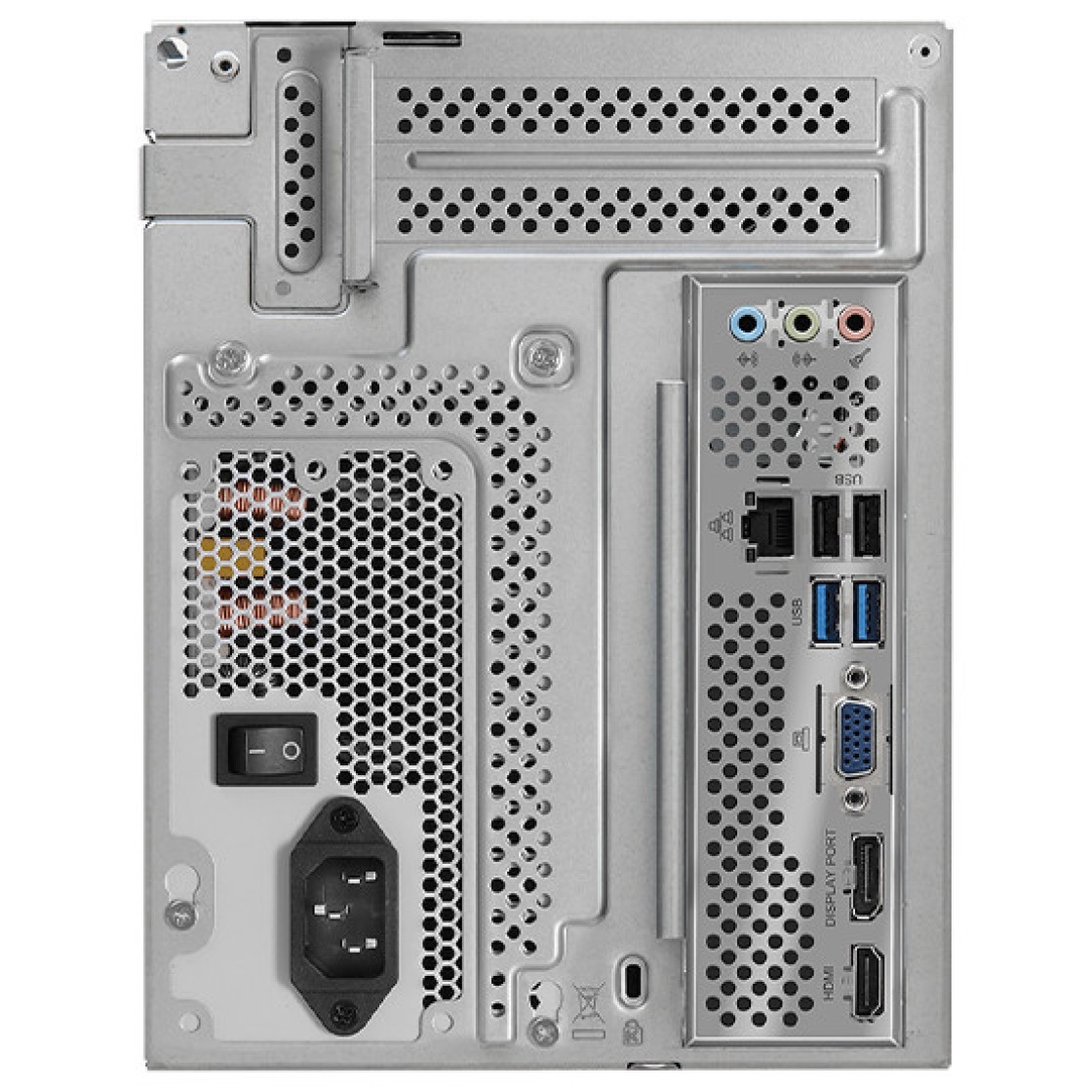

Asrock
DeskMeet B660 13700
$830
Asrock DeskMeet B660 13700 features Intel i7 13700, 128GB RAM.
CPU Intel i7 13700
Cores / Threads 8 / 24
Socket LGA1700
GPU Intel Intel UHD 770
RAM 128GB / 4slots
Speed 3200 MT/s
Drives 4 (2 NVMe)
SATA 1×3.5" / 2×2.5"
Ethernet 1 (1G)
PSU SFX
Size 219×218×168mm
Vol 8.02L

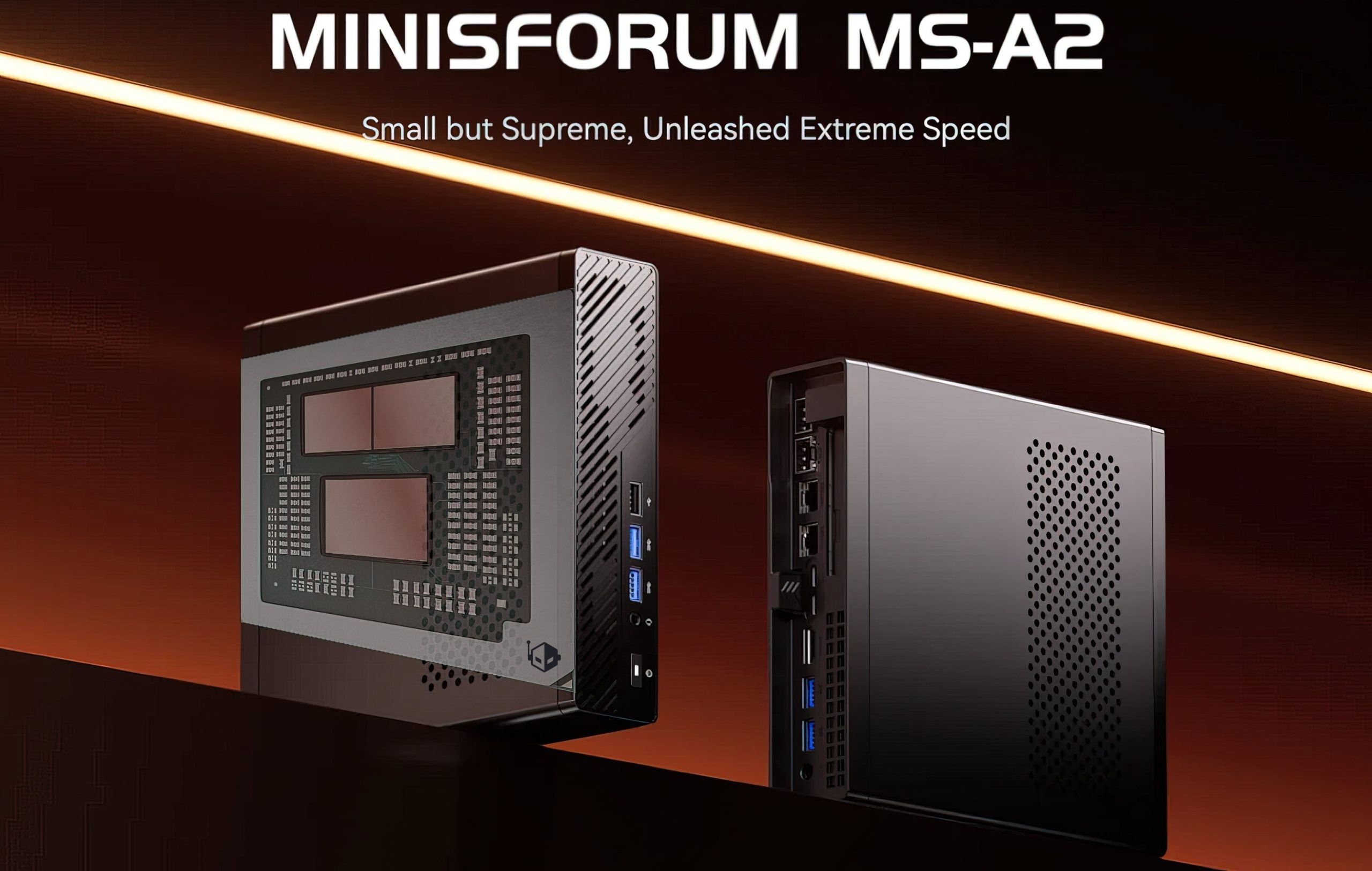

Minisforum
MS-A2
$780
Minisforum MS-A2 features AMD r9 9955HX, 96GB RAM, offering 10G Ethernet.
CPU AMD r9 9955HX
Cores / Threads 16 / 32
Socket Soldered
GPU AMD RDNA2 610M
RAM 96GB / 2slots
Speed 5600 MT/s
Drives 3 (3 NVMe)
Ethernet 4 (10G)
Size 196×189×48mm
Vol 1.78L

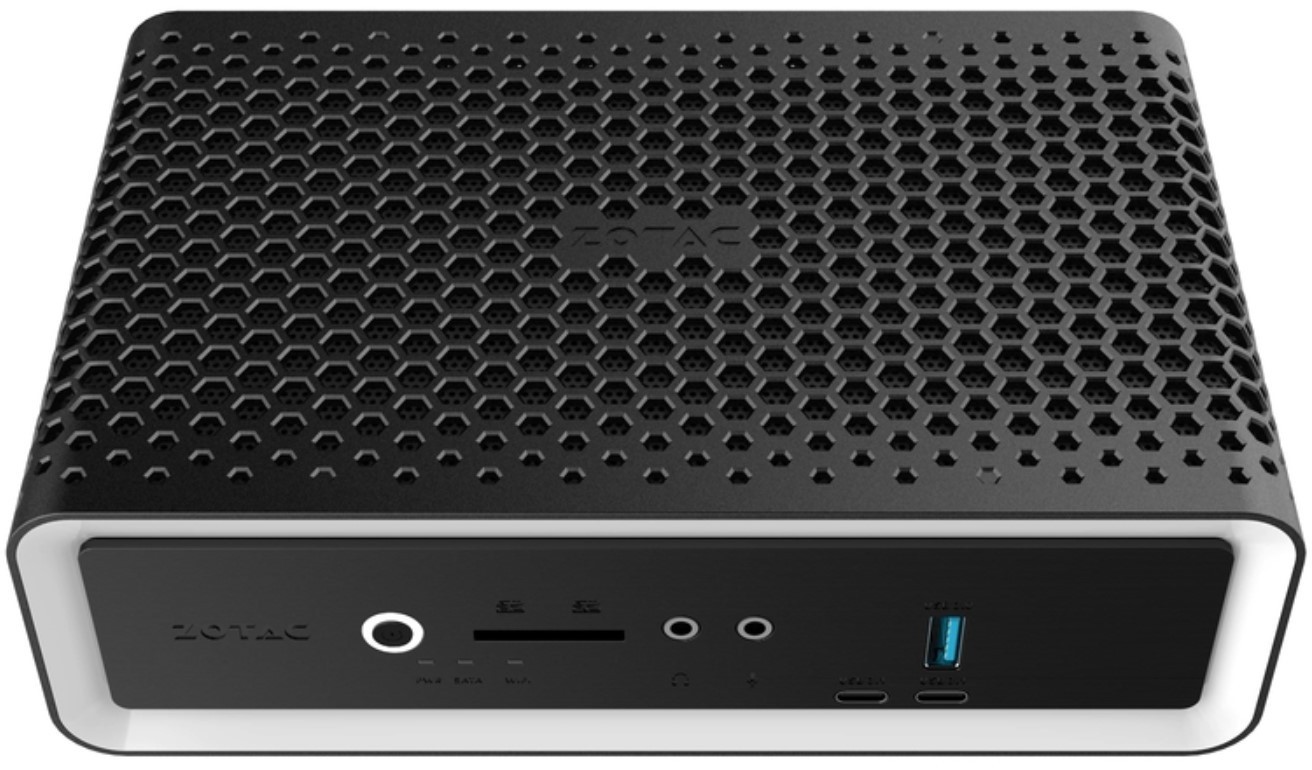

ZOTAC
