Mini PC DataBase

Minisforum MS-01-S1245

Minisforum

MS-01-S1245

CPU i5 12450H

GPU Intel UHD Xe 48EU

Max RAM 64GB

Drives 3

From $420

Seller Minisforum

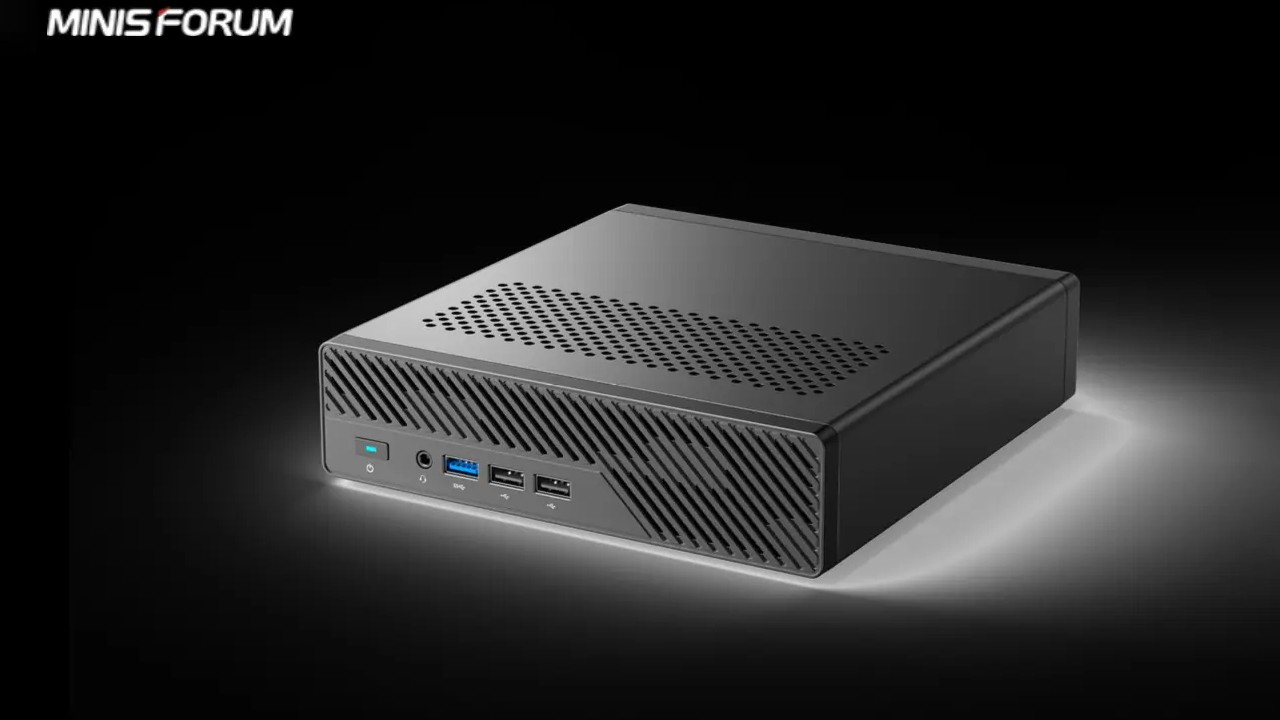

The Minisforum MS-01-S1245 is a mini PC powered by the Intel i5 12450H (12th gen). It features 4 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD Xe 48EU. Supports up to 64GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 3 drives including 3 NVMe. Connectivity includes USB4 40Gbps. Networking features 4 Ethernet ports (up to 10G). Dimensions: 196 × 189 × 48mm (1.78L).

CPU & Performance

CPUi5 12450H

Generation12th

P-Cores4

Threads12

Single-core67

Multi-core25

Socket0

GPU

GPUIntel UHD Xe 48EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots3

Gen3 x43

SD cardNo

Ports & Connectivity

USB4 40Gbps2

Max displays3

Network

Max Ethernet4G

10G ports2

2.5G ports2

vProY

Physical

Dimensions196 × 189 × 48 mm

Volume1.78L

Fan size80mm

Warranty2 yr

Power

Notes

Dec 28: PCIe 4.0X16 slot is limited to x8 bandwidth
