Mini PC DataBase

Minisforum UH125 Pro 6700XT

Minisforum

UH125 Pro 6700XT

CPU U5 125H

GPU 6700XT

Max RAM 96GB

Drives 2

From $930

Seller Amazon

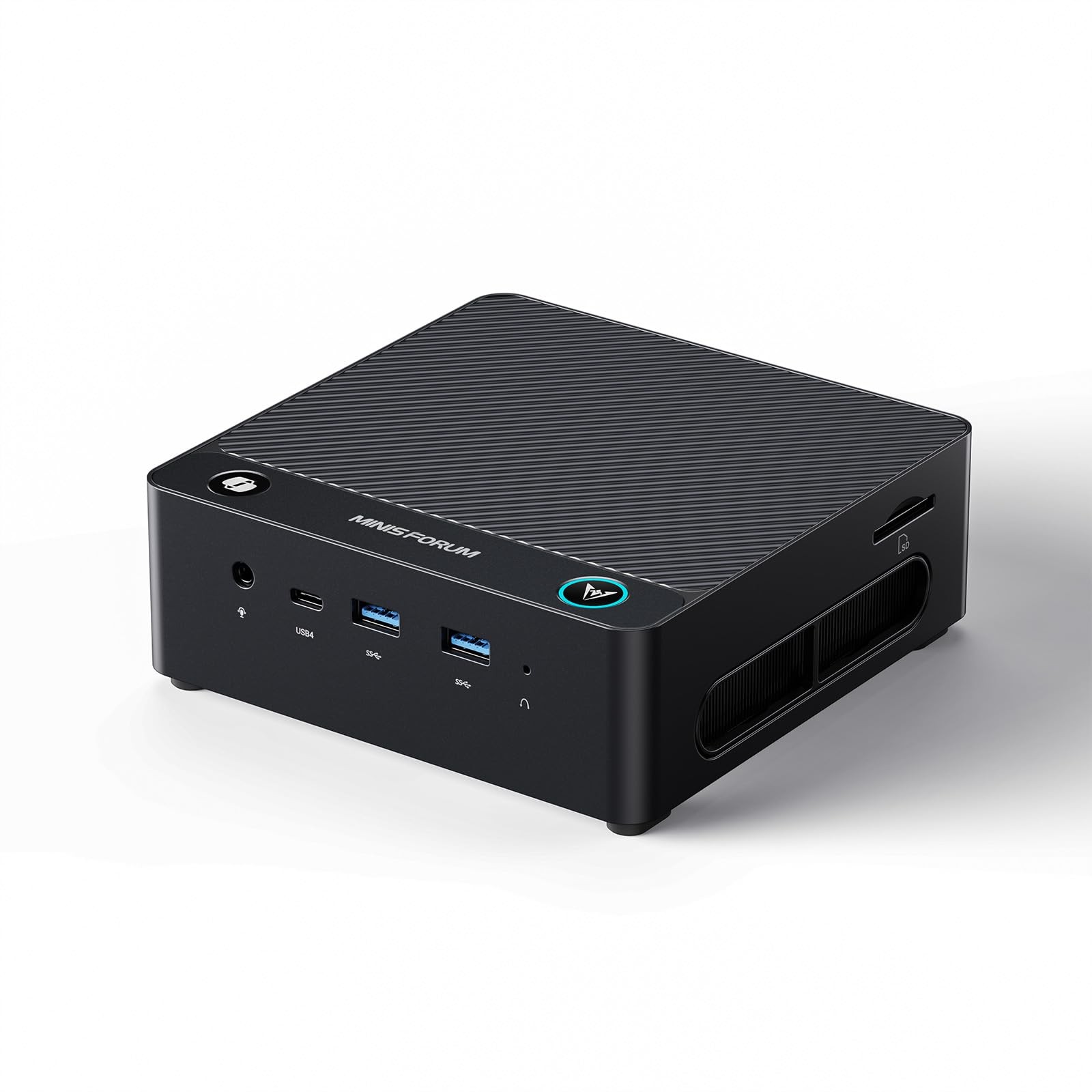

The Minisforum UH125 Pro 6700XT is a mini PC powered by the Intel U5 125H (1st gen). It features 4 performance cores and 18 threads and a soldered CPU. Graphics are handled by the integrated AMD 6700XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 5G). Dimensions: 290 × 225 × 152mm (9.92L).

CPU & Performance

CPUU5 125H

Generation1st

P-Cores4

Threads18

Single-core70

Multi-core36

Socket0

GPU

GPU6700XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

SD cardYes

Ports & Connectivity

HDMI 2.12

DP 1.43

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size85mm

Warranty2 yr

Power

PSU120W

Notes

Aug 3 2024: $640 to $614. Oculink 63 Gbps port

Discover More

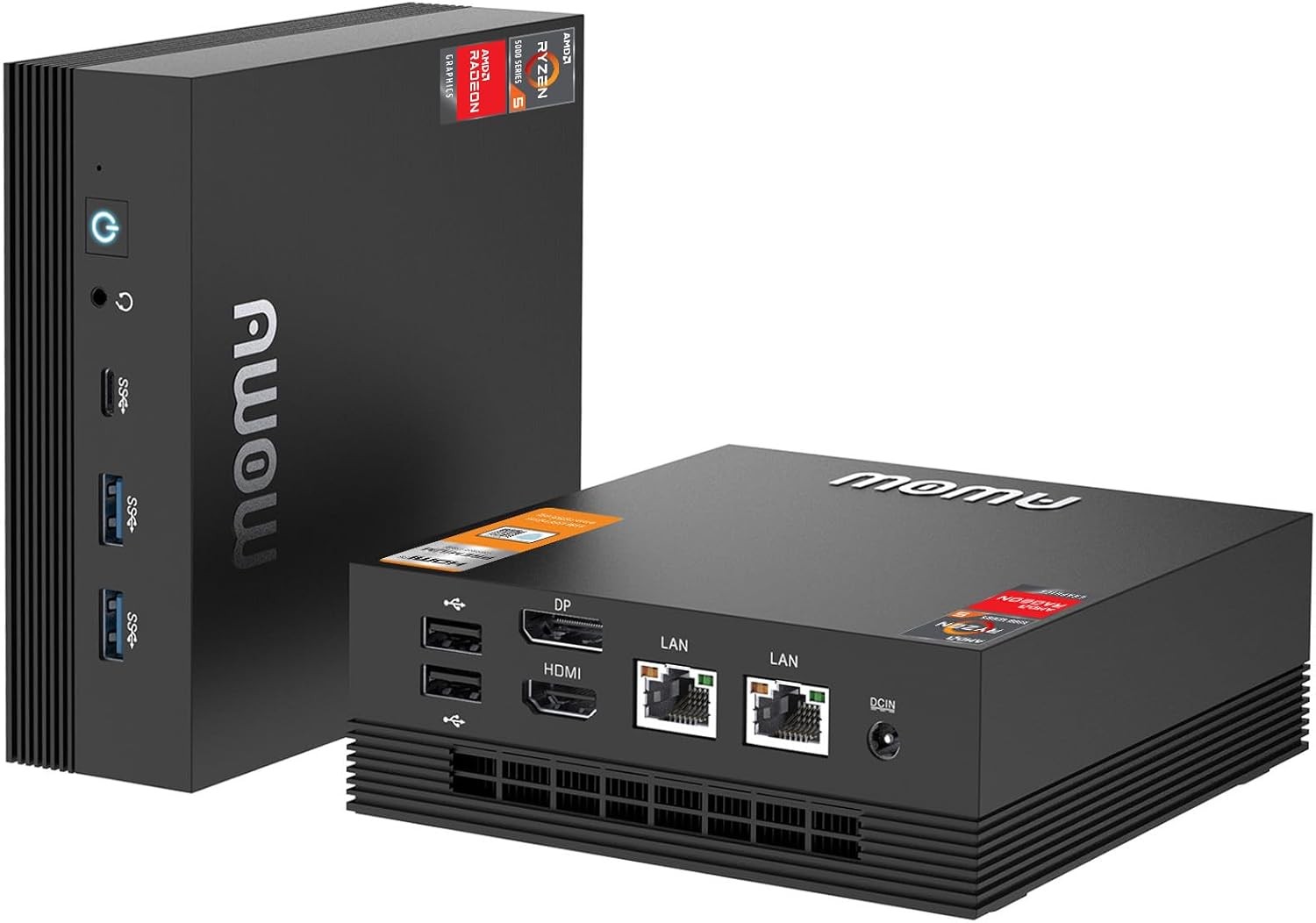

AWOW AMG10
