Mini PC DataBase

ZOTAC ZBOX-ERP74070C Magnus One

ZOTAC

ZBOX-ERP74070C Magnus One

CPU i7 14700

GPU 4070 Super

Max RAM 64GB

Drives 4

The ZOTAC ZBOX-ERP74070C Magnus One is a mini PC powered by the Intel i7 14700 (14th gen). It features 8 performance cores and 28 threads and a LGA1700 socket. Graphics are handled by the discrete NVIDIA 4070 Super. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 266 × 249 × 126mm (8.35L). Uses a SFX PSU (500W).

CPU & Performance

CPUi7 14700

Generation14th

P-Cores8

Threads28

Single-core87

Multi-core61

SocketLGA1700

GPU

GPU4070 Super

Discrete GPUYes

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardYes

Ports & Connectivity

HDMI 2.11

USB4 40Gbps1

Max displays4

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions266 × 249 × 126 mm

Volume8.35L

Fan size90mm

Warranty2 yr

Power

PSU typeSFX

PSU500W

Notes

Black Case

Discover More

Minisforum NUCG5

NUCG5

Minisforum NUCG5 features Intel i5 1240P, 64GB RAM, offering USB4 and compact 0.75L design.

CPU Intel i5 1240P

Cores / Threads 4 / 16

Socket Soldered

GPU Intel Iris Xe 80EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (2.5G)

Size 110×110×62mm

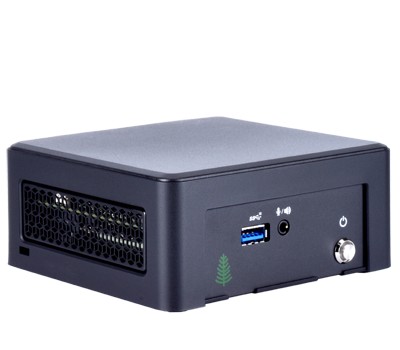

Simply NUC LLM1r3PK

LLM1r3PK

Simply NUC LLM1r3PK features AMD r3 R1305G, offering compact 0.71L design.

CPU AMD r3 R1305G

Cores / Threads 2 / 4

Socket Soldered

Size 118×113×53mm

GMKtec EVO-X1 32GB 7900XTX

EVO-X1 32GB 7900XTX

GMKtec EVO-X1 32GB 7900XTX features AMD r9 HX 370, 32GB RAM, offering 2× 2.5G Ethernet and OCuLink.

CPU AMD r9 HX 370

Cores / Threads 12 / 24

Socket Soldered

GPU AMD 7900XTX

Speed 7500 MT/s

Drives 2 (2 NVMe)

Ethernet 2 (2.5G)

Size 290×225×152mm
